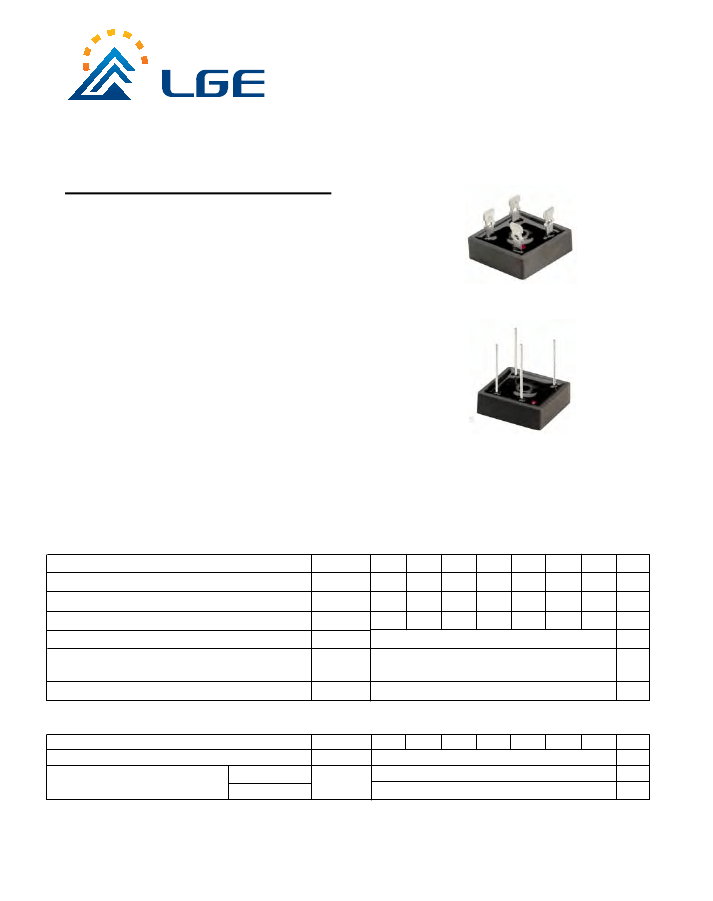

BR3505-BR3510
Single-phase Silicon Bridge Rectifier
VOLTAGE RANGE 50 to 1000
Volts CURRENT 35 Amperes
Features
*
*
*
*
Superior thermal desing
400 amperes surge rating
//
1/4 universal faston terminal
Hole thru for # 8 screw
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
BR-35
BR-35W
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Output Current at Tc = 55
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Operating and Storage Temperature Range
T
J,
T
STG
-55 to + 175
0
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
BR3505
50
35
50
BR351
100
70
100
BR352
200
140
200
BR354
400
280
400
35.0
400
BR356
600
420
600
BR358
800
560
800
BR3510
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
C
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Forward Voltage Drop per element at 17.5A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
NOTE: Suffix ”W” for wire type
@T
A
= 25 C
@T
C
= 100 C
o
o
o
SYMBOL
V
F
I
R
BR3505
BR351
BR352
BR354
1.1
10
0.5
BR356
BR358
BR3510 UNITS
Volts
uAmps
mAmps
2001-6
http://www.luguang.cn
mail:lge@luguang.cn
BR3505-BR3510
Single-phase Silicon Bridge Rectifier
RATING AND CHARACTERISTIC CURVES ( BR3505 THRU BR3510 )
FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT, (A)
FIG. 2 - TYPICAL FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT, (A)
500
8.3ms Single Half Sine-Wave
(JEDEC Method)
50
40
400
300
30
200
20
Single Phase Half Wave
60Hz Indutive or
Resistive Load
100
10
0
0
0
1
2
4 6 8 10
20
40 60 80100
NUMBER OF CYCLES AT 60Hz
50
100
CASE TEMPERATURE, (
150
)
175
INSTANTANEOUS FORWARD CURRENT, (A)
CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT, (uA)
FIG. 3- TYPICAL INSTANTANEOUS FORWARD
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
10
10
1.0
TJ = 25
1.0
TJ = 25
Pulse Width = 300us
1% Duty Cycle
.1
.1
.01
1.2 1.3
.6
.7
.8
.9
1.0
1.1
INSTANTANEOUS FORWARD VOLTAGE, (V)
.452
MAX.
(11.5)
.480 (12.2)
.425 (10.8)
.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE, ( % )
.452
MAX.
(11.5)
.042 (1.1)
DIA.
.080 (2.0)
TYP.
.591
MAX.
(15.0)
1.181 (30.0)
1.102 (28.0)
.673 (17.1)
.633 (16.1)
HOLE FOR
NO. 8 SCREW
1.181 (30.0)
1.102 (28.0)
HOLE FOR NO.
8 SCREW
1.181 (30.0)
1.102 (28.0)
.468 (11.9)
.429 (10.9)
AC
.732 (18.6)
.692 (17.6)
AC
1.181 (30.0)
1.102 (28.0)
.673 (17.1)
.633 (16.1)
AC
.732 (18.6)
.692 (17.6)
AC
.582 (14.8)
.543 (13.8)
.033 x .250
(0.8 x 6.4)
.732 (18.6)
.692 (17.6)
BR-35
BR-35W
