BZT03D43 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Zener diode> BZT03D43

BZT03D43: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor Zener diode; File Size219KB，4 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

BZT03D43 Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE

BZT03D43 Parametric

Parameter Name	Attribute value
Case Style	DO-15
Pd（W）	1.3
VZ(Min)	38.7
VZ(Nom)	43
VZ(Max)	47.3
IZT(mA)	10
IR(uA)	1.0
VR(V)	31
class	Diodes

Preview

Download Datasheet

View All

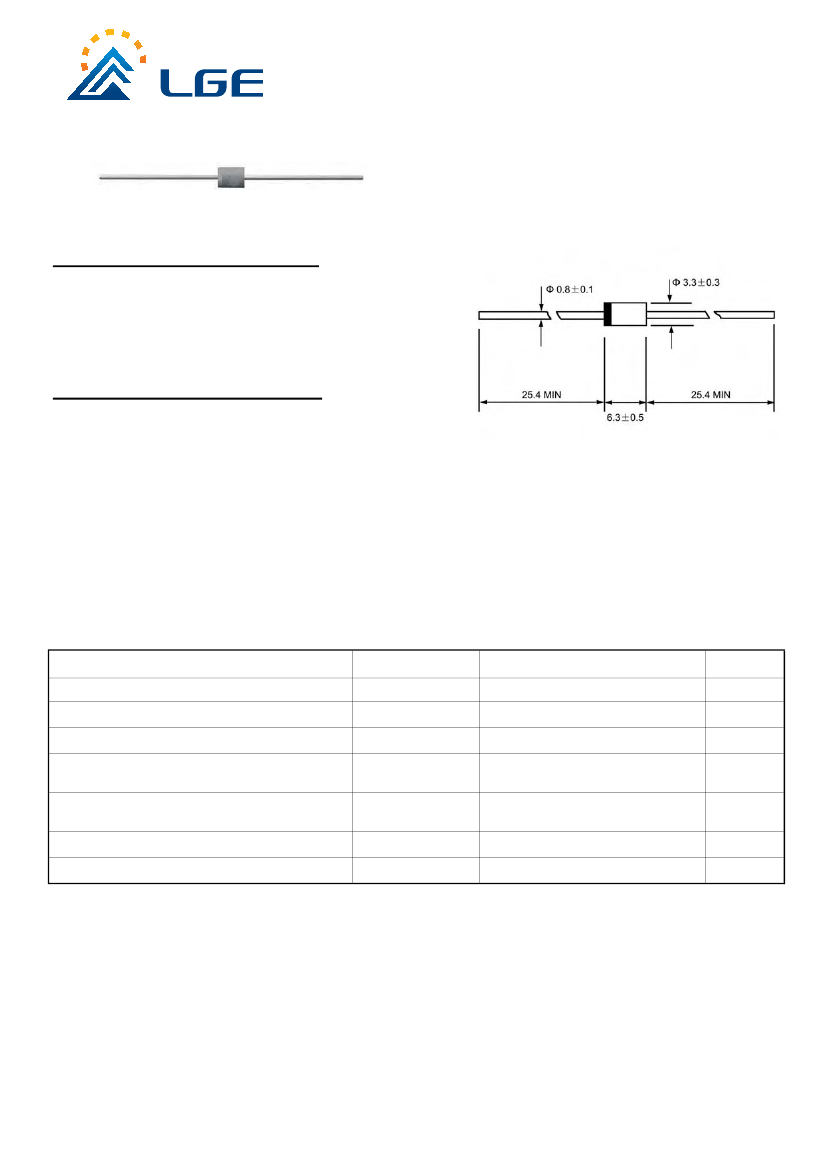

BZT03 Series

Zener Diodes

6.2 -- 270 V

POWER DISSIPATION:

3.25

DO -- 15

Features

◇

Hermetically sealed package

Clamping time in picoseconds

Mechanical Data

◇

Case:JEDEC DO-15

Terminals: Axial leads solderable per MIL-

STD-202,Method 208

Polarity: Color band denotes cathods end

Weight: 0.014 ounces,0.39 grams

Mounting position: any

Dimensions in millimeters

Maximum Ratings and Thermal Characteristics

Parameter

Total power dissipation at T

=25℃　

Power dissipation at T

=45℃

Forward voltage @I

=0.5A

Maximum thermal resistance

junction to ambient (Note 1)

Peak reverse power dissipation

tp=100µs square wave

Junction temperature

Storage temperature range

Note:1.On PC board with spacing 25mm

=25℃ unless otherwise noted)

Symbol

tot

θJA

ZSM

STG

Value

3.25

1.3

1.2

100

600

150

-55 to +150

Unit

℃/W

℃

http://www.luguang.cn

mail:lge@luguang.cn
