8
7
6
5
4
REV
C
D
E
F
3
DESCRIPTION
ECN 1086 ADDED 100' LENGTH
2
REVISIONS
DATE
1
APPROVED
MCCORMICK
MCCORMICK
MCCORMICK
D. PARHAM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
02/28/02
04/30/02
04/05/04
CORRECTED PIN CALLOUTS ON CONNECTOR
ECN 1711 ADDED COLOR CODE TO TABLE
12/02/05
ECN#2264: UPDATED FORMAT & CABLE DESC. CORRECTED COLOR PRS 14 & 15.
D
LENGTH
D
2X 4-40UNC-2A
"J1"
"J2"
2X CATEGORY 3 COMPLIANT
THERMOPLASTIC HOOD
C
C
2X 50 POSITION TELCO
FEMALE CONNECTOR
F
UL LISTED CATEGORY 3 CABLE (OR BETTER)
25 TWISTED PAIRS
24 AWG SOLID COPPER CONDUCTORS
F
NOTES:
B
1.0
ELECTRICAL:
1.1 CABLE ASSEMBLY IS CATEGORY 3 RATED.
1.2 SEE SHEET 2 FOR WIRING MAP.
2.0
PACKAGING:
2.1 THE PRODUCT SHALL BE PRESERVED & PACKAGED IN A MANNER WHICH WILL
AFFORD ADEQUATE PROTECTION AGAINST CORROSION, DETERIORATION,
AND PHYSICAL DAMAGE DURING SHIPMENT.
2.2 INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG
DEPICTED ON
1AN01-001-OD1
. MARK EACH BAG PER
LSP-010-2
.
TABLE A
LENGTH
MODEL
FEET METERS
TDC350FF-5
5
1.52
TDC350FF-10
10
3.05
TDC350FF-15
15
4.57
TDC350FF-25
25
7.62
TDC350FF-50
50
15.24
TDC350FF-100 100
30.48
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
PRODUCT DESCRIPTION
09/21/2001
09/21/2001

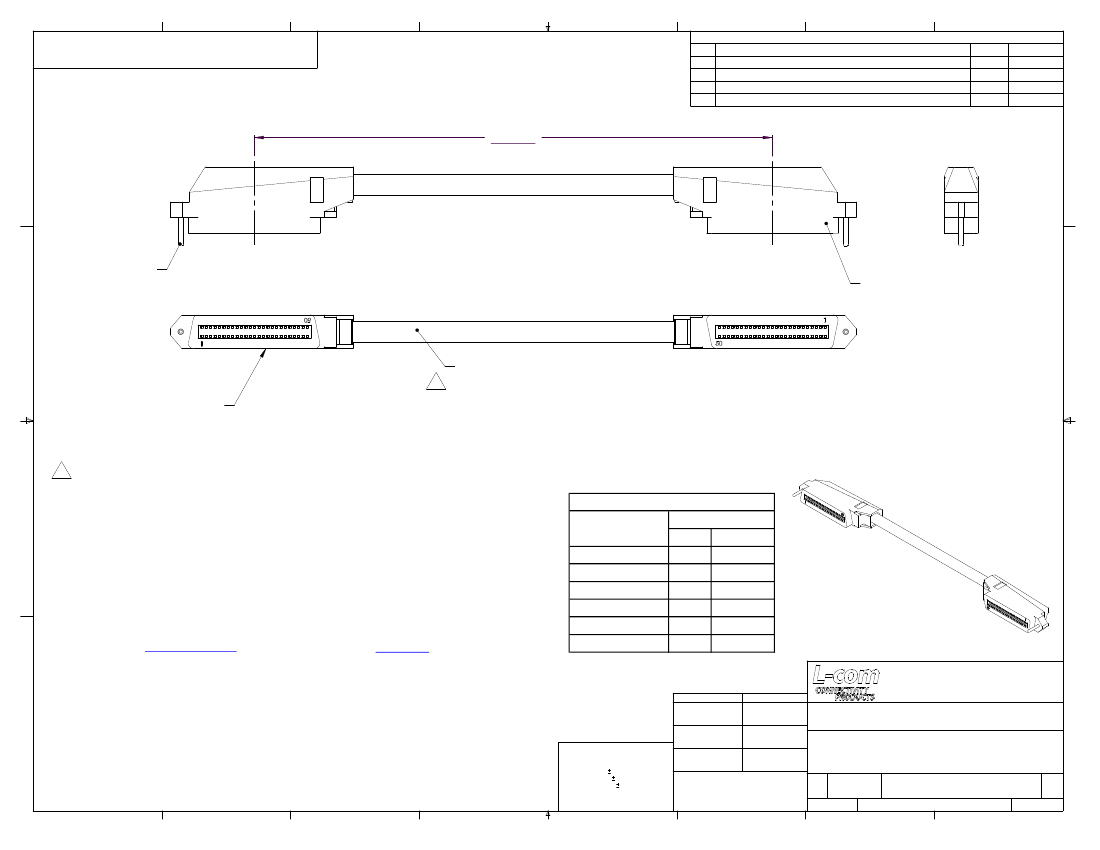

DRAWING TITLE
B
3.0
WORKMANSHIP
3.1 CABLE ASSEMBLIES SHALL BE MANUFACTURED IN SUCH A MANNER AS TO BE
UNIFORM IN QUALITY AND SHALL BE FREE FROM BURRS, CRAZING, CRACKS,
VOIDS, PIMPLES, CHIPS, BLISTERS, PINHOLES, SHARP CUTTING EDGES, AND OTHER
A
DEFECTS THAT WILL ADVERSELY AFFECT LIFE, SERVICEABILITY, OR APPEARANCE.
4.0
VISUAL AND MECHANICAL
4.1. CABLE ASSEMBLIES SHALL BE INSPECTED TO VERIFY COMPLIANCE TO THIS DRAWING.
5.0
ENVIRONMENTAL
5.1 OPERATING TEMPERATURE RANGE: -20°C TO 60°C
APPROVALS
DRAWN BY
C.MCCORMICK
CHECKED BY
ENG
DATE
CABLE CAT 3 CN50 F/F
A
UNLESS OTHERWISE SPECIFIED, APPROVED BY
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
09/21/2001
R.CARRICK
.X .1
.XX .05
CONFIGURATION DETAILS OF
.XXX .005
UNDIMENSIONED FEATURES
CABLE LENGTH TOLERANCE
MAY VARY
<300" ±5% >300" ±2%
OUTLINE DRAWING
SIZE
FSCM NO.
A
43321
2
DWG. NO.
REV.
TDC350FF-5-OD1
TDC350FF-5-OD1.SLDDRW
SCALE: NONE CAD FILE:
SHEET 1 OF 2
F
8
7
6
5
4
3
1
8
7
6
5
4
REV
C
D
E
F
3
DESCRIPTION
ECN 1086 ADDED 100' LENGTH
2
REVISIONS
DATE
1
APPROVED
MCCORMICK
MCCORMICK
MCCORMICK
D. PARHAM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
02/28/02
04/30/02
04/05/04
12/02/05
CORRECTED PIN CALLOUTS ON CONNECTOR
ECN 1711 ADDED COLOR CODE TO TABLE
ECN#2264: UPDATED FORMAT & CABLE DESC. CORRECTED COLOR PRS 14 & 15.
D
D
WIRING MAP
PAIR
1
2
C
3
4
5
6
7
8
B
9
10
11
12
13
"J1"
1
26
2
27
3
28
4
29
5
30
6
31
7
32
8
33
9
34
10
35
11
36
12
37
13
38
COLOR
BLUE/WHITE
WHITE/BLUE
ORANGE/WHITE
WHITE/ORANGE
GREEN/WHITE
WHITE/GREEN
BROWN/WHITE
WHITE/BROWN
GRAY/WHITE
WHITE/GRAY
BLUE/RED
RED/BLUE
ORANGE/RED
RED/ORANGE
GREEN/RED
RED/GREEN
BROWN/RED
RED/BROWN
GRAY/RED
RED/GRAY
BLUE/BLACK
BLACK/BLUE
ORANGE/BLACK
BLACK/ORANGE
GREEN/BLACK
BLACK/GREEN
"J2"
1
26
2
27
3
28
4
29
5
30
6
31
7
32
8
33
9
34
10
35
11
36
12
37
13
38
PAIR
14
15
16
17
18
19
20
21
22
23
24
25
"J1"
14
39
15
40
16
41
17
42
18
43
19
44
20
45
21
46
22
47
23
48
24
49
25
50
COLOR
BROWN/BLACK
BLACK/BROWN
GRAY/BLACK
BLACK/GRAY
BLUE/YELLOW
YELLOW/BLUE
ORANGE/YELLOW
YELLOW/ORANGE
GREEN/YELLOW
YELLOW/GREEN
BROWN/YELLOW
YELLOW/BROWN
GRAY/YELLOW
YELLOW/GRAY
BLUE/PURPLE
PURPLE/BLUE
ORANGE/PURPLE
PURPLE/ORANGE
GREEN/PURPLE
PURPLE/GREEN
BROWN/PURPLE
PURPLE/BROWN
GRAY/PURPLE
PURPLE/GRAY
"J2"
14
39
15
40
16
41
17
42
18
43
19
44
20
45
21
46
22
47
23
48
24
49
25
50
F
F
C
B
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
PRODUCT DESCRIPTION
A
A
CABLE CAT 3 CN50 F/F
DRAWING TITLE
OUTLINE DRAWING
SIZE
FSCM NO.
DWG. NO.
REV.
A
43321
SCALE: NONE CAD FILE:
TDC350FF-5-OD1
TDC350FF-5-OD1.SLDDRW
F
SHEET 2 OF 2
8
7
6
5
4
3
2
1
