MM-2P2-015-161-45LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> MM-2P2-015-161-45LF

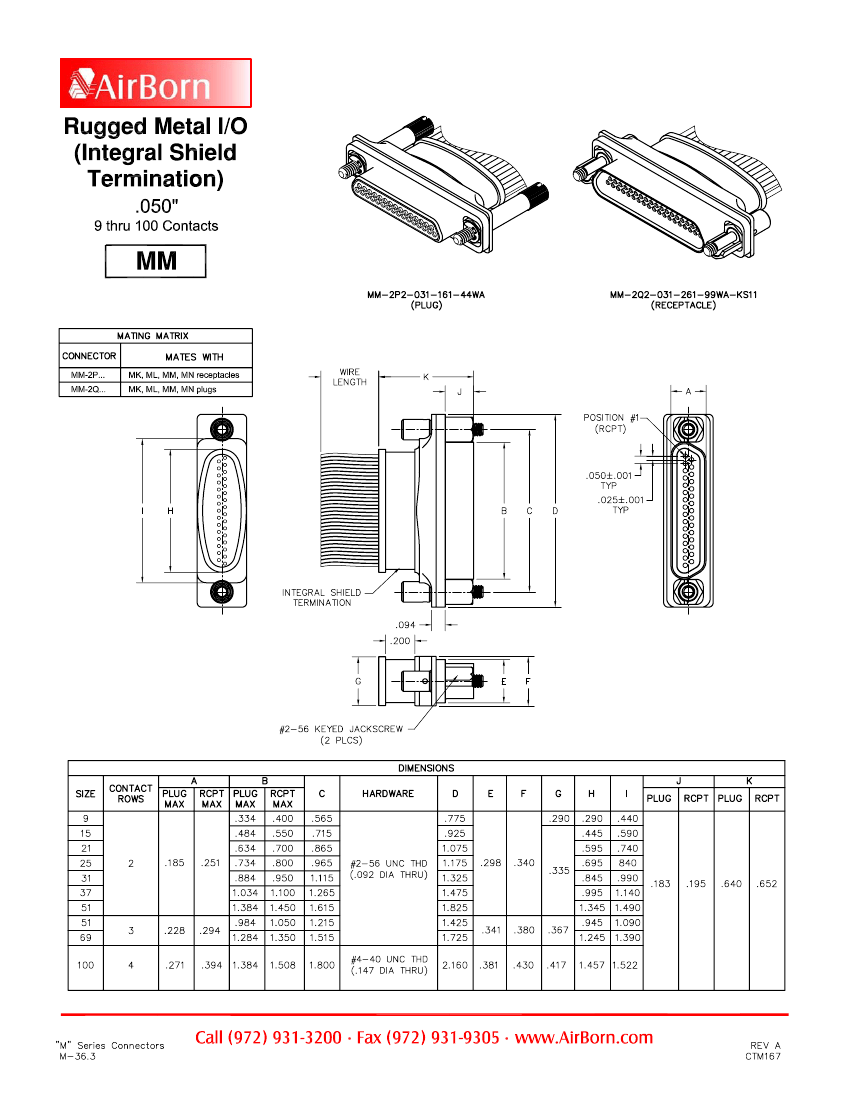

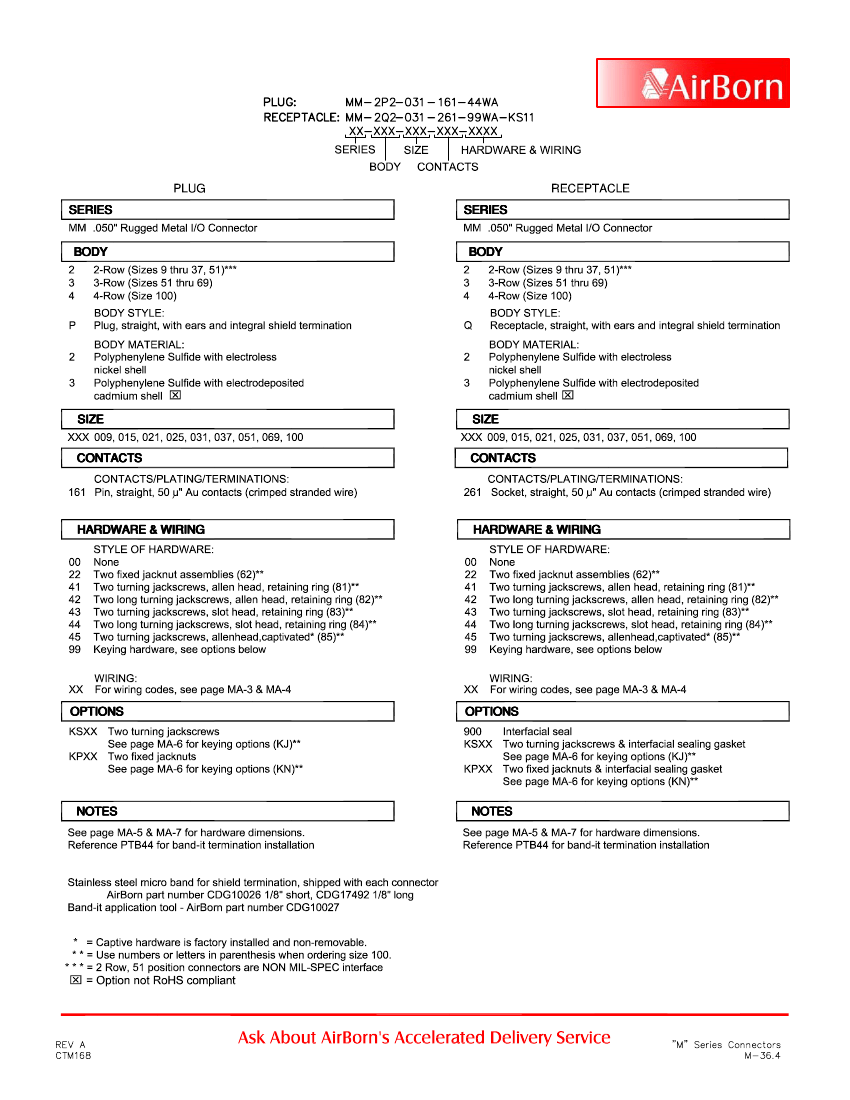

MM-2P2-015-161-45LF: DescriptionD Type Connector, 15 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size2MB，4 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

MM-2P2-015-161-45LF Overview

D Type Connector, 15 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Locking, Plug

MM-2P2-015-161-45LF Parametric

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant
body width	0.34 inch
subject depth	0.457 inch
body length	0.925 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	26 mΩ
Contact style	RND PIN-SKT
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	MM
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	50u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	ELECTROLESS NICKEL
Termination type	CRIMP
Total number of contacts	15
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	2.78 N

Preview

Download Datasheet

View All

MM-2P2-015-161-45LF Related Products

	MM-2P2-015-161-45LF	MM-2Q2-015-261-425C	MM-2Q2-021-261-425C	MM-2Q2-025-261-45LF
Description	D Type Connector, 15 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Locking, Plug	D Type Connector, 15 Contact(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Receptacle	D Type Connector, 21 Contact(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Receptacle	D Type Connector, 25 Contact(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compli	compli	compliant
body width	0.34 inch	0.34 inch	0.34 inch	0.34 inch
subject depth	0.457 inch	0.457 inch	0.457 inch	0.457 inch
body length	0.925 inch	0.925 inch	1.075 inch	1.175 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU	AU	AU	AU
Contact point gender	MALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	26 mΩ	26 mΩ	26 mΩ	26 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	MM	MM	MM	MM
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	50u inch	50u inch	50u inch	50u inch
Rated current (signal)	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	15	15	21	25
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG
Evacuation force-minimum value	2.78 N	2.78 N	2.78 N	2.78 N
