ASE4-FREQ-E-J-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASE4-FREQ-E-J-T

ASE4-FREQ-E-J-T: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 50MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size691KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE4-FREQ-E-J-T Overview

CMOS Output Clock Oscillator, 1MHz Min, 50MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASE4-FREQ-E-J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	ASE4
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	1.575 V
Minimum supply voltage	1.425 V
Nominal supply voltage	1.5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

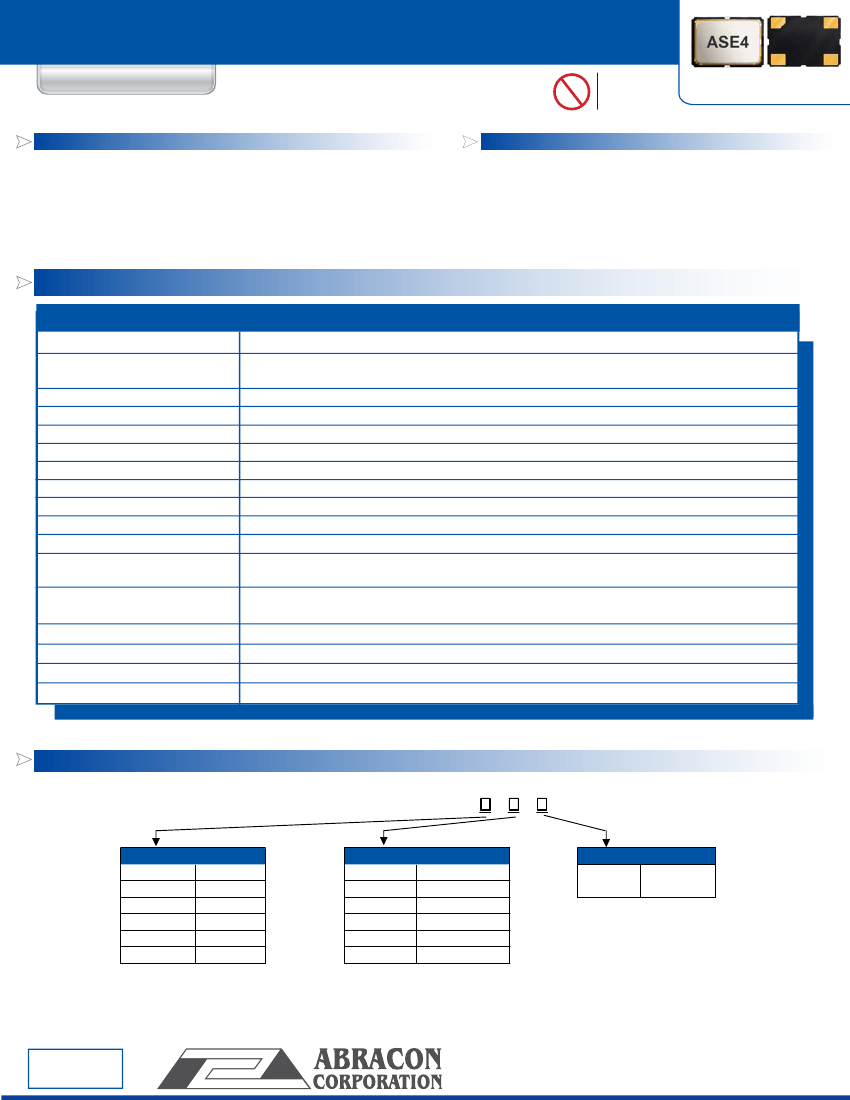

1.5V CMOS COMPATIBLE 3.2 x 2.5 SMD

CRYSTAL CLOCK OSCILLATOR

ASE4 SERIES

RoHS

Compliant

APPLICATIONS:

• Ideal for high density SMT

• IR reflow capable

• Tight stability option

• CCD clock for VTR camera

• Equipment connected to PC or PC cards

• Thin equipment

• Mobile communications

• PDA

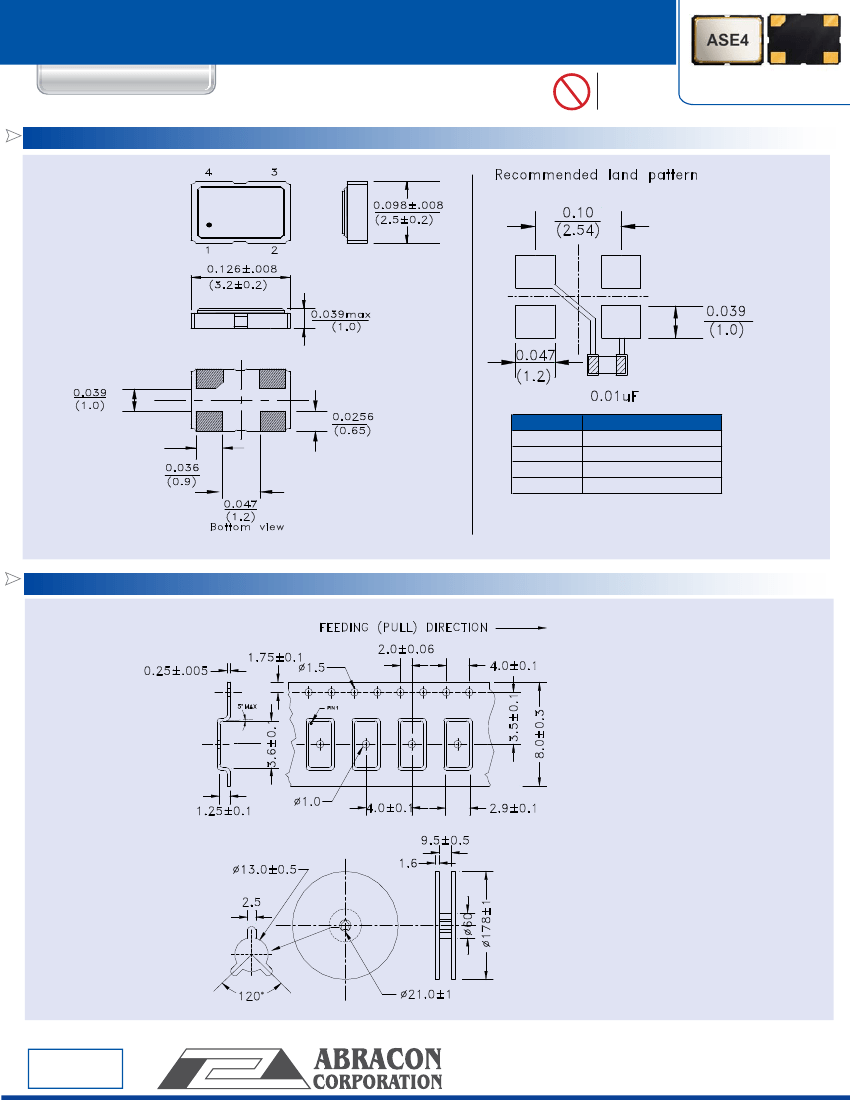

3.2 x 2.5 x 1.0 mm

| | | | | | | | | | | | | | |

FEATURES:

• Compact and low in height

• Low current consumption

• Tri state function

• 1.5Vdc supply voltage ideal

for low power ASIC's

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency range:

Standard Frequency:

Operating temperature:

Storage temperature:

Overall frequency stability:

Supply voltage (Vdd):

Current Consumption:

Symmetry:

Rise and fall time (Tr/Tf):

Output load:

Output voltage:

Tri-state function :

Peak to Peak Jitter :

RMS Jitter :

Stand-by current:

Aging:

ASE4 Series

1MHz ~ 50 MHz

(Available frequency is limited. Please contact ABRACON.)

25MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 50 ppm max. (see options)

1.5 Vdc ± 5

10mA max (25MHz)

45/55 % @ 0.75V

10 ns max (25MHz)

15pF ± 10

VOH = 0.9 * Vdd min.

VOL = 0.1 * Vdd max.

"1" (VIH >= 1.35 Vdd) or open: Oscillation

"0" (VIL < 0.15 Vdd) : Hi Z

45.0ps (Typical)(Reference only. Contact ABRACON for the Jitter)

4.0ps (Typical)(Reference only. Contact ABRACON for the Jitter)

10μA max.

± 5 ppm/first year

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE4 - Frequency -

Packaging

Tape and

Reel

Operating Temp.

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Contact ABRACON for

Overall Frequency Stability

J(*)

±20ppm

±25ppm

±30ppm

±35ppm

±40ppm

±50ppm

* Temp options I, D, E and -10° C to + 70° C only

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 11.18.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
