LQN21A15NK04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQN21A15NK04

LQN21A15NK04: DescriptionGeneral Purpose Inductor, 0.015uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805; CategoryPassive components inductor; File Size375KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

LQN21A15NK04 Overview

General Purpose Inductor, 0.015uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805

LQN21A15NK04 Parametric

Parameter Name	Attribute value
Maker	Murata
package instruction	CHIP, 0805
Reach Compliance Code	unknown
ECCN code	EAR99
core material	AIR
DC Resistance	0.12 Ω
Nominal inductance(L)	0.015 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.63 A
self resonant frequency	2700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	100 MHz
Tolerance	10%

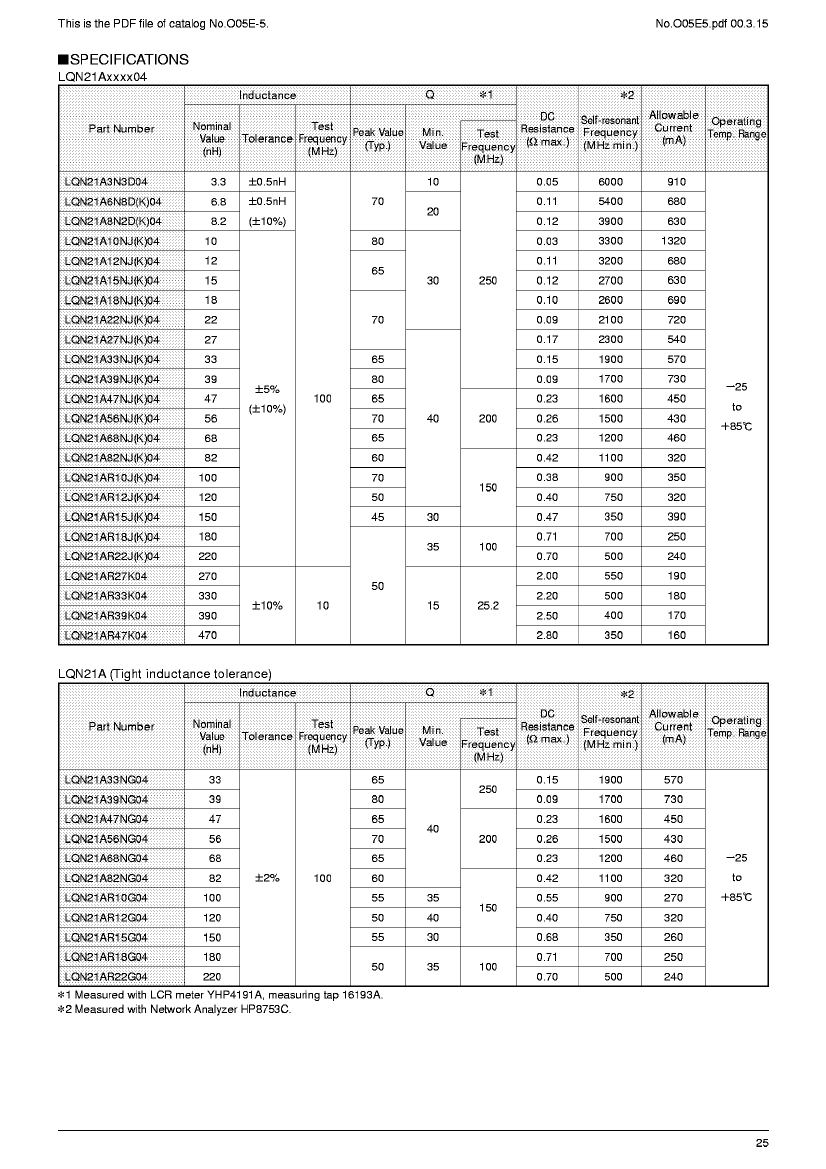

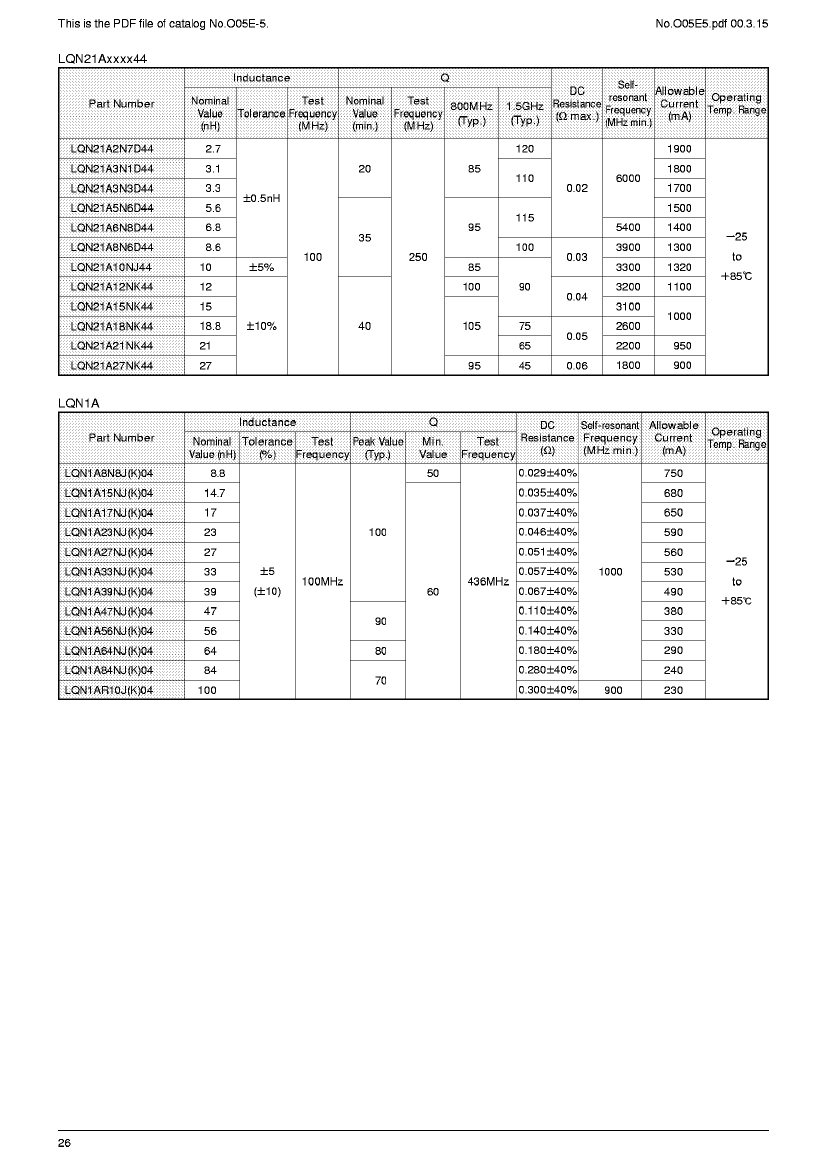

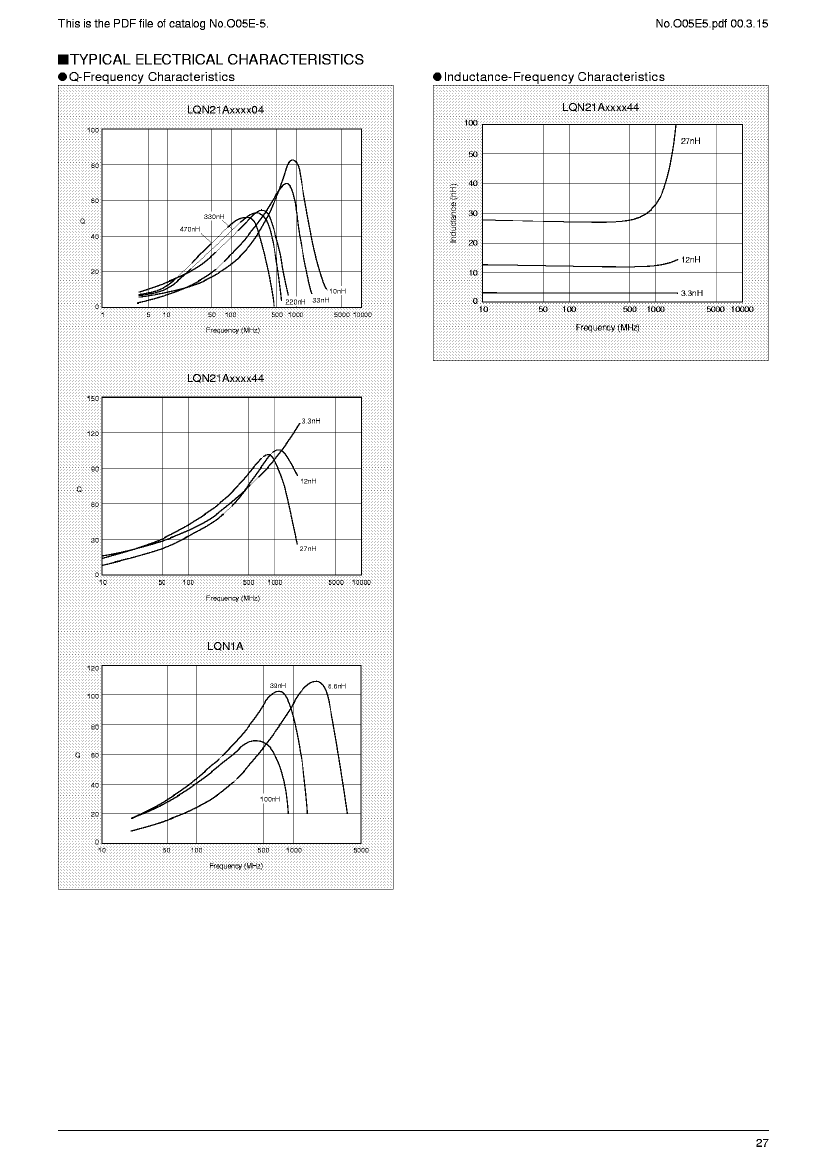

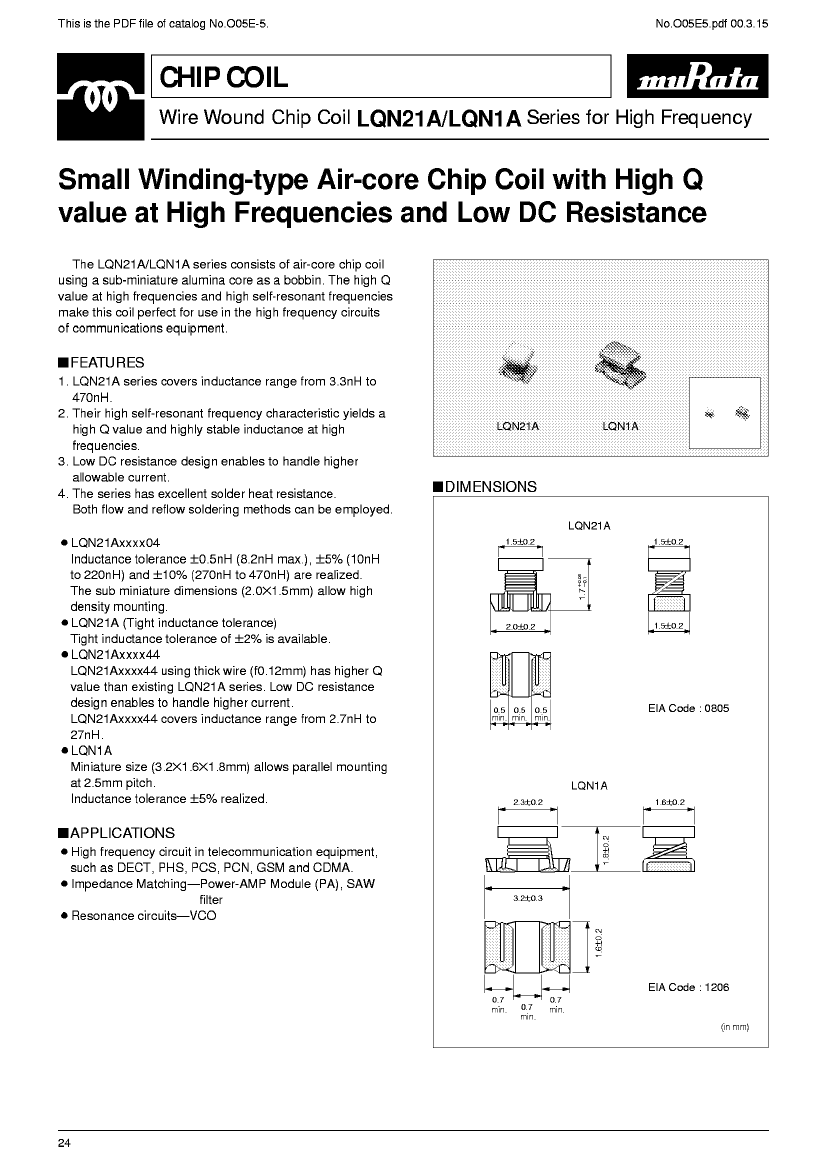

Preview

Download Datasheet

View All

LQN21A15NK04 Related Products

	LQN21A15NK04	LQN21A10NK04	LQN21A47NK04	LQN21AR12K04	LQN21AR22K04	LQN21A12NK04	LQN21AR10K04	LQN21A6N8K04
Description	General Purpose Inductor, 0.015uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.01uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.047uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.12uH, 10%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.22uH, 10%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.012uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.1uH, 10%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0068uH, 10%, 1 Element, Air-Core, SMD, CHIP, 0805
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	AIR	AIR	AIR	AIR	AIR	AIR	AIR	AIR
DC Resistance	0.12 Ω	0.03 Ω	0.23 Ω	0.4 Ω	0.7 Ω	0.11 Ω	0.38 Ω	0.11 Ω
Nominal inductance(L)	0.015 µH	0.01 µH	0.047 µH	0.12 µH	0.22 µH	0.012 µH	0.1 µH	0.0068 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	30	30	40	40	35	30	40	20
Maximum rated current	0.63 A	1.32 A	0.45 A	0.32 A	0.24 A	0.68 A	0.35 A	0.68 A
self resonant frequency	2700 MHz	3300 MHz	1600 MHz	750 MHz	500 MHz	3200 MHz	900 MHz	5400 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 250 MHZ	Q MEASURED AT 250 MHZ	Q MEASURED AT 200 MHZ	Q MEASURED AT 150 MHZ	Q MEASURED AT 100 MHZ	Q MEASURED AT 250 MHZ	Q MEASURED AT 150 MHZ	Q MEASURED AT 250 MHZ
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Test frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%
Maker	Murata	Murata	-	-	-	Murata	Murata	Murata
package instruction	CHIP, 0805	CHIP, 0805	CHIP, 0805	-	-	CHIP, 0805	-	CHIP, 0805
