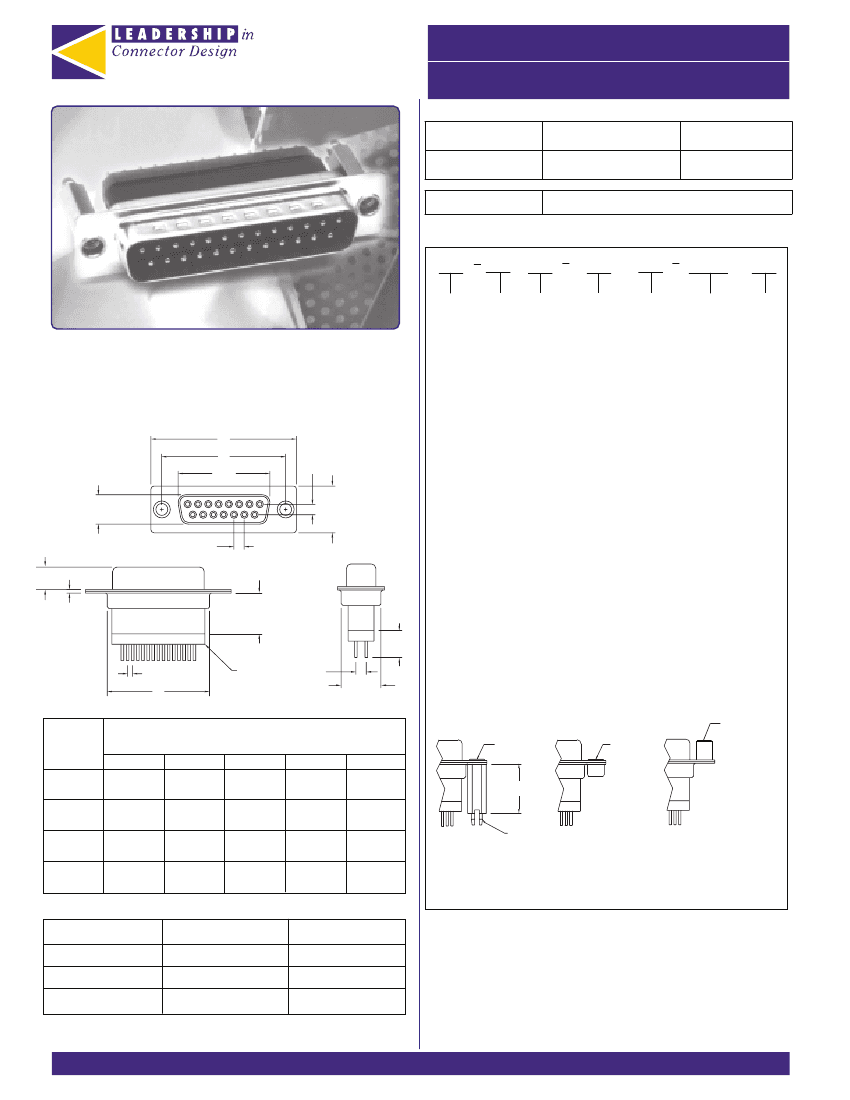

FERRITE D-SUBMINIATURE
KYCON
RoHS
Drawing
Sample
KF88X Series
Documentation &
Ordering Information
Stock
Email
CofC
RFQ
Kycon Part #
KF88X-CD-37S-30
Part Number Builder
KF88X
Series
C
D
37
S
30
Shell Pin
Type Type
Contact Contact Mounting Plating
Option
Type
Option Option
High Profile Vertical PCB Mount with Ferrite
Dimensions in mm
KF88X Series
Series
KF88X
- D-Subminiature Connector Vertical PCB
Termination, High Profile with Ferrite
Contact Shell Size Option
E - 9 Contacts
A - 15 Contacts
B - 25 Contacts
C - 37 Contacts
Contact Construction
C - Precision Machined
D - Precision Formed
Contact Type
P
P - Pin Contact (Plug)
S - Socket Contact (Receptacle)
S
Mounting Option
Blank - Without Riveted Option
K - With (4-40) Bushings
KJ - With (4-40) Bushings and (4-40) Hex Jack Screws
BR - With (4-40) Tin Plated 14.50mm Long Boardlocks
BRJ
- With (4-40) Tin Plated 14.50mm Long Boardlocks
and (4-40) Hex Jack Screws
R
- With Round Riveted Jack Screws
-BR Option
#4-40 UNC
KF88X Series Dimensions
C
A, A1
8.36 Plug Interior,
7.90 Socket Exterior
2.77
2.84
10.98 Max.
12.55
B
6.1 Plug,
5.8 Socket
0.90
7.20
1.385
D
2.7mm Ferrite
2.84
10.72
Number of
Contacts
(Shell Size)
Dimensions (Inch/mm)
A
.643
16.33
.971
24.66
1.511
38.38
2.159
54.84
A1
.666
16.92
.994
25.25
1.534
38.96
2.182
55.42
B
.984
24.99
1.312
33.32
1.852
47.04
2.500
63.50
C
1.213
30.81
1.541
39.14
2.088
53.04
2.729
69.32
D
.755
19.18
1.083
27.51
1.614
41.00
2.272
57.71
-K Option
#4-40 UNC
Bushing
-R Option
#4-40 UNC
Internal
Thread
9 (E)
15 (A)
25 (B)
37 (C)
14.50
Board Lock
Ferrite Speci cations
Test Frequency
30 Mhz
50 Mhz
100 Mhz
Edge Hole
17-27 Ohms
22-30 Ohms
29-34 Ohms
Inner Hole
22-30 Ohms
29-37 Ohms
35-40 Ohms
Plating Option
Blank
- Gold Flash
15 - 15
µ
” Gold (Precision Formed Contacts only)
30 - 30
µ
” Gold (Precision Formed Contacts only)
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
Click here for Performance Specification
2011
KYCON, Inc. • Tel: +408-494-0330 • US: 1-888-KYCON-22 • Fax: +408-494-0325 • www.kycon.com
