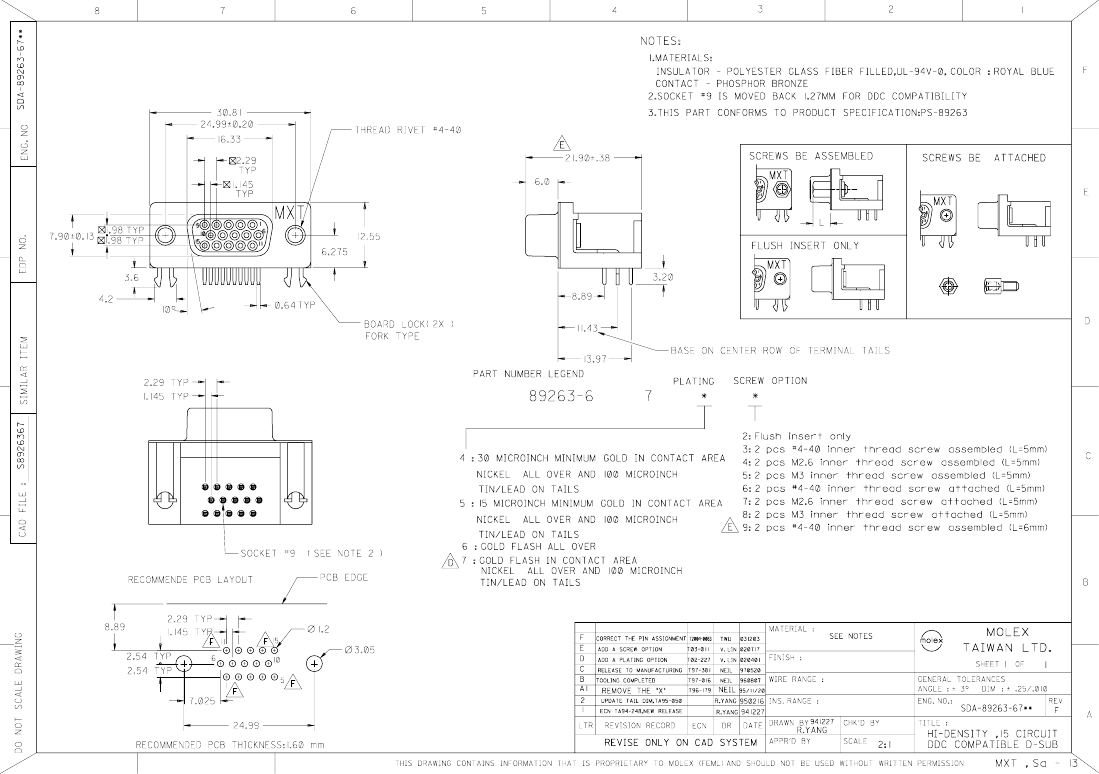

D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | TRAY PACKAGING |
| body width | 0.494 inch |
| subject depth | 0.626 inch |
| body length | 1.213 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD FLASH |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| maximum insertion force | 3.336 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLUE |
| insulator material | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 89263 |
| Plug contact pitch | 0.09 inch |
| Match contact row spacing | 0.078 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | THREADED RIVET |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | .1946 N |
| 89263-6766 | 89263-6762 | 89263-6752 | |
|---|---|---|---|
| Description | D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug, | D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug, | D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug, |
| Is it Rohs certified? | incompatible | conform to | incompatible |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | TRAY PACKAGING | TRAY PACKAGING | TRAY PACKAGING |
| body width | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.626 inch | 0.626 inch | 0.626 inch |
| body length | 1.213 inch | 1.213 inch | 1.213 inch |
| Body/casing type | PLUG | PLUG | PLUG |
| Contact to complete cooperation | AU | AU | AU ON NI |
| Contact completed and terminated | GOLD FLASH | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| maximum insertion force | 3.336 N | 3.336 N | 3.336 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLUE | BLUE | BLUE |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 89263 | 89263 | 89263 |
| Plug contact pitch | 0.09 inch | 0.09 inch | 0.09 inch |
| Match contact row spacing | 0.078 inch | 0.078 inch | 0.078 inch |
| Installation option 1 | #4-40 | LOCKING | LOCKING |
| Installation option 2 | THREADED RIVET | FLUSH | FLUSH |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| PCB row number | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 3 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | FLASH inch | FLASH inch | 15u inch |
| Rated current (signal) | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL |
| Terminal length | 0.126 inch | 0.126 inch | 0.126 inch |
| Terminal pitch | 2.286 mm | 2.286 mm | 2.286 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 15 | 15 |
| Evacuation force-minimum value | .1946 N | .1946 N | .1946 N |
| Base Number Matches | - | 1 | 1 |
