S-2939AIF10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> S-2939AIF10

S-2939AIF10: DescriptionEEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size265KB，12 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-2939AIF10 Overview

EEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8

S-2939AIF10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ABLIC
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES
Maximum clock frequency (fCLK)	0.5 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5.2 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.8/6.5 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Serial bus type	MICROWIRE
Maximum standby current	0.000001 A
Maximum slew rate	0.005 mA
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Maximum write cycle time (tWC)	10 ms
write protect	SOFTWARE

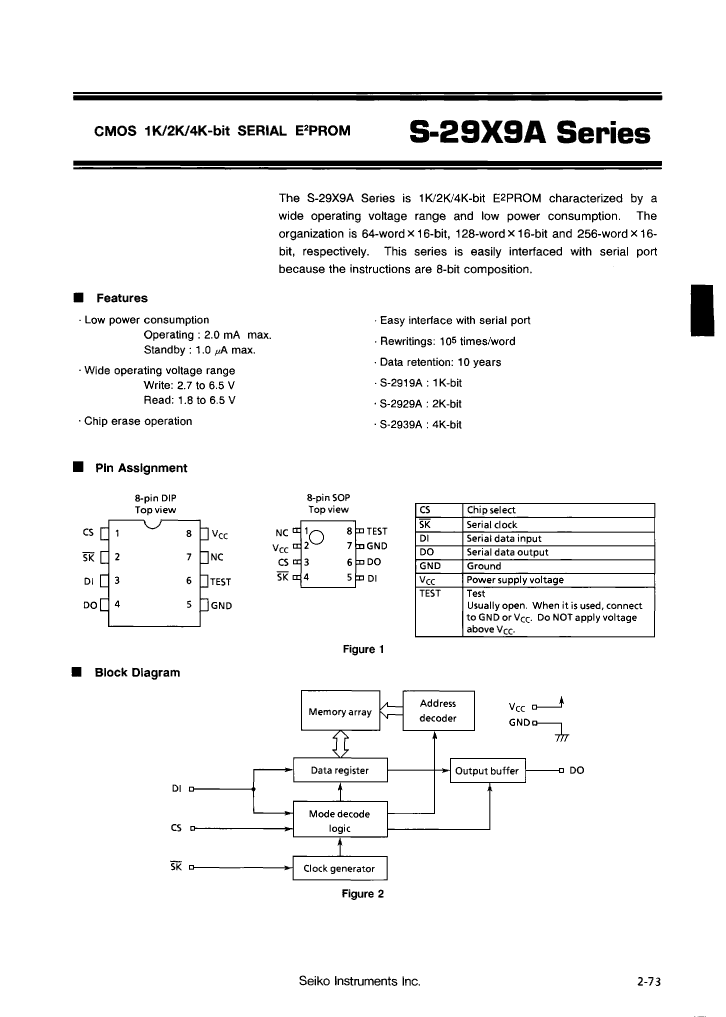

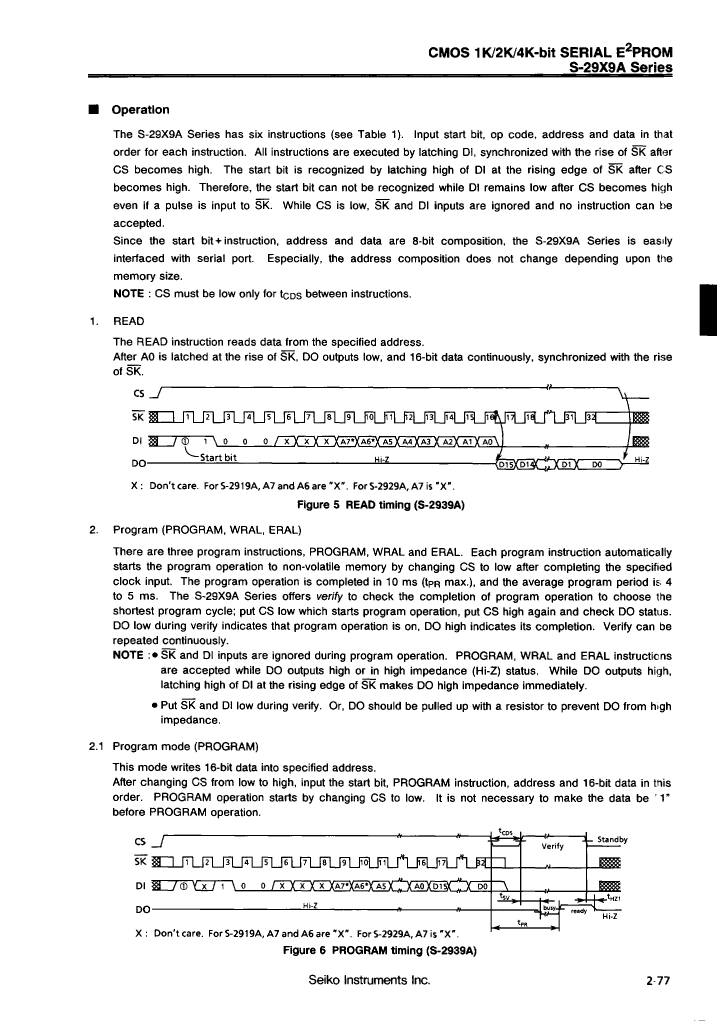

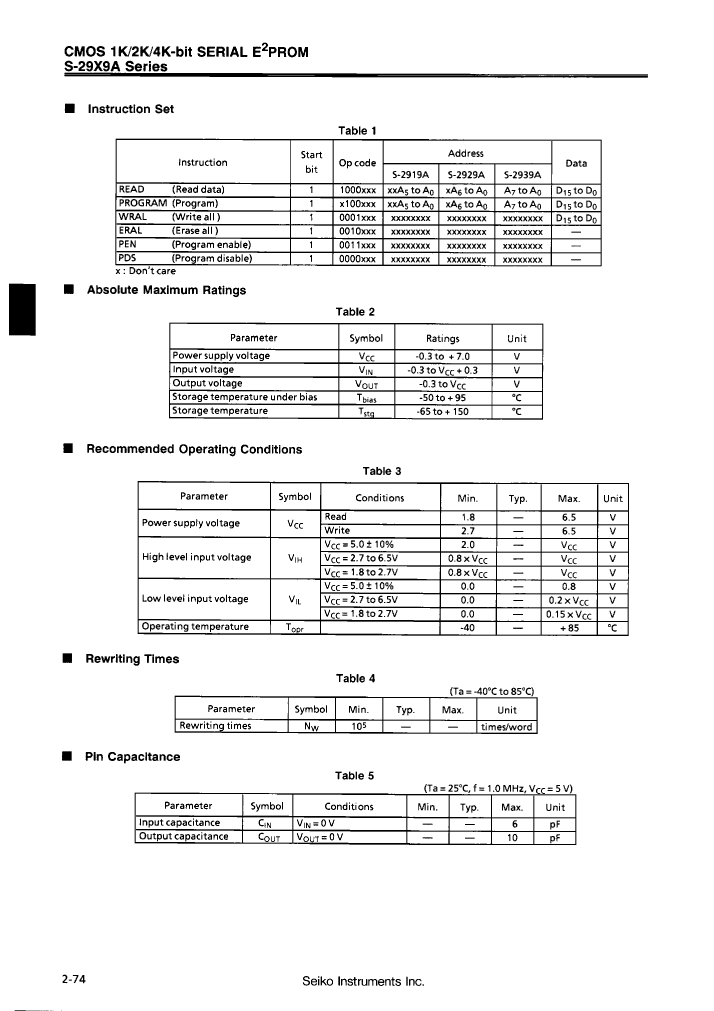

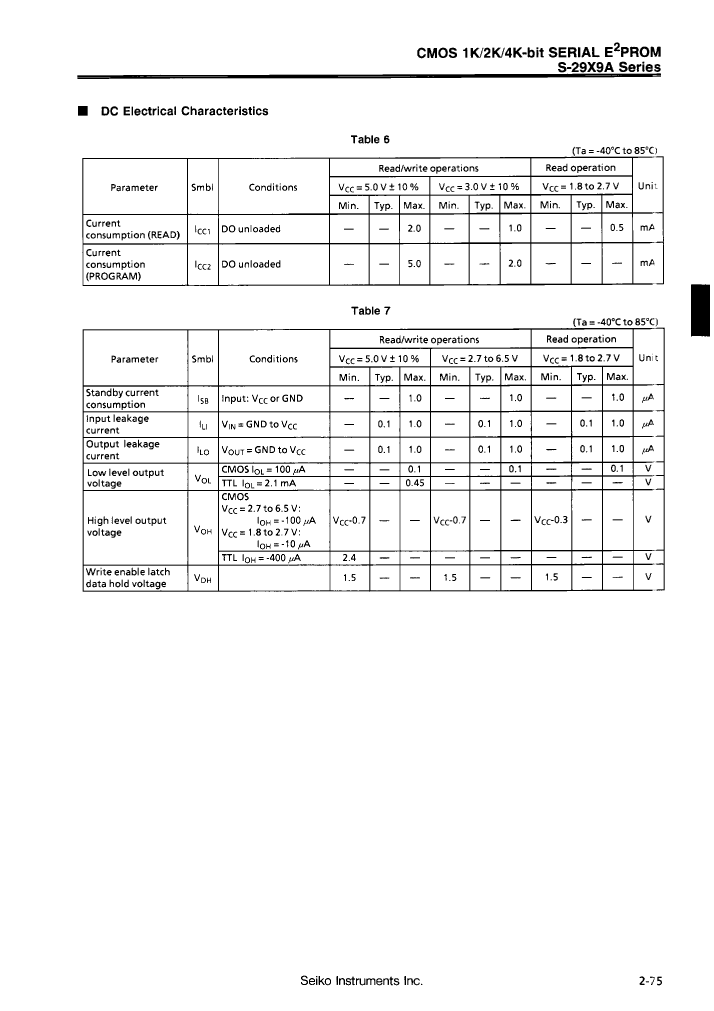

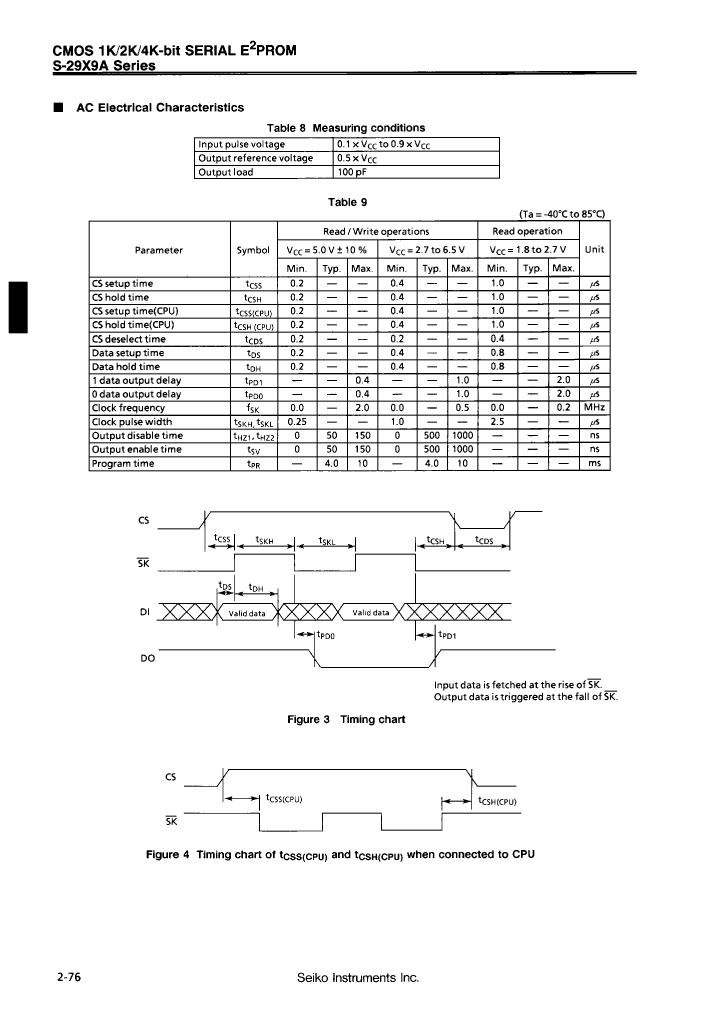

Preview

Download Datasheet

View All

S-2939AIF10 Related Products

	S-2939AIF10	S-2919AI10	S-2939AI10	S-2919AIF10	S-2929AI10	S-2929AIF10
Description	EEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 256X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	DIP	SOIC	DIP	SOIC
package instruction	LSOP, SOP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	LSOP, SOP8,.3	DIP, DIP8,.3	LSOP, SOP8,.25
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 100000 ERASE/WRITE CYCLES
Maximum clock frequency (fCLK)	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz
Data retention time - minimum	10	100	10	100	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0
length	5.2 mm	9.3 mm	9.3 mm	5.2 mm	9.3 mm	5.2 mm
memory density	4096 bit	1024 bit	4096 bit	1024 bit	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
word count	256 words	64 words	256 words	64 words	128 words	128 words
character code	256	64	256	64	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	256X16	64X16	256X16	64X16	128X16	128X16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	DIP	DIP	LSOP	DIP	LSOP
Encapsulate equivalent code	SOP8,.3	DIP8,.3	DIP8,.3	SOP8,.3	DIP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	IN-LINE	IN-LINE	SMALL OUTLINE, LOW PROFILE	IN-LINE	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	1.8/6.5 V	5 V	1.8/6.5 V	5 V	1.8/6.5 V	1.8/6.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	4.5 mm	4.5 mm	1.7 mm	4.5 mm	1.7 mm
Serial bus type	MICROWIRE	3-WIRE	MICROWIRE	3-WIRE	3-WIRE	3-WIRE
Maximum standby current	0.000001 A	0.000001 A	0.000001 A	0.000001 A	0.000001 A	0.000001 A
Maximum slew rate	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	7.62 mm	7.62 mm	4.4 mm	7.62 mm	4.4 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
write protect	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE
Maker	ABLIC	-	-	ABLIC	ABLIC	ABLIC
