605-13-428-11-480100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 605-13-428-11-480100

605-13-428-11-480100: DescriptionIC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size140KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

605-13-428-11-480100 Overview

IC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT

605-13-428-11-480100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP28
JESD-609 code	e4
Number of contacts	28

Preview

Download Datasheet

View All

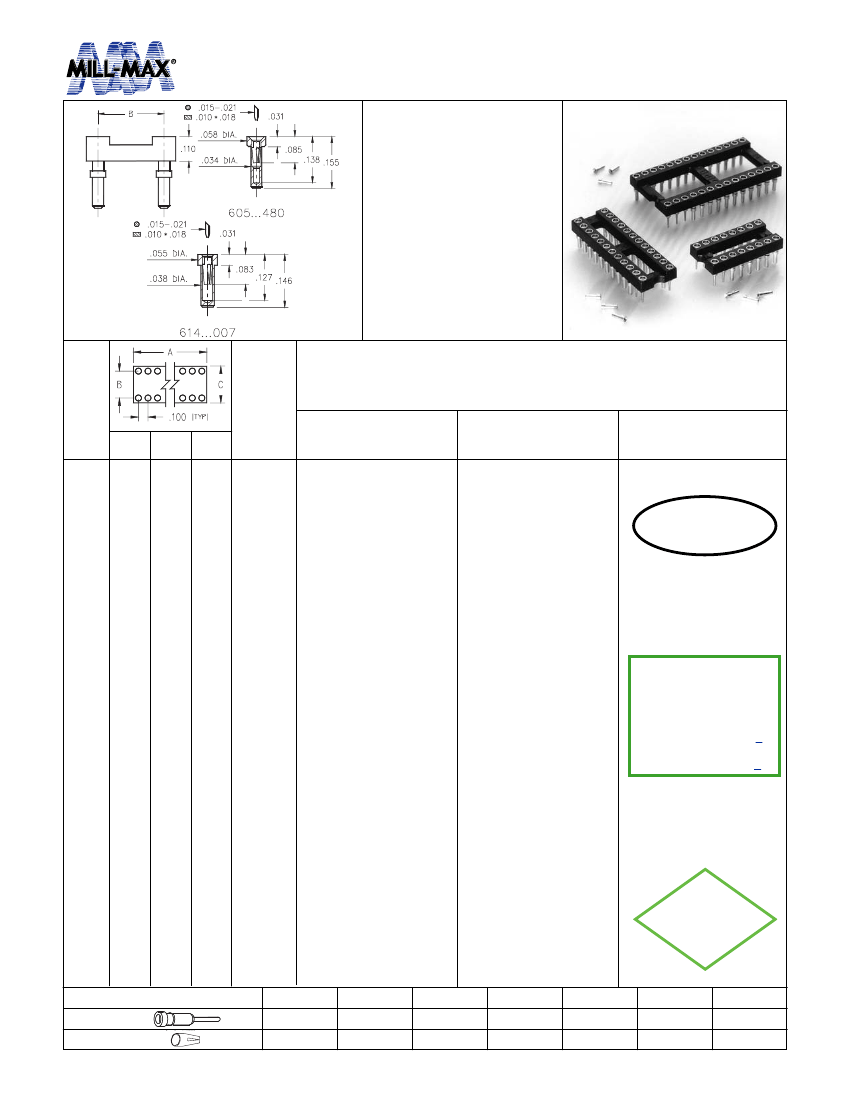

DUAL-IN-LINE SOCKETS

Carrier Type

Low Profile

•

Low profile receptacles

sit only .031” high above

the board.

•

Removable plastic carri-

ers can be returned for

reloading.

•

Hi-Rel, 3-finger #11 BeCu

contact is rated at 3 amps.

See page 206 for details.

•

Uses M-M#1407 & 0548

receptacles.

See page 126 for details.

Series 605, 614

Total number

of pins

Quantity

per tube

Ordering Information

Length = .146

(.039 Min. Mounting Hole)

Length = .155

(.035 Min. Mounting Hole)

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

102

614-XX-210-31-007000

614-XX-304-31-007000

614-XX-306-31-007000

614-XX-308-31-007000

614-XX-310-31-007000

614-XX-314-31-007000

614-XX-316-31-007000

614-XX-318-31-007000

614-XX-320-31-007000

614-XX-322-31-007000

614-XX-324-31-007000

614-XX-328-31-007000

614-XX-420-31-007000

614-XX-422-31-007000

614-XX-424-31-007000

614-XX-428-31-007000

614-XX-432-31-007000

614-XX-624-31-007000

614-XX-628-31-007000

614-XX-632-31-007000

614-XX-636-31-007000

614-XX-640-31-007000

614-XX-642-31-007000

614-XX-648-31-007000

614-XX-650-31-007000

614-XX-652-31-007000

614-XX-950-31-007000

614-XX-952-31-007000

614-XX-964-31-007000

10μ” Au

30μ” Au

605-XX-210-11-480000

605-XX-304-11-480000

605-XX-306-11-480000

605-XX-308-11-480000

605-XX-310-11-480000

605-XX-314-11-480000

605-XX-316-11-480000

605-XX-318-11-480000

605-XX-320-11-480000

605-XX-322-11-480000

605-XX-324- 11-480000

605-XX-328-11-480000

605-XX-420-11-480000

605-XX-422-11-480000

605-XX-424-11-480000

605-XX-428-11-480000

605-XX-432-11-480000

605-XX-624-11-480000

605-XX-628-11-480000

605-XX-632-11-480000

605-XX-636-11-480000

605-XX-640-11-480000

605-XX-642-11-480000

605-XX-648-11-480000

605-XX-650-11-480000

605-XX-652-11-480000

605-XX-950-11-480000

605-XX-952-11-480000

605-XX-964-11-480000

200μ” Sn/Pb

200μ” Sn

10μ” Au

200μ” Sn

30μ” Au

200μ”Sn

200μ” Sn

XX=Plating Code

See Below

For RoHS compliance,

select plating code.

For the all gold option

(XX=13) also change

part number from

6XX-XX-XXX-X1-XXX000

6XX-13-XXX-X1-XXX100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200μ” Sn/Pb

200μ”Sn/Pb

30μ” Au
