GP-PA-S-3.0-T: DescriptionRF Connector Adapter, Female-Male-Female,; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerCorning Gilbert Inc

Download Datasheet Parametric View All

GP-PA-S-3.0-T Overview

RF Connector Adapter, Female-Male-Female,

GP-PA-S-3.0-T Parametric

Parameter Name	Attribute value
Maker	Corning Gilbert Inc
Reach Compliance Code	unknown
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	TIN
Contact point gender	FEMALE-MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	GP-PA
Maximum operating frequency	1 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

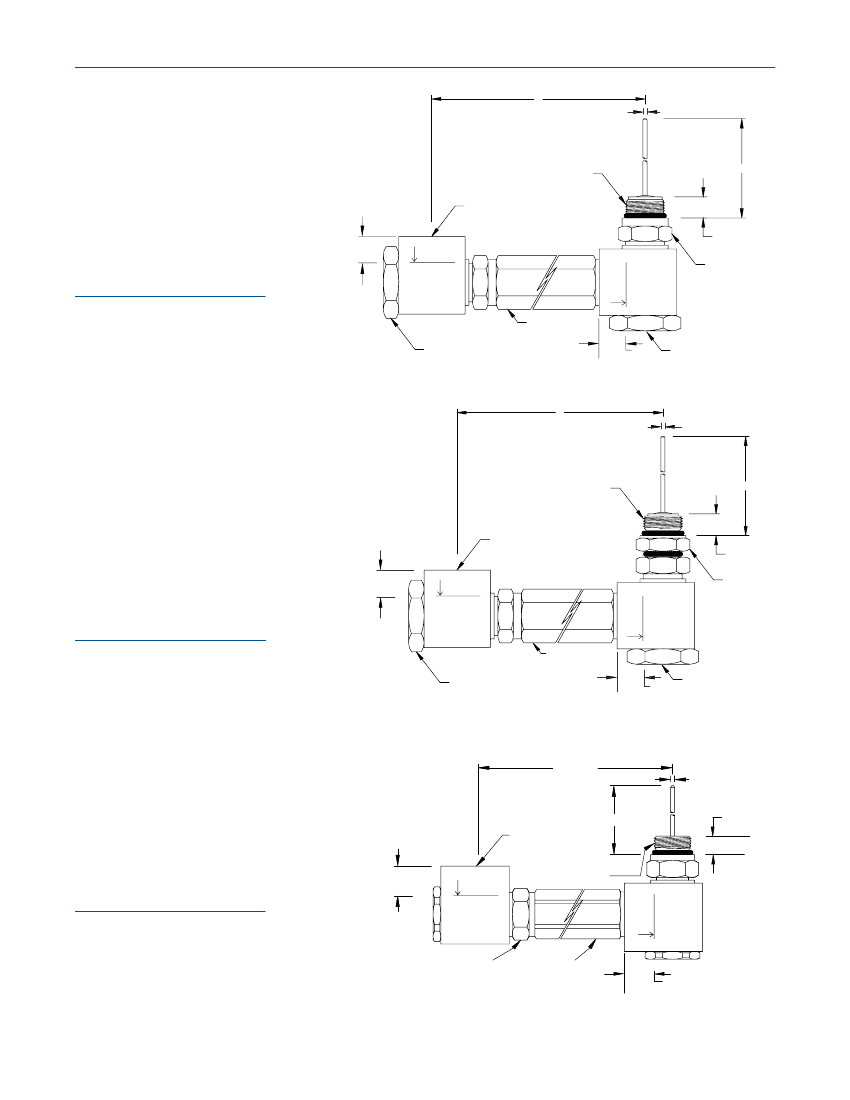

180 Degree Adapters

B

.067 [1.7 mm] Dia. Pin

5/8-24 THD

2.31 [58.8 mm]

5/8-24 THD

Internal Seizure Accepts

Center Conductor of

.151 [3.8 mm] Max

TRIM

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE

.31 [8.0 mm]

3/4 [19.1 mm] Hex

TRIM

180

o

Seizure Screw

Part Number

GP-PA-T

GP-PA-3.0-T

GP-PA-4.5-T

(B)

5.18

3.00

4.50

1 [25.4 mm] Hex TYP

3/4 [19.1 mm] Hex

1 [25.4 mm] Hex TYP

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE TYP

B

.067 [1.7 mm] Dia. Pin

5/8-24 THD

2.31 [58.8 mm]

5/8-24 THD

Internal Seizure Accepts

Center Conductor of

.151 [3.8 mm] Max

TRIM

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE

.31 [8.0 mm]

"KS" Male

Swivel Steel

Interface

TRIM

180

o

Seizure Screw Swivel

Part Number

GP-PA-S-T

GP-PA-S-3.0-T

GP-PA-S-4.5-T

(B)

5.18

3.00

4.50

1 [25.4 mm] Hex TYP

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE TYP

3/4 [19.1 mm] Hex

B

.067 [1.7 mm] Dia. Pin

2.31 [58.8 mm]

5/8-24 THD

Internal Seizure Accepts

Center Conductor of

.151 [3.8 mm] Max

TRIM

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE

5/8-24 THD

TRIM

.31 [8.0 mm]

180

o

Socket Contact

Part Number

GL-180-SC-w/1.5-T

GL-180-SC-w/3-T

GL-180-SC-w/4.5-T

GL-180-SC-w/6-T

GL-180-SC-w/9-T

(B)

3.25

4.75

6.25

7.75

10.75

3/4 [19.1 mm] HEX TYP

3/4 [19.1 mm] HEX

1/2 [12.7 mm]

CENTER CONDUCTOR

CUTTING GUIDE TYP

22

Corning Gilbert Broadband Products

Tel: 800 528 5567 / 623 245 1050 • Fax: 800 344 6358 / 623 939 3538
