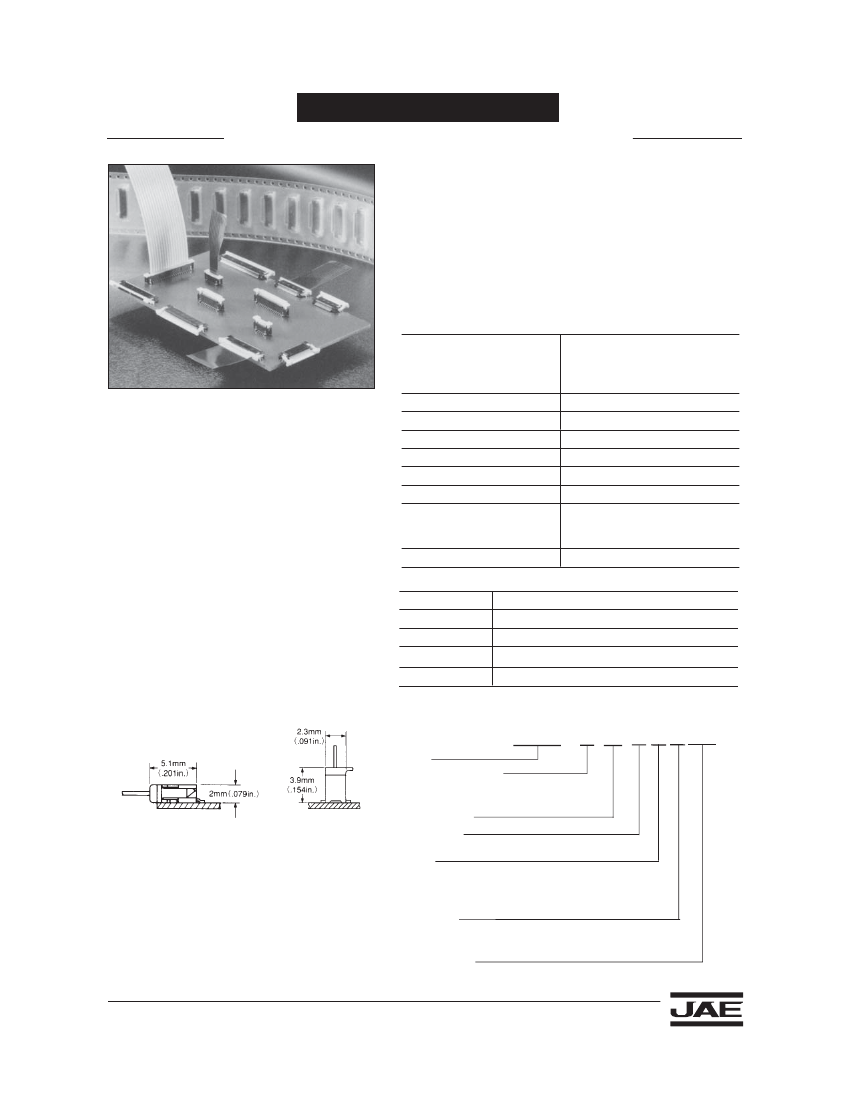

IL-FPR SERIES CONNECTORS
0.5mm (.020") Contact Spacing, ZIF Type Connectors for FPC/FFC
• • • • • • • • • • • • • •
IL-FPR Series SMT connectors meet today's requirements for smaller
size and lighter weight. These connectors have extremely high
contact density and low profiles: 0.5mm (.020") centers and a 2.0mm
(.079") mounted height (right-angle type).
Both straight and right-angle types are available. The ZIF (zero
insertion force) configuration permits easy insertion and extraction of
the FPC (flexible printed circuit), even in a minimal amount of space.
A wide variety of mounting styles are available.
GENERAL SPECIFICATIONS
Number of Contacts
Right Angle type: 5-14, 16-18, 20-22, 24,
26, 28, 30-38, 40, 45, 50
Straight type: 8-10, 12-14, 16, 18, 20-22,
24-28, 30, 32-34, 36, 40, 45
0.5mm (.020”), single row
AC/DC 0.5 Amp per contact
250 VAC r.m.s. (for one minute)
100 megohms min.
20 milliohms max.
-40°C to +85°C
0.5mm(.020") spacing
0.3mm ± 0.05mm(.012" ± .002") thickness
with reinforcement
AC/DC 50V
FEATURES
Contact Spacing
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable FPC
• Extremely small, 0.5mm (.020") spacing
• SMT type for FPC
• Available in right-angle and straight versions
• A slider enables insertion/extraction of FPC
without applying force (Zero Insertion Force)
• One-side contact configuration avoids
mismating of FPC
• Lower-side or upper-side FPC contact
surfaces on right-angle version
• Hold down mechanism prevents
fl
oating up of
the connector during soldering and retains the
connector on the board
• Designed to avoid defective mating
• Supplied in embossed tape for automatic
SMT mounting
Voltage Rating
MATERIALS AND FINISHES*
Description
Contact
Base Insulator
Slide Insulator
Hold-down Tab
Materials/Finishes
High Strength Brass /Tin Plated
Glass-filled PPS (Black)
Glass-filled PPS (White)
Copper Alloy /Tin Plated
*Please contact JAE for lead-free product availability.
Connector Profile (Ref.)
ORDERING INFORMATION
IL-FPR –
*
**
S ** ** R****
• Please consult JAE for verification of product availability.
Dimensions in mm (inches).
Series
Contact Configuration
Blank – Lower-Side Contact
U – Upper-Side Contact
No. of Contacts
Contact Type
S – Socket
Plating
– Tin Lead
A1 – Gold
N1 – Gold reflow tin hold downs
Termination
HF – Right Angle
VF – Straight
Embossed Tape
R1500 – 1,500 Straight Pieces/Reel
R3000 – 3,000 Right Angle Pieces/Reel
43
