8609464791465000E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8609464791465000E

Preview

8609464791465000E: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609464791465000E Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

8609464791465000E Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1

2 3

4

5

6

A

XXX XX XX XXX XXXX YY XX

B

FCIconnect.com

B

C

Copyright FCI

linear

NOTES:-

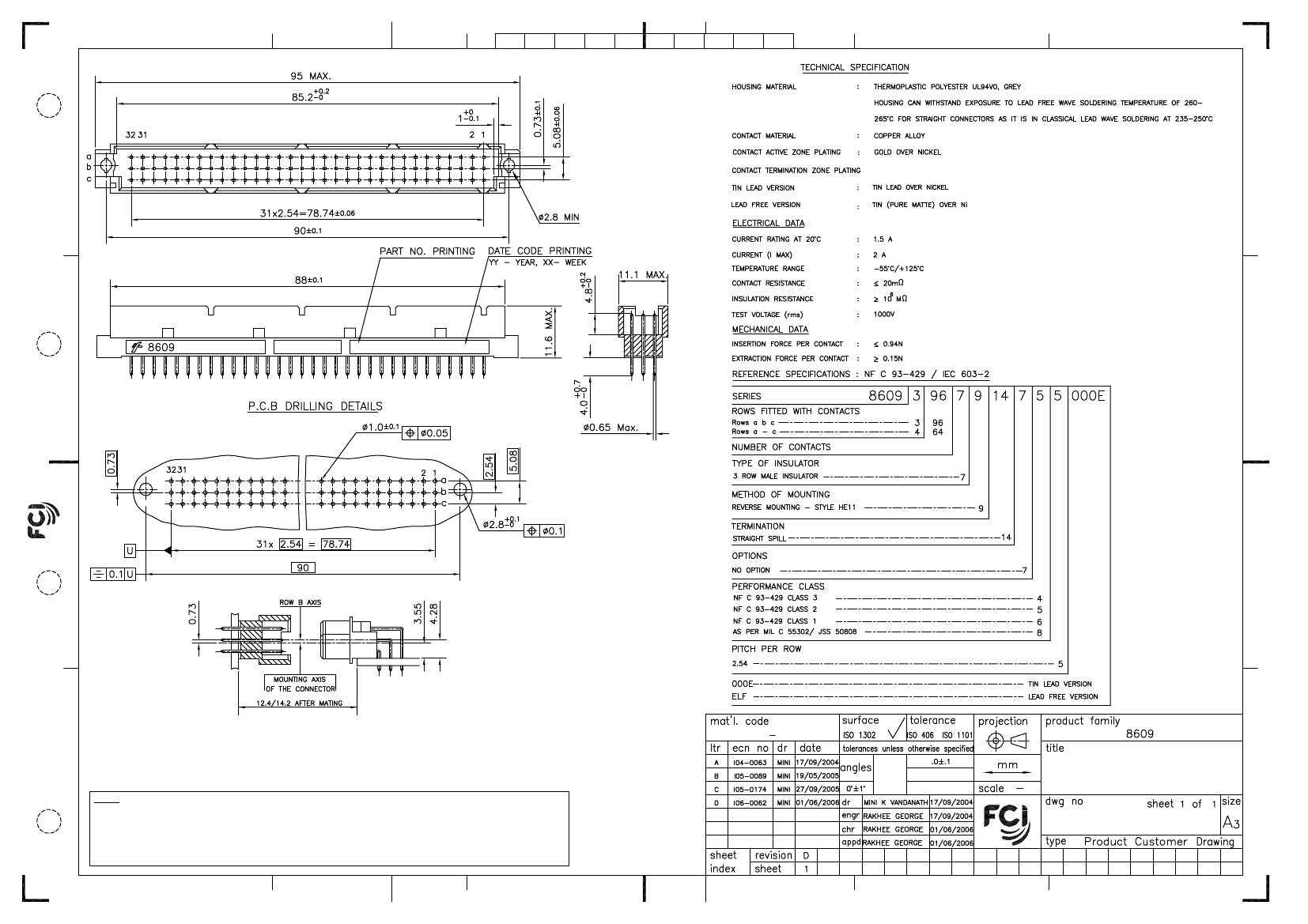

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

HE11 REVERSE HEADER

STRAIGHT SPILL NFC 93-429

C-8609-2011

D

3

4

5

6

STATUS:

Released

Printed: Oct 30, 2007

.

D

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

1

2

PDM: Rev:D

8609464791465000E Related Products

	8609464791465000E	8609396791445000E	8609396791455000E	8609396791465000E	8609396791485000E	8609464791455000E	8609464791485000E
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609	8609	8609	8609
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	3	3	3	3	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	96	96	96	96	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	-	-
