RPCA30-06C Overview

Fixed Attenuator, 0MHz Min, 4000MHz Max, MICROSTRIP PACKAGE-2

RPCA30-06C Parametric

Parameter Name	Attribute value
Maker	Electro Technik Industries
Reach Compliance Code	unknown
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

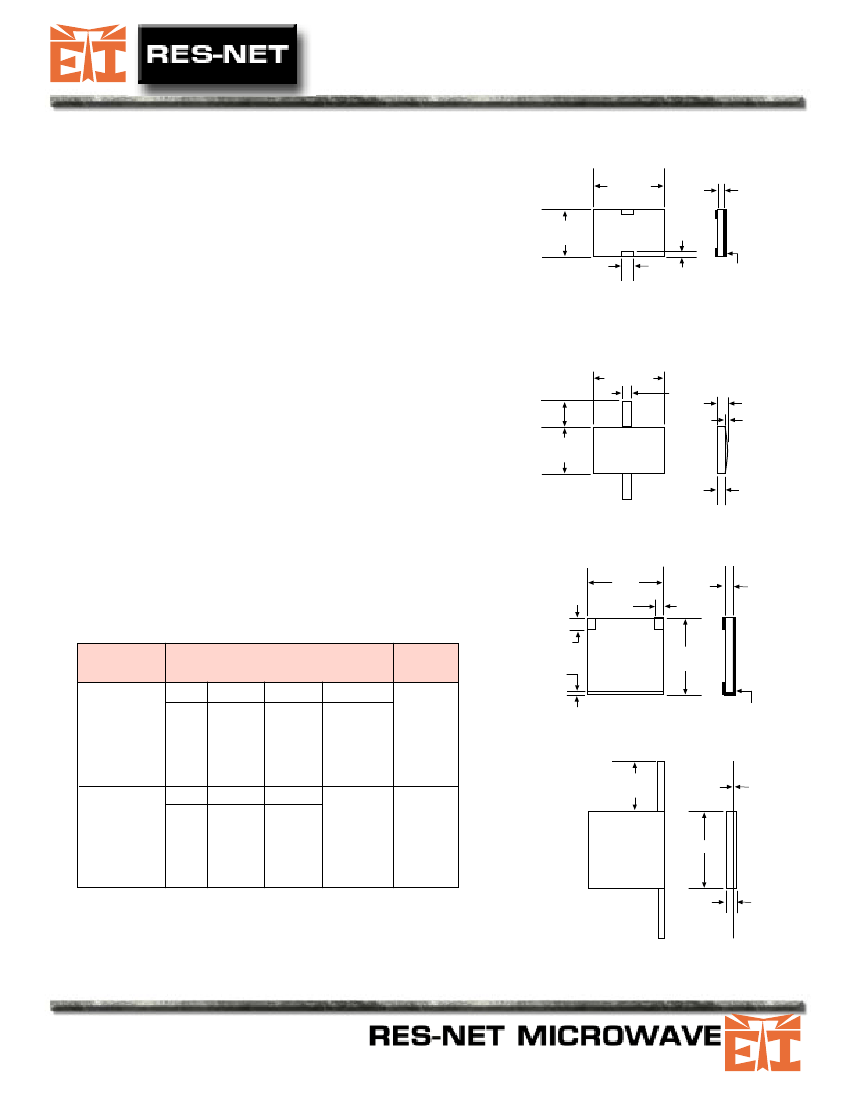

HIGH POWER CHIP

ATTENUATORS

ELECTRO TECHNIK

GENERAL SPECIFICATIONS:

IMPEDANCE: 50 Ohms.

ATTENUATION VALUES: 1 dB to 20 dB.

POWER RATING: The power rating is from -65°C to 100°C, derated

linearly to zero at 150°C.

TEMPERATURE COEFFICIENT:

±100

PPM/°C maximum from -55°C to

+125°C.

ENVIRONMENTAL: Meets or exceeds the applicable requirements of

MIL-R-55342.

OPERATING TEMPERATURE: -65°C to +150°C.

ATTENUATION STABILITY: 0.0001 dB/dB/°C.

MECHANICAL TOLERANCE:

±.010

inch.

.350

(8.89)

.230

(5.84)

.060

(1.52)

.040

(1.01)

ground

.042

(1.06)

RPCA30 (30 WATTS)

MATERIALS:

RESISTIVE ELEMENTS: Proprietary film.

TERMINALS: Platinum Silver.

SUBSTRATE:

Beryllium Oxide.

COVER: Epoxy or Alumina.

TABS:

Beryllium

Copper, Gold Plated.

.150

(3.81)

.350(8.89)

.092

(2.33) max

.40

(1.01)

.003

(.07)

.230

(5.84)

.043

(1.09)

RPCA30-XXC (30 WATTS)

.375

(9.53)

.040

(1.01)

.043

(1.09)

MICROSTRIP CONFIGURATION:

PART

NUMBER

RPCA30

1-5

6-9

10 - 15

16 - 20

20 - 30

RPCA50

1-5

6-9

10 - 15

16 - 20

20 - 30

ATTENUATION ACCURACY (dB)

& FREQUENCY (GHz)

DC-1GHz 1-2.5 GHz

±0.3

±0.4

±0.5

±0.75

DC-1GHz

±0.5

±0.3

±0.4

±0.5

±0.6

±1.0

0.5-1GHz

±0.5

±0.7

±1.0

±1.5

1.15 to DC

to 0.5 GHz

1.20 to 0.5

to 1.0 GHz

2.5-4 GHz

±0.5

±0.7

±1.0

N/A

1.15 to DC

to 1.0 GHz

1.25 to 1.0

to 2.5 GHz

1.35 to 2.5

to 4.0 GHz

VSWR

(max.)

.060

(1.52)

.015

(.38)min.

.375

(9.53)

ground

RPCA50 (50 WATTS)

.250 min.

(6.35)

.003

(.07)

.375

.092

RPCA50-XXC (50 WATTS)

Toll Free: 800.526.0704

Phone:

727.530.9555

P.O. Box 18802 • Clearwater, FL 33762

ELECTRO TECHNIK
