REVISION N
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL ASSEMBLIES TO BE 100 % ELECTRONICALLY TESTED
FOR SHORTS AND OPENS.
3. ALL ASSEMBLIES TO BE 100 % HI-POT TESTED AT 630V.
4. TO BE MEASURED FROM BOND LINE.
5. PARTS TO BE LAYER PACKAGED.
6. SI DATA AVAILABLE FOR STANDARD LENGTHS ONLY.
7. MAX CABLE LENGTH AVAILABLE WITHOUT FLAT:
RIBBONIZED SECTION IS 18.61 INCHES. CONTACT
SAMTEC FOR NUMBER OF FLAT SECTIONS IF LONGER
LENGTH IS REQUIRED.
8. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS
SHOULD NOT EXTEND PAST THE CABLE INSULATION,
EXTENDING LESS THAN 25% OF CABLE THICKNESS ON
CONSECUTIVE AND LESS THAN 50% OF THE CABLE
THICKNESS ON NON-CONSECUTIVE STRANDS IS
CONSIDERED A PROCESS INDICATOR.
9. FOR CONNECTOR ASSEMBLY SEE DRAWING FFSD-XX-XX-X-N-XXX-SUB.
FFTP-XX-X-XX.XX-01-X-X-X
No OF POSITIONS
-02 THRU -25
OPTION
-R: REVERSED CONNECTOR
(SEE FIG 2)
STANDARD POLARIZATION NOTCH
-N: POLARIZATION NOTCH
(NOT AVAILABLE IN -02 THRU -04)
(LEAVE BLANK FOR -02 THRU -04)
PLATING OPTIONS
-LEAVE BLANK FOR STANDARD, USE
C-67-L
-S: USE C-67-S
-F: USE C-67-F
LEAD STYLE
END ASSEMBLY
-D: DOUBLE END (SEE FIGS 1 & 2)
ASSEMBLY LENGTH
ONLY AVAILABLE IN THESE LENGTHS
- 3.85" (USE CBTP-68-30-7/38-025-2)
- 8.77" (USE CBTP-68-30-7/38-025-1)
-18.00" (USE CBTP-68-30-7/38-025-4)
NOTCH DENOTES
FIRST POSITION
RED WIRE TO SIDE
OF 1ST POS INDICATOR
.120 REF
.040 REF

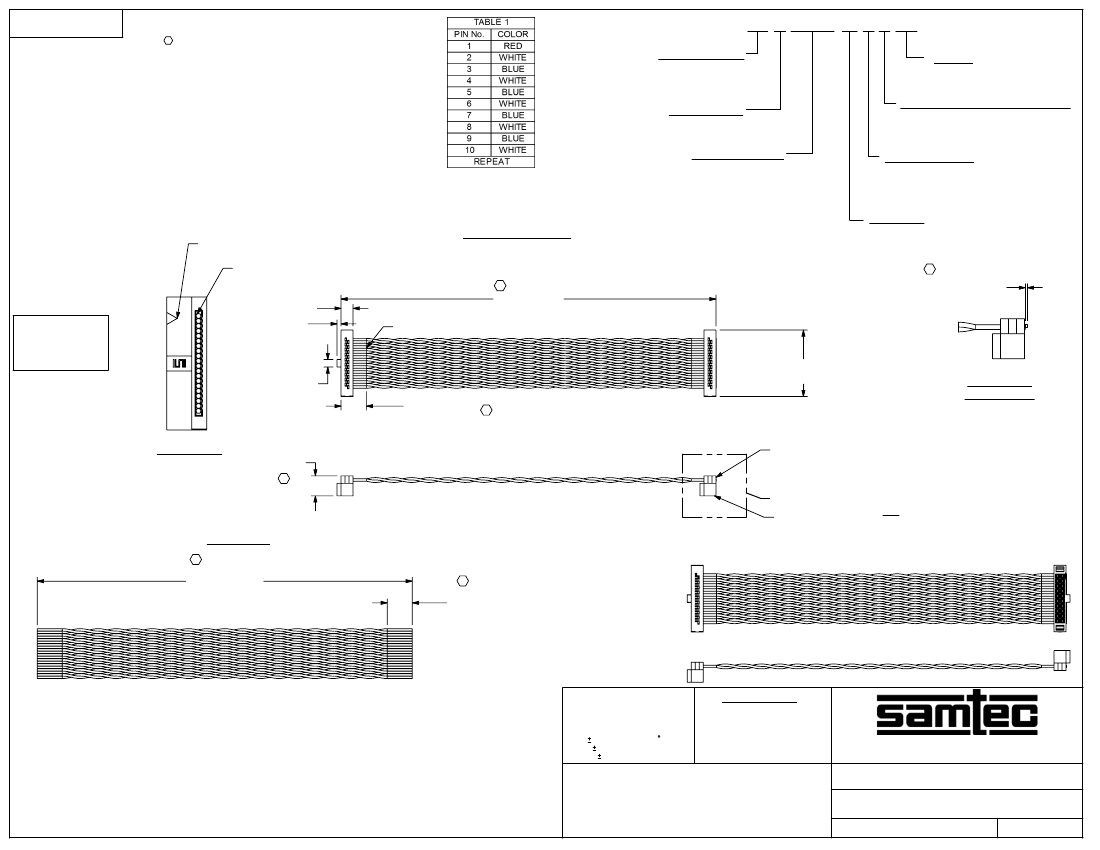

FFTP-10-D-3.85-01-X-N
C
-D: DOUBLE END
FIG 1
XX.XX ±.225
BOND LINE
(NO OF POS x .050) + .165
REF
.253
- .100
(TYP)
(SEE NOTE 4)
+.150
.010 MAX
CABLE OVERHANG
C
DO NOT
SCALE FROM
THIS PRINT
.075
REF
C
DETAIL 'A'
SCALE 2 : 1
SCALE 2:1
.200
- .003
C
+.006
FFC-XX-D
'A'
FFS-XX-D
IN PROCESS
C
REVERSED CONNECTOR
FFTP-10-D-X.XX-01-X-N-R
(SAME AS FIG 1 EXCEPT AS SHOWN)
C
-R
FIG 2
XX.XX±.125
(SEE TABLE 1)
.250
- .100
(SEE NOTE 4)
+.150
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
INSULATOR: CELANEX 3314, COLOR: BLACK
CONTACT OR TERMINAL: PHOS BRONZE
WIRE: 30 AWG, 7/38, TINNED, TWISTED PAIR WITH PVC
INSULATOR
F:\DWG\MISC\MKTG\FFTP-XX-X-XX.XX-01-X-X-X-MKT.SLDDRW
DESCRIPTION:
DWG. NO.
.050 X .050 C/L TWISTED PAIR FEMALE IDC ASSEMBLY
BY:
LENNY K
FFTP-XX-X-XX.XX-01-X-X-X
3/16/07
SHEET
1
OF
1
