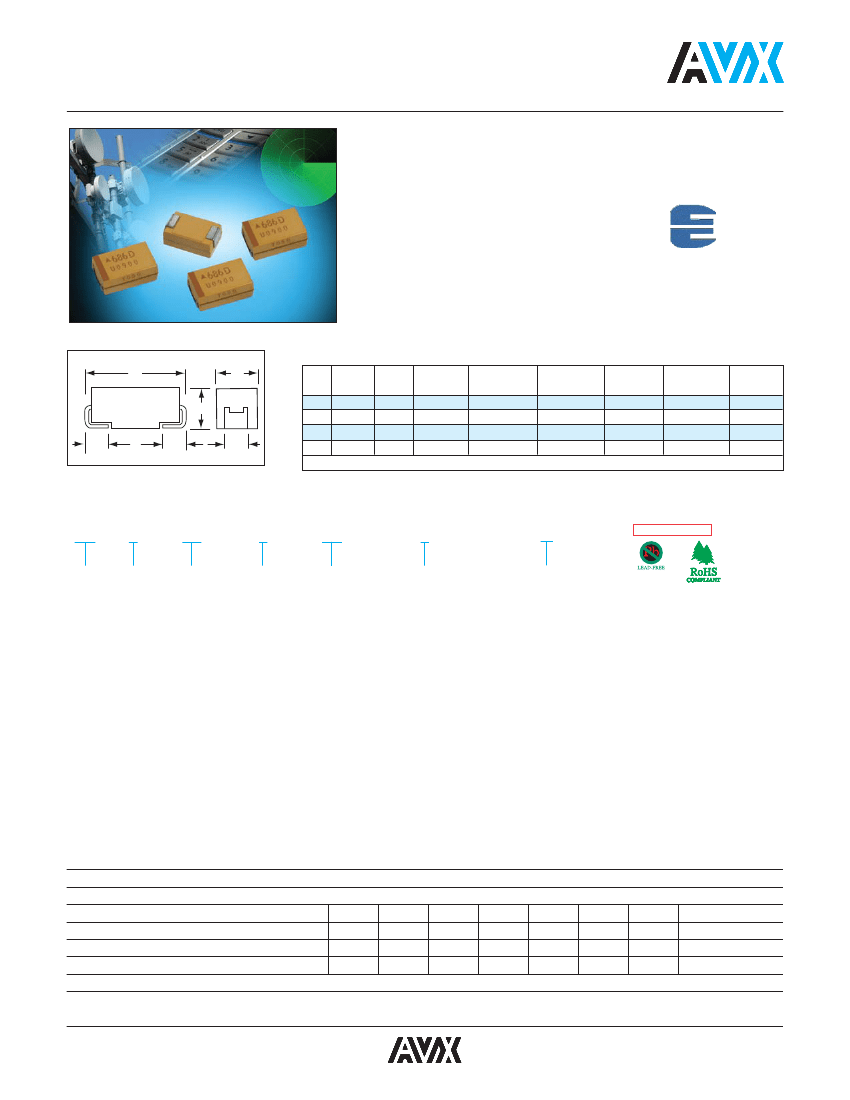

TAJ CECC Tantalum Capacitors
SMD Solid Tantalum Chip Capacitors
Capacitors, Fixed, Leadless Surface Mount, Chip, Solid electrolyte Tantalum
for use in avionics and industrial applications, tested to CECC Specification
30801-005 and 30801-011 (CTC4).
CECC
CASE DIMENSIONS:
millimeters (inches)
L
W
Code
A
B
C
EIA
Code
3216-18
3528-21
6032-28
7343-31
Variant
01&11
02&12
03&13
04&14
L±0.20
(0.008)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
7.30 (0.287)
W+0.20 (0.008)
–0.10 (0.004)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
4.30 (0.169)
H+0.20 (0.008)
–0.10 (0.004)
1.60 (0.063)
1.90 (0.075)
2.60 (0.102)
2.90 (0.114)
W
1
±0.20
(0.008)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
A+0.30 (0.012)
–0.20 (0.008)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
S Min.
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
H
A
S
A
W
1
D
W
1
dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
TAJ
Type
A
Case
Size
See
table
above
475
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd
digit represents
multiplier
(number of
zeros to follow)
K
Tolerance
K = ±10%
010
Rated DC
Voltage
006 = 6.3Vdc
010 = 10Vdc
016 = 16Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
050 = 50Vdc
R
Termination Finish
R = 7" T/R 100% Tin
S = 13" T/R 100% Tin
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
H = Tin Lead 7" Reel
K = Tin Lead 13" Reel
FJ
Suffix
FJ = CECC 30801-011(CTC4)
Y = CECC 30801-005
Not RoHS Compliant
LEAD-FREE COMPATI-
BLE
COMPONENT
For RoHS compliant products,
please select correct termination style.
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliabilty:
All technical data relate to an ambient temperature of +25°C
0.1 μF to 100 μF
±10%; ±20%
6.3
10
16
20
25
35
50
4
7
10
13
17
23
33
8
13
20
26
32
46
65
5
8
13
16
20
28
40
-55°C to +125°C
1% per 1000 hours at 85ºC, V
R
with 0.1Ω/V series Impedance,
60% confidence level
JUNE 2013
+85°C:
+125°C:
+85°C:
+125°C:
■
89
TAJ CECC Tantalum Capacitors
SMD Solid Tantalum Chip Capacitors
CAPACITANCE AND RATED VOLTAGE, V
R
(VOLTAGE CODE) RANGE
(LETTER DENOTES CASE SIZE)
BS CECC30801-005
Capacitance
μF
Code
0.10
104
0.15
154
0.22
224
0.33
334
0.47
474
0.68
684
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
106
15
156
22
226
33
336
47
476
68
686
100
107
150
157
220
227
Rated Voltage DC (V
R
) at 85ºC
6.3V (J)
10V (A)
16V (C)
20V (D)
25V (E)
A
A
A
A/B
A/B
B/C
B/C/D
C
C/D
C/D
D
A
A
A
A/B
B
B/C
B/C/D
C
C/D
D
D
D
A
A
A/B
A/B
B/C
B/C
B/C/D
C
C/D
D
D
D
A
A
A
B
B
B/C
C/D
C
C/D
D
D
A
A
A
A/B
B
B/C
C
C/D
C/D
D
D
35V (V)
A
A
A
A
A/B
A/B
B
B/C
B/C
C/D
C/D
D
D
D
50V (T)
A
A/B
A/B
B
C
C
C
D
D
D
D
D
BS CECC30801-011 (CTC4)
Capacitance
μF
Code
0.10
104
0.15
154
0.22
224
0.33
334
0.47
474
0.68
684
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
106
15
156
22
226
33
336
47
476
68
686
100
107
150
157
220
227
Rated Voltage DC (V
R
) at 85ºC
6.3V (J)
10V (A)
16V (C)
20V (D)
25V (E)
A
A
A
A
A
B
B
B
C
C
C
D
D
D
D
D
D
D
D
C
D
D
C
B
B
35V (V)
A
A
A
A
B
B
B
C
C
C
D
D
D
50V (T)
A
B
B
B
C
C
C
D
D
D
D
NOTE: Voltage ratings are minimum values. AVX reserves the rights to supply higher voltage rating in the same case size, to the same reliability standards.
90
■
JUNE 2013
