TAJD685K050BY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> TAJD685K050BY

TAJD685K050BY: DescriptionCAPACITOR, TANTALUM, SOLID; CategoryPassive components capacitor; File Size131KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

TAJD685K050BY Overview

CAPACITOR, TANTALUM, SOLID

TAJD685K050BY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6.8 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	2.9 mm
JESD-609 code	e4
length	7.3 mm
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	CECC30801-005
size code	2917
surface mount	YES
Terminal surface	Gold (Au)
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

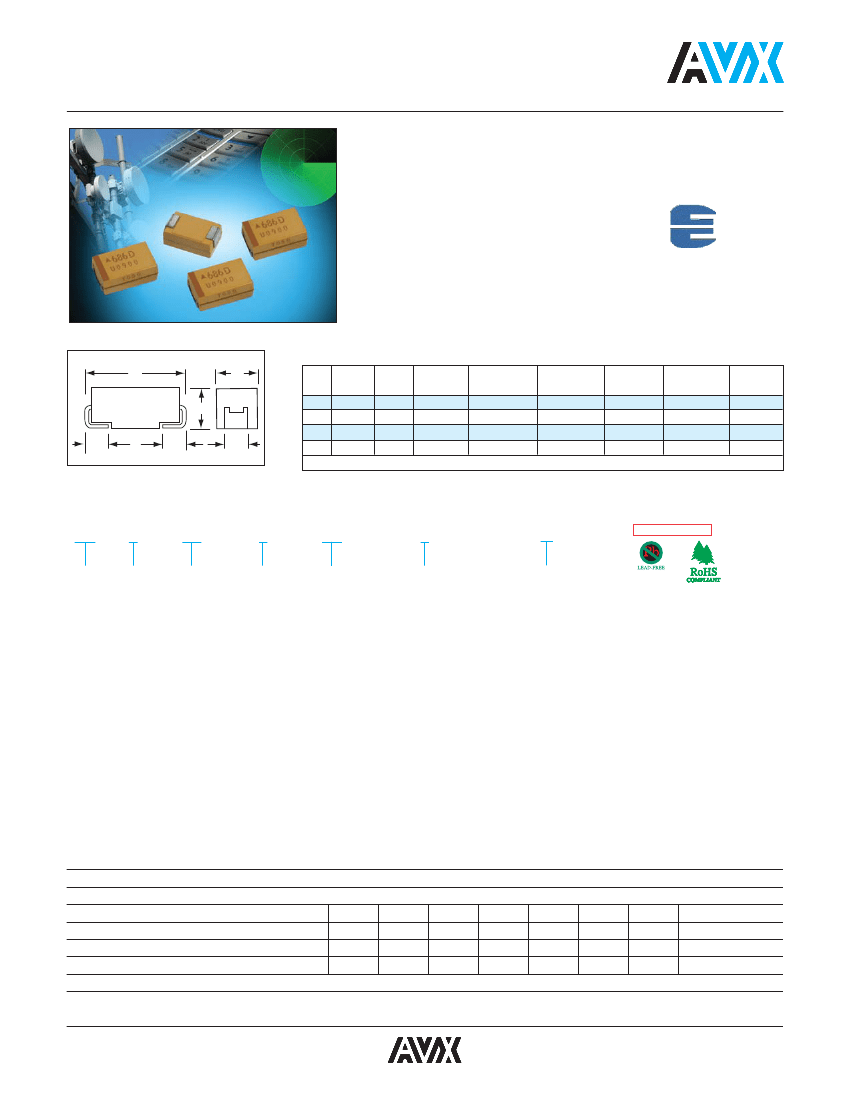

TAJ CECC Tantalum Capacitors

SMD Solid Tantalum Chip Capacitors

Capacitors, Fixed, Leadless Surface Mount, Chip, Solid electrolyte Tantalum

for use in avionics and industrial applications, tested to CECC Specification

30801-005 and 30801-011 (CTC4).

CECC

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

3216-18

3528-21

6032-28

7343-31

Variant

01&11

02&12

03&13

04&14

L±0.20

(0.008)

3.20 (0.126)

3.50 (0.138)

6.00 (0.236)

7.30 (0.287)

W+0.20 (0.008)

–0.10 (0.004)

1.60 (0.063)

2.80 (0.110)

3.20 (0.126)

4.30 (0.169)

H+0.20 (0.008)

–0.10 (0.004)

1.60 (0.063)

1.90 (0.075)

2.60 (0.102)

2.90 (0.114)

±0.20

(0.008)

1.20 (0.047)

2.20 (0.087)

2.40 (0.094)

A+0.30 (0.012)

–0.20 (0.008)

0.80 (0.031)

1.30 (0.051)

S Min.

1.10 (0.043)

1.40 (0.055)

2.90 (0.114)

4.40 (0.173)

dimension applies to the termination width for A dimensional area only.

HOW TO ORDER

TAJ

Type

Case

Size

See

table

above

475

Capacitance

Code

pF code:

1st two digits

represent

significant

figures 3rd

digit represents

multiplier

(number of

zeros to follow)

Tolerance

K = ±10%

010

Rated DC

Voltage

006 = 6.3Vdc

010 = 10Vdc

016 = 16Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

Termination Finish

R = 7" T/R 100% Tin

S = 13" T/R 100% Tin

A = Gold Plating 7" Reel

B = Gold Plating 13" Reel

H = Tin Lead 7" Reel

K = Tin Lead 13" Reel

Suffix

FJ = CECC 30801-011(CTC4)

Y = CECC 30801-005

Not RoHS Compliant

LEAD-FREE COMPATI-

BLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage DC (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Reliabilty:

All technical data relate to an ambient temperature of +25°C

0.1 μF to 100 μF

±10%; ±20%

6.3

-55°C to +125°C

1% per 1000 hours at 85ºC, V

with 0.1Ω/V series Impedance,

60% confidence level

MARCH 2013

+85°C:

+125°C:

+85°C:

+125°C:

■

TAJD685K050BY Related Products

	TAJD685K050BY	TAJD685K050RY	TAJD685K050AY	TAJD685K050SY	TAJD685K050HY	TAJD685K050KY	TAJD685M050AY	TAJD685M050SY	TAJD685M050RY	TAJD685M050BY
Description	CAPACITOR, TANTALUM, SOLID	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 6.8uF, 2917	CAPACITOR, TANTALUM, SOLID	CAPACITOR, TANTALUM, SOLID	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 6.8uF, 2917	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 20% +Tol, 20% -Tol, 6.8uF, 2917	CAPACITOR, TANTALUM, SOLID	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 20% +Tol, 20% -Tol, 6.8uF, 2917	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 20% +Tol, 20% -Tol, 6.8uF, 2917
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	incompatible	conform to	conform to	conform to	conform to
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX
package instruction	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917	, 2917
Reach Compliance Code	compliant	compliant	compliant	compliant	not_compliant	not_compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF	6.8 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
high	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm
JESD-609 code	e4	e3	e4	e3	e0	e0	e4	e3	e3	e4
length	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm	7.3 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	No	No	No	No	No	No	No	No	No	No
negative tolerance	10%	10%	10%	10%	10%	10%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR, 13 Inch	TR, 7 INCH	TR, 7 Inch	TR, 13 Inch	TR, 7 Inch	TR, 13 Inch	TR, 7 Inch	TR, 13 Inch	TR, 7 Inch	TR, 13 Inch
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	10%	10%	10%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Guideline	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005	CECC30801-005
size code	2917	2917	2917	2917	2917	2917	2917	2917	2917	2917
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au)	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
width	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm
