DC15S600T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DC15S600T

DC15S600T: DescriptionD Subminiature Connector, 15 Contact(s), Female, Wire Wrap Terminal; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DC15S600T Overview

D Subminiature Connector, 15 Contact(s), Female, Wire Wrap Terminal

DC15S600T Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	4/C
Termination type	WIRE WRAP
Total number of contacts	15
UL Flammability Code	94V-0

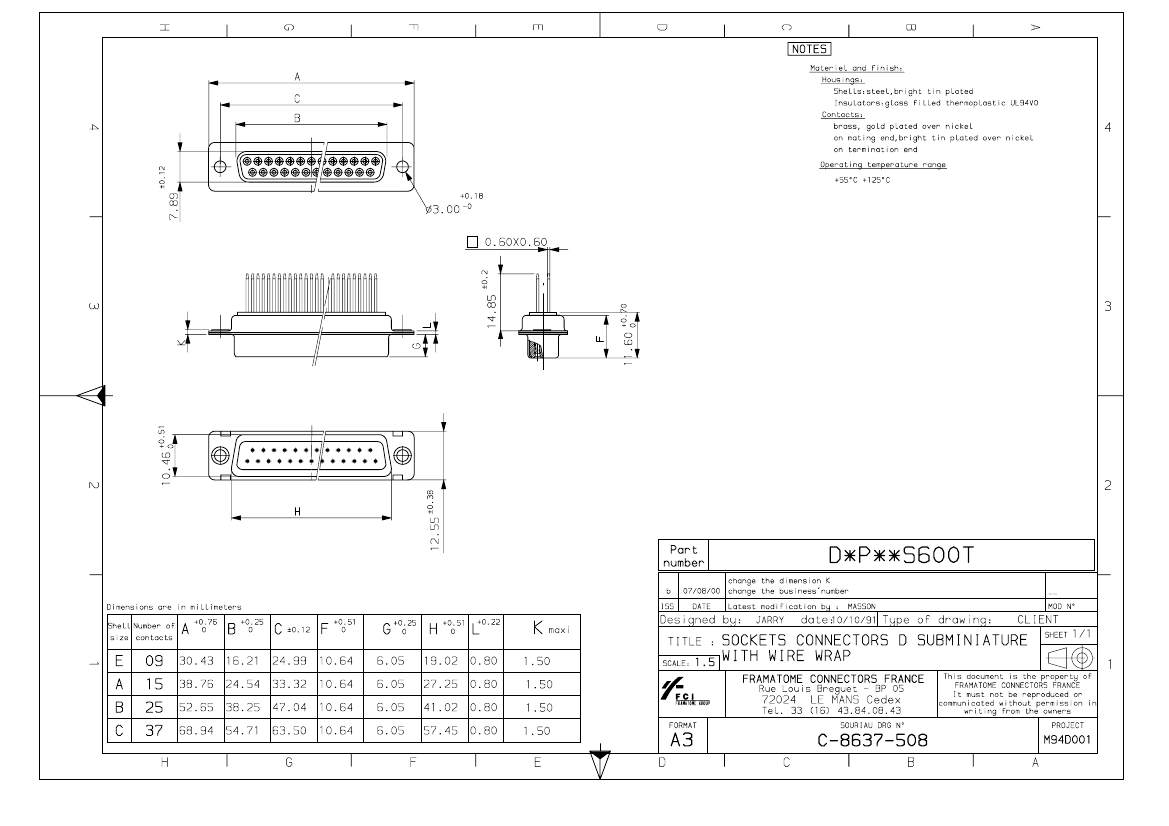

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Jan 19, 2010

DC15S600T Related Products

	DC15S600T	DB09S600T	DB15S600T	DB25S600T	DB37S600T	DC09S600T	DC25S600T
Description	D Subminiature Connector, 15 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 9 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 15 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 25 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 37 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 9 Contact(s), Female, Wire Wrap Terminal	D Subminiature Connector, 25 Contact(s), Female, Wire Wrap Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D	D	D	D
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	3/B	3/B	3/B	3/B	4/C	4/C
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	15	9	15	25	37	9	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	-	-
