SC-02-30GJ: DescriptionSingle Phase EMI Filter, 250V, 50HzHz, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size134KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SC-02-30GJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC-02-30GJ	-	-	View	Buy Now

SC-02-30GJ Overview

Single Phase EMI Filter, 250V, 50HzHz, ROHS COMPLIANT PACKAGE-4

SC-02-30GJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TOKO, INC.
Reach Compliance Code	unknown
Other features	INDUCTANCE 3 MILLI HENRY
filter type	SINGLE PHASE EMI FILTER
high	20 mm
Minimum insulation resistance	100 MΩ
length	17.5 mm
Installation type	THROUGH HOLE MOUNT
working frequency	50Hz Hz
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
physical size	L17.5XB17.0XH20.0 (mm)/L0.689XB0.669XH0.787 (inch)
Rated current	2 A
Rated voltage	250 V
width	17 mm

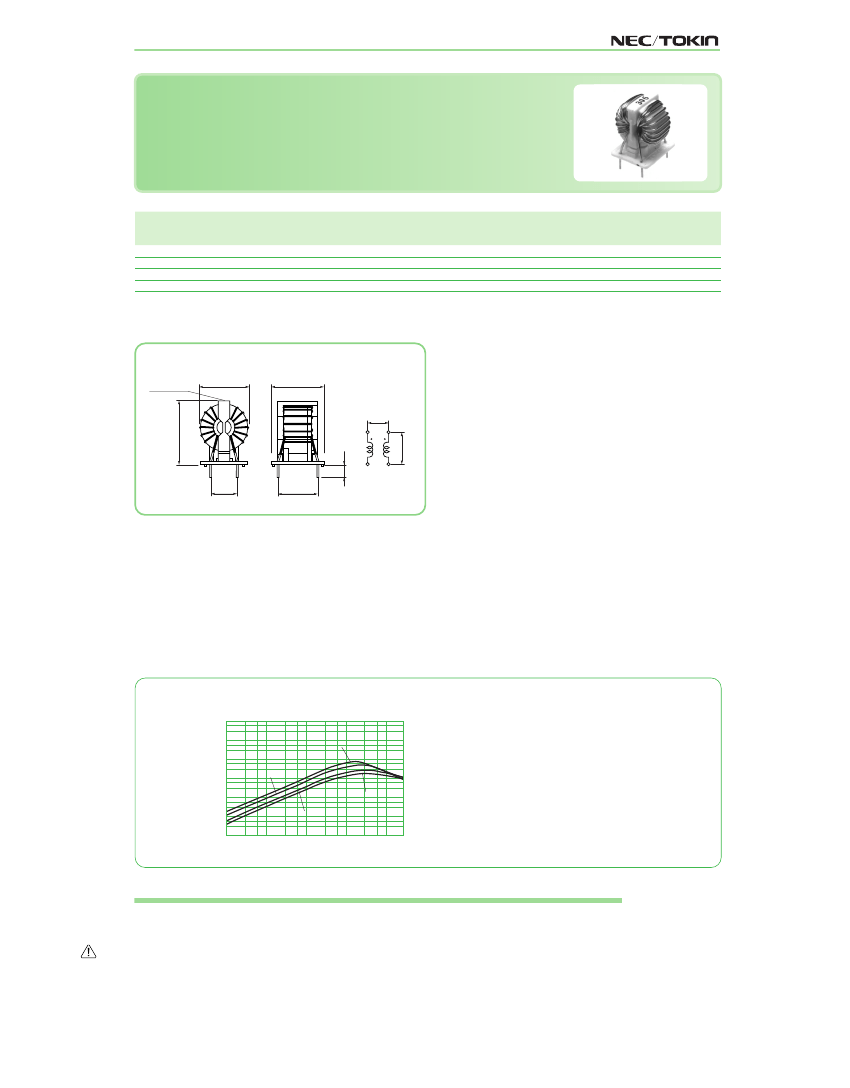

Preview

Download Datasheet

View All

Common mode

SC Coils – Terminal Base Type

SC-GJ Type

[RoHS Compliant]

Model

SC-02-20GJ

SC-02-30GJ

SC-03-06GJ

SC-03-10GJ

Rated

current

(A)

2

3

Inductance

(mH)

min.

2.0

3.0

0.6

1.0

DC resistance

(m /line)

max.

80

100

35

40

Temperature

rise(K)

max.

40

Wire size

(mmø)

Marking

0.5

0.6

220

230

306

310

Weight

approx.

(g)

9

10

8

9

• Rated voltage: 250VAC/VDC • Withstanding voltage: AC 2400V (2 sec between lines)

• Insulation resistance: at 500VDC, more than 100M (between lines) • Thermal class: E (120˚C)

• Operating temperature range (˚C): –25 to T (T=120–temperature rise)

• Inductance measurement condition:100kHz, 1mA, KC547

Shape and Dimensions

Marking

17.5 max.

17 max.

20 max.

(8.0)

5.0±2.0

(8.0)

(13)

Frequency characteristic

1M

1

6

3

100K

1

Impedance ( )

6

3

02-30GJ

10K

1

6

3

1K

1

6

3

02-20GJ

100

1

6

3

03-06GJ

03-10GJ

3

6

1

3

6

1

3

6

1

3

6

1

3

10

1

1K

6

3

10K

100K

1M

10M

Frequency (Hz)

(13)

[mm]

30M

AC Line Filters VOL.08

●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.

●Please request for a specification sheet for detailed product data prior to the purchase.

●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.

2008.03.06 P0915MCAF10VOL08E
