D09S13A6PL00LF: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D09S13A6PL00LF Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE

D09S13A6PL00LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

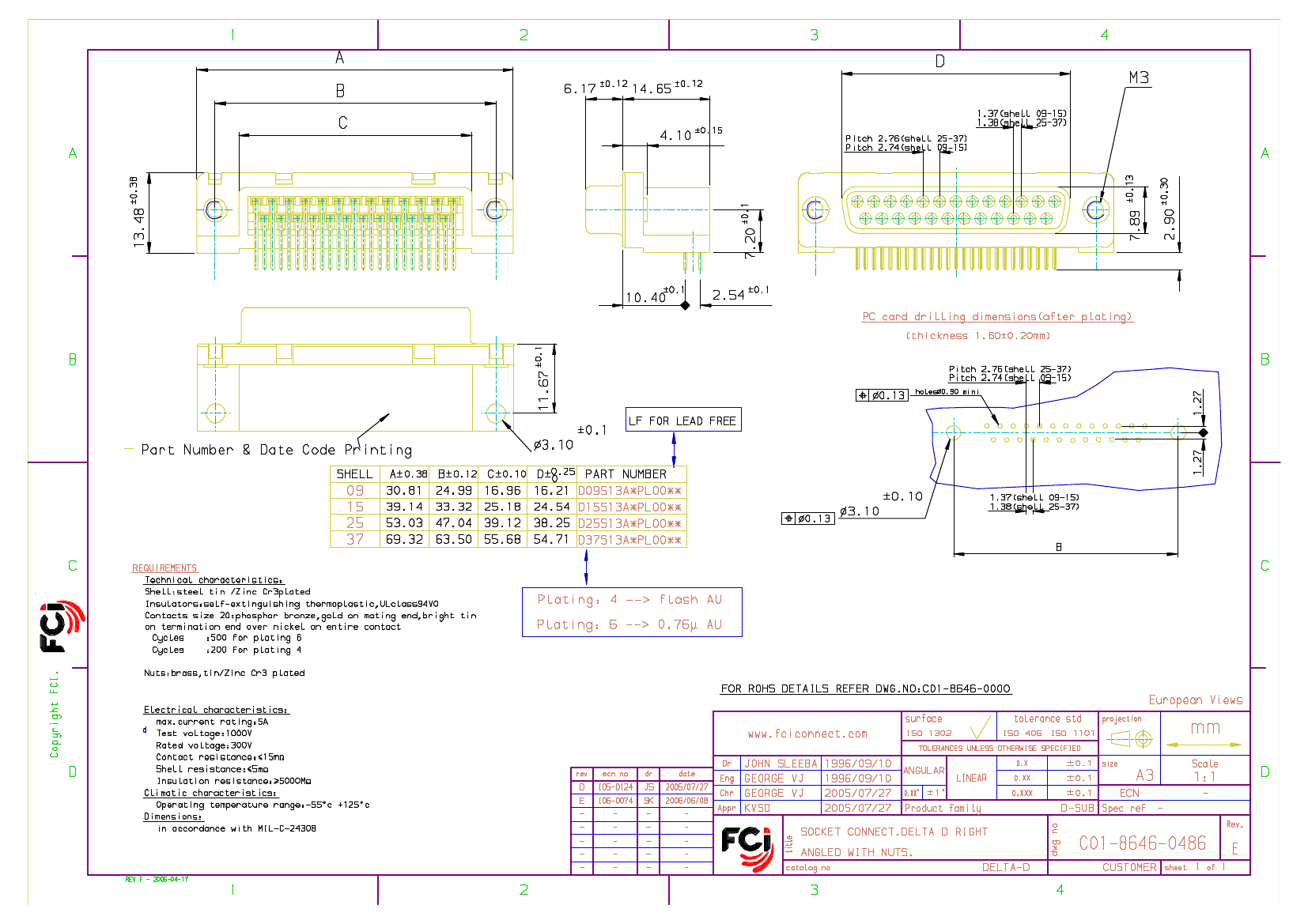

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Jan 18, 2011

.

D09S13A6PL00LF Related Products

	D09S13A6PL00LF	D25S13A4PL00LF	D37S13A4PL00LF	D09S13A4PL00LF	D15S13A4PL00LF	D15S13A6PL00LF	D25S13A6PL00LF	D37S13A6PL00LF
Description	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D-Sub Standard Board Mount Connector, Input Output Connectors, Signal 25 way Socket Right Angle Solder Europe standard, 200 cycles, Threaded Insert M3, 1.6mm PCB thickness.	CONN D-SUB RCPT 37POS R/A SOLDER	CONN D-SUB RCPT 9POS R/A SOLDER	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD AND PANEL	BOARD	BOARD	BOARD	BOARD	BOARD AND PANEL	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	3/B	4/C	1/E	2/A	2/A	3/B	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	25	37	9	15	15	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN OVER NICKEL	NOT APPLICABLE	-	NOT APPLICABLE	TIN OVER NICKEL	TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL
JESD-609 code	e3	-	-	-	e3	e3	e3	e3
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
