D09S23B6PL4A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D09S23B6PL4A

D09S23B6PL4A: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D09S23B6PL4A Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket

D09S23B6PL4A Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	D09S23B6PL4A
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

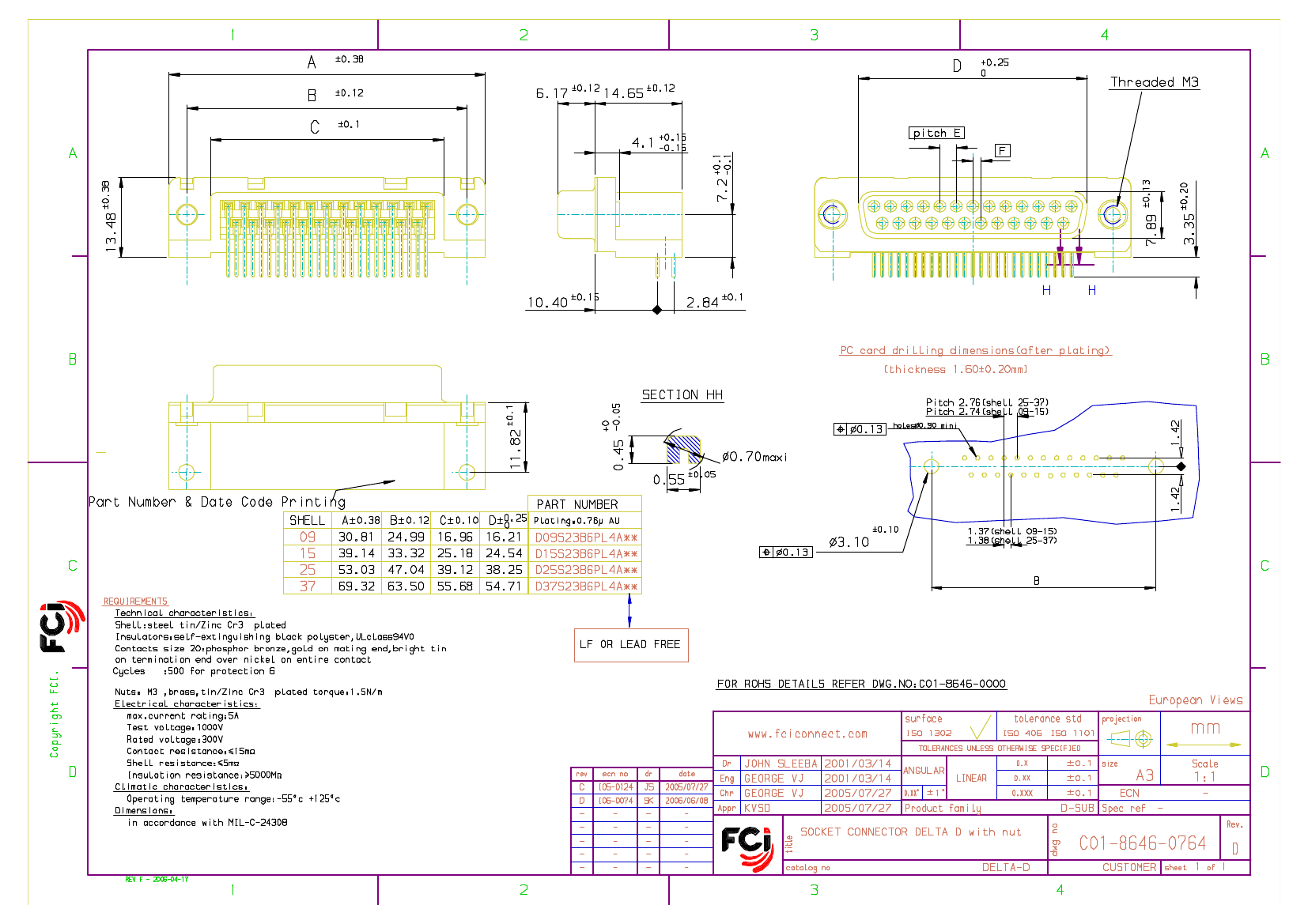

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

D09S23B6PL4A Related Products

	D09S23B6PL4A	D15S23B6PL4ALF	D15S23B6PL4A	D37S23B6PL4A	D37S23B6PL4ALF	D25S23B6PL4ALF	D25S23B6PL4A	D09S23B6PL4ALF
Description	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D09S23B6PL4A	D15S23B6PL4A	D15S23B6PL4A	D37S23B6PL4A	D37S23B6PL4A	D25S23B6PL4A	D25S23B6PL4A	D09S23B6PL4A
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	2/A	2/A	4/C	4/C	3/B	3/B	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	15	15	37	37	25	25	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	1	1	-
