BCU81-SMD

Description
3000mA, 10V, NPN, Si, SMALL SIGNAL TRANSISTOR
CategoryDiscrete semiconductor    The transistor
File Size88KB,4 Pages
ManufacturerSEMELAB
Download Datasheet Parametric View All

BCU81-SMD Overview

3000mA, 10V, NPN, Si, SMALL SIGNAL TRANSISTOR

BCU81-SMD Parametric

Parameter NameAttribute value
MakerSEMELAB
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)3 A
Collector-emitter maximum voltage10 V
ConfigurationSINGLE
Minimum DC current gain (hFE)140
JESD-30 codeR-PSSO-F3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationSINGLE
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
BCU81-SMD
MECHANICAL DATA
Dimensions in mm
4 .5
1 .6
1 .5
NPN EPITAXIAL PLANAR
SILICON TRANSISTOR
Ideal for high current driver applications
requiring low loss devices
4 .2 5 m a x .
2 .5
FEATURES
• LOW V
CE(SAT)
• HIGH CURRENT
• HIGH ENERGY RATING
0 .4 0
0 .5 0
1 .5
3 .0
1 .0
0 .4 0
APPLICATIONS
-
+
*
• ANY HIGH CURRENT DRIVER
APPLICATIONS REQUIRING
EFFICIENT LOW LOSS DEVICES
SOT89
ABSOLUTE MAXIMUM RATINGS
(Tcase = 25°C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
stg
Collector – Base voltage
Collector – Emitter voltage (I
B
= 0)
Emitter – Base voltage
Collector current
Collector Current (Pulse)
Collector Dissipation
(Mounted on Ceramic Board (250mm
2 x 0.8mm)
Junction Temperature
Storage Temperature
30V
10V
6V
3A
5A
500mW
1.3W
150°C
–55 to 150°C

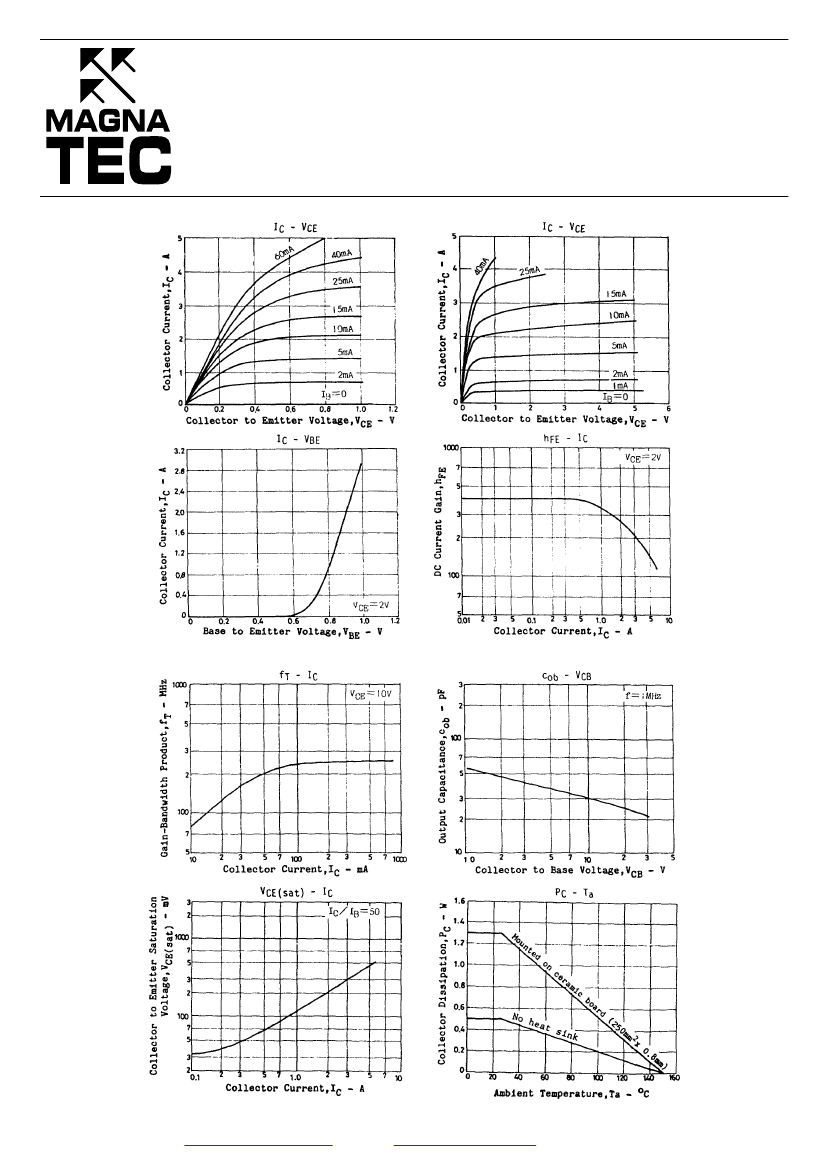

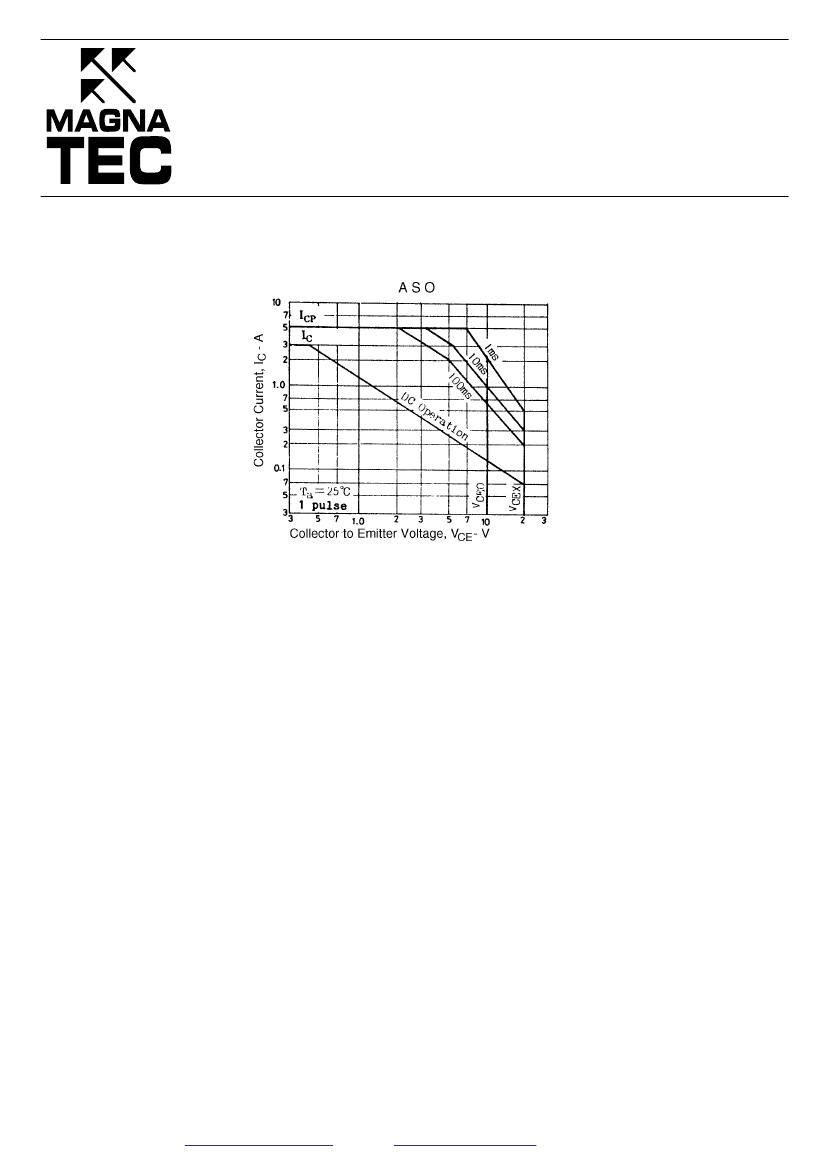

Magnatec.
Telephone +44(0)1455 554711.
Fax +44(0)1455 558843.
E-mail:
magnatec@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim.9/98
