POWER
Data Sheet
Total Power:
3 Watts
Input Voltage:
100 - 254 Vac
# of Outputs:
Single
Special FeatureS

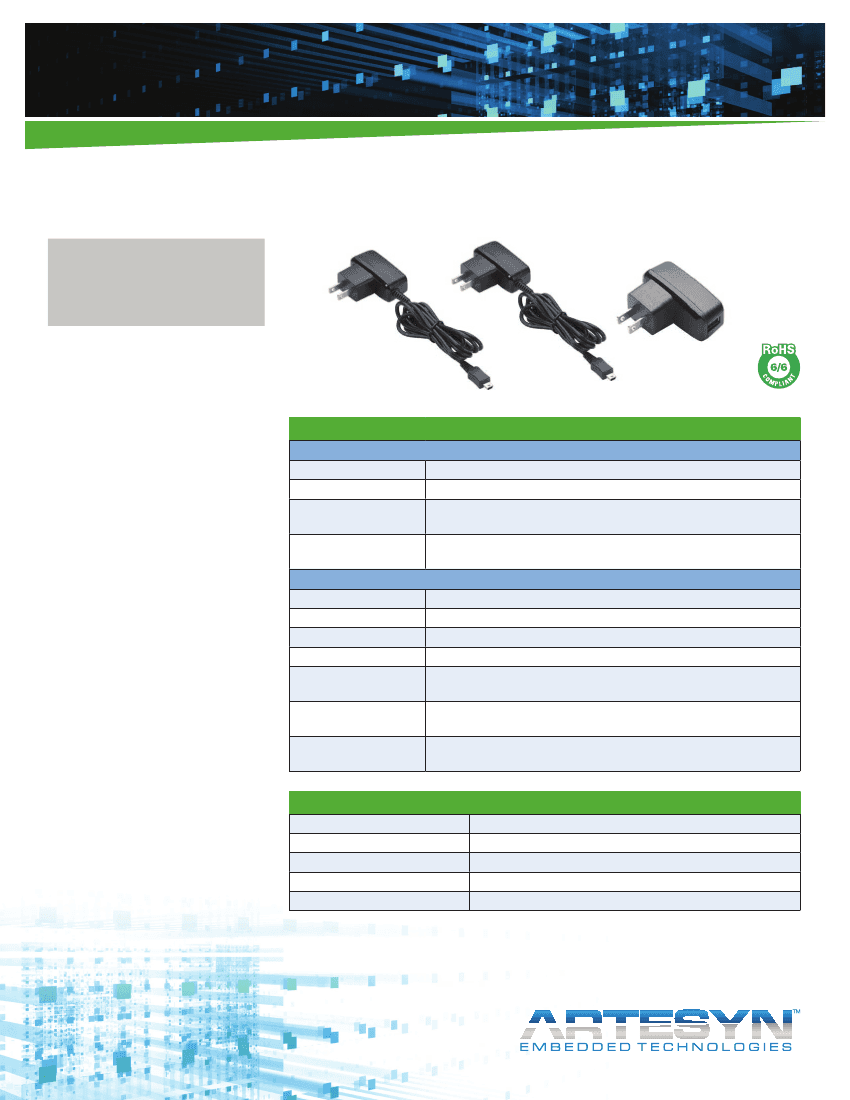

USB Switching wallmount
power supply
Universal AC input
Available in multiple DC plug
configurations
Regulated output
Overload and short circuit protection
Constant voltage, constant current
Energy Star Efficiency Level IV
Built in EMI filter (CISPR 22 Class B)
Available in various output
connectors
Mini USB 2.0 dc output plug
- 0001
Micro USB 2.0 dc output plug
- 0002
Cable less version
- USB-A receptacle-0004
DCH3 Series
3 Watts
DCH3-050US-0001
DCH3-050US-0002
DCH3-050US-0004
Electrical Specifications
Input
Input range:
Frequency:
EMI/RFI:
Safety ground
leakage current:
Output
Voltage (Vo):
Maximum Power (Po):
Hold-up time:
Overvoltage protection:
Overload protection:
Output:
Connector Pinout:
5 V (4.75 - 5.25 V)
3W
25 ms. typical at full load @ 115 Vac
Single fault 10.5 V max. Latching type
Output short circuit protection auto recover
Overload protected > 800 mA
DC cable with Mini USB 2.0 -0001 suffix and Micro USB 2.0 -0002,
Cableless USB-A-0004 suffix
Pin 1: +V
Pin 5: ground
100 - 254 Vac (wide range)
47 - 63 Hz
FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B
&EMC89/336/EEC
10 μA @ 50/60 Hz, 230 Vac input
SaFety
cUL 60950/6500
CSA 60950
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic susceptibility:
Humidity:
Vibration:
0° to 45 °C ambient
-20 °C to +70 °C
Designed to meet EN55082-1
Operating; non-condensing 20% to 90% RH
Per IEC 60068-2-6
DCH3 Series Data Sheet

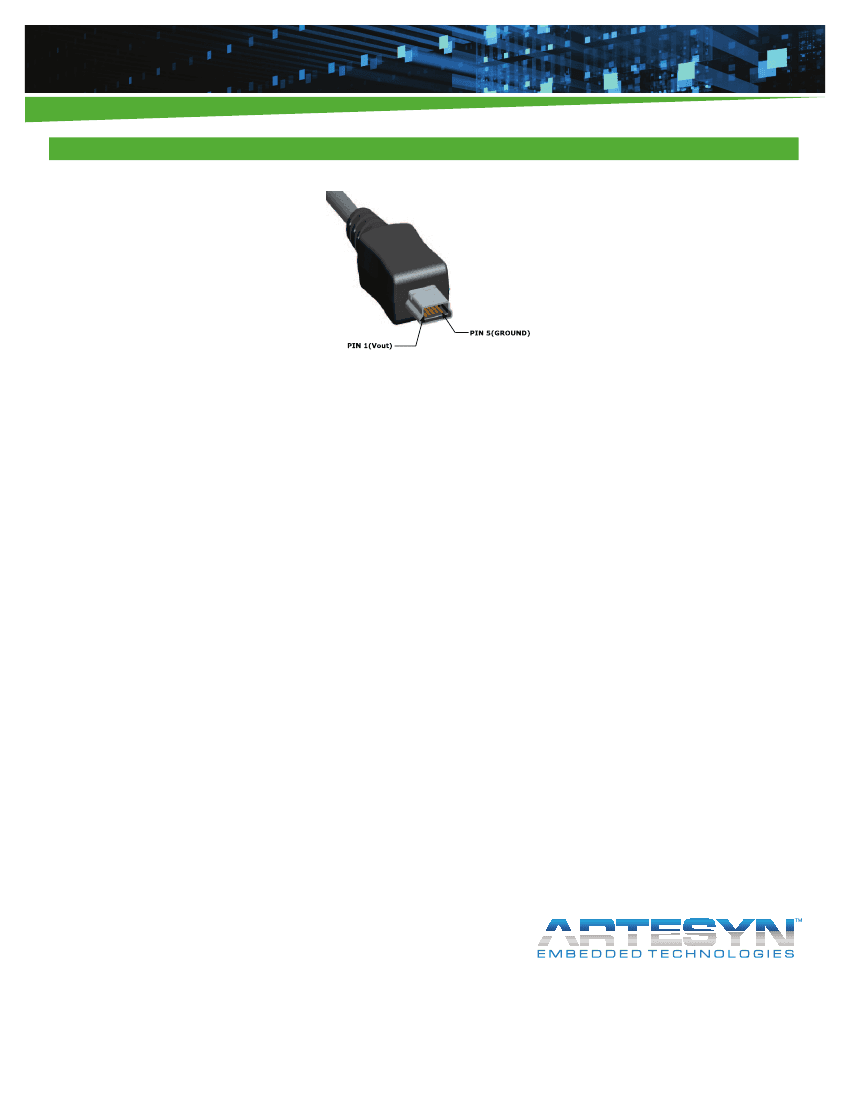

Pin Assignments
Notes:
1. Specifications subject to change without notice.

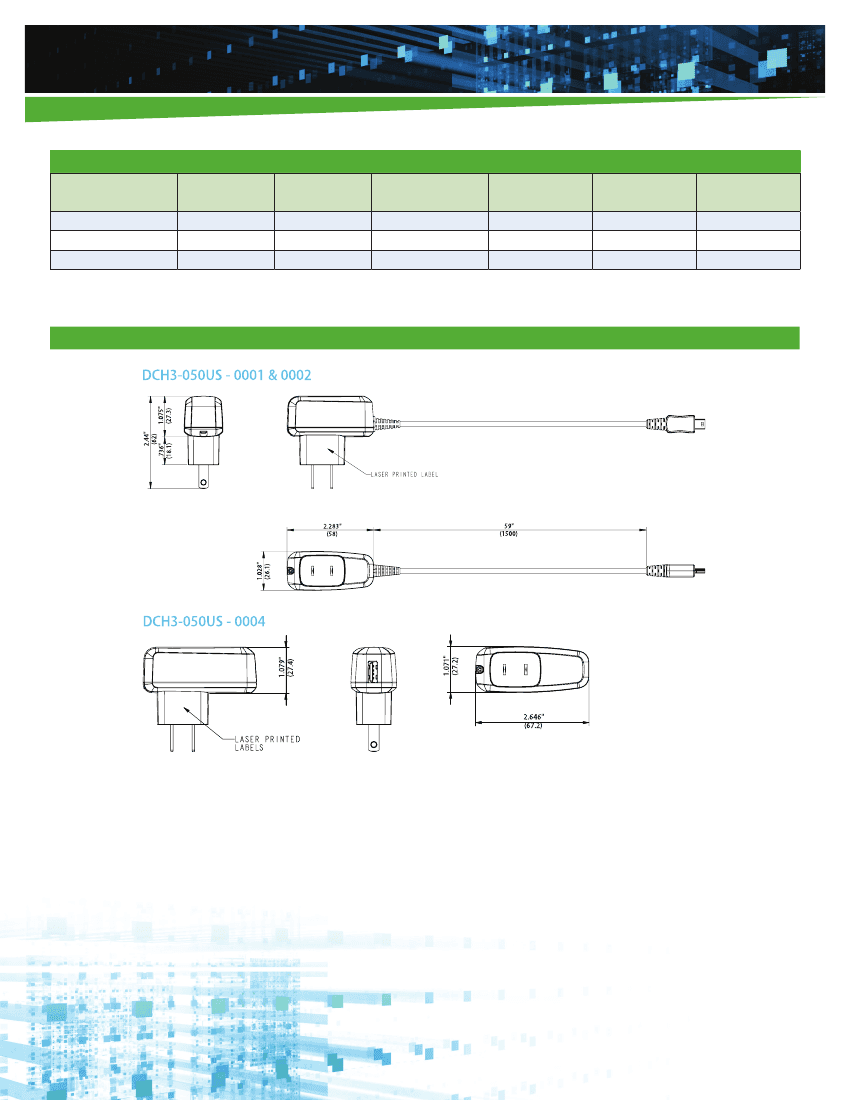

2. All dimensions in inches (mm), tolerance is ± .02”.
3. Warranty: 2 years
4. Weight: 0.144 lb./0.066kg.
