Features
■
Size: 8 mm diameter, 8 mm length
■
Axial leaded device
■
High voltage range up to 6 kV
■
High insulation resistance
■
RoHS compliant*
■
Applications
■
Industrial equipment/electronics
■
Telecommunications electronics
■
Consumer electronics
*R
oH
S
CO
M
UL Recognized

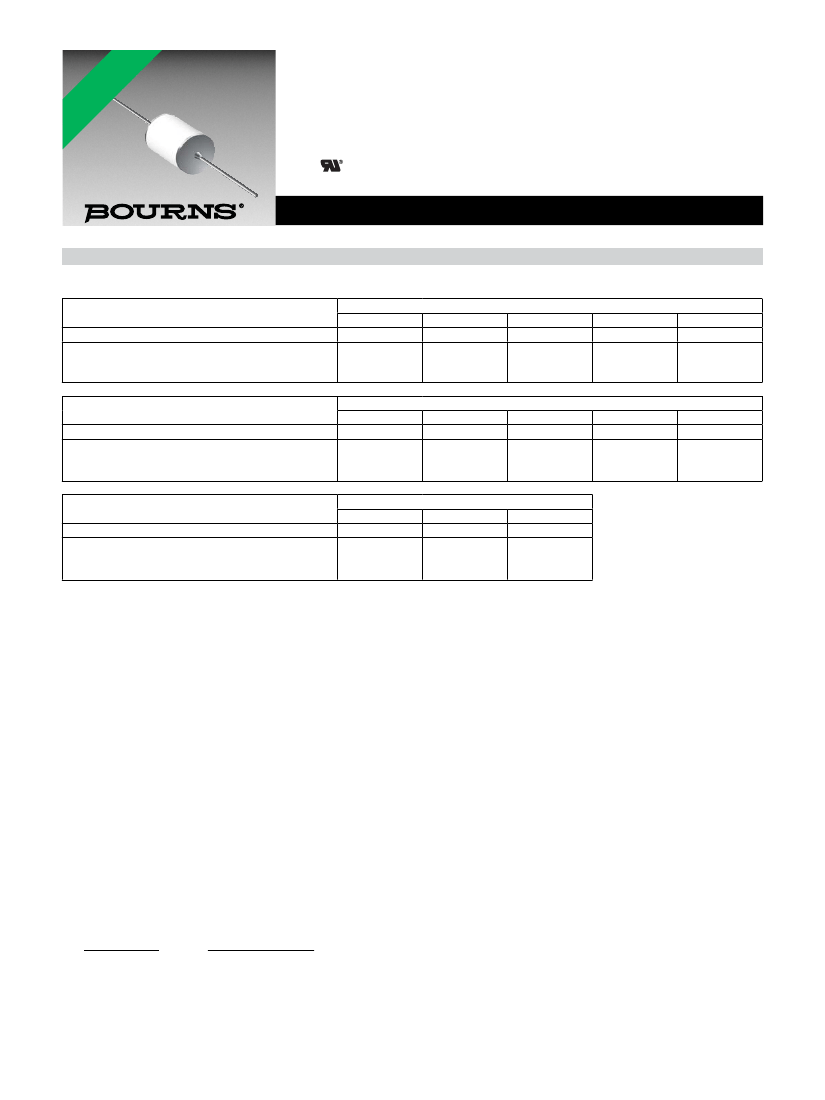

2095 Series
High Voltage 2-Electrode Gas Discharge Tube
Characteristics
Test Methods per ITU-T (CCITT) K.12 and IEC 61643-311.
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
(1)
2095-80
800 V
< 1100 V
< 1200 V
2095-100
1000 V
< 1300 V
< 1400 V
Model No.
2095-140
1400 V
< 2100 V
< 2200 V
Model No.
2095-300
3000 V
< 4100 V
< 4200 V
2095-160
1600 V
< 2300 V
< 2400 V
2095-200
2000 V
< 2700 V
< 2800 V
2095-250
2500 V
< 3500 V
< 3600 V
2095-270
2700 V
< 3600 V
< 3800 V
Model No.
2095-500
5000 V
< 6000 V
< 6400 V
2095-350
3500 V
< 4900 V
< 5000 V
2095-400
4000 V
< 5300 V
< 5500 V
2095-450
4500 V
< 5800 V
< 6000 V
2095-600
6000 V
< 7000 V
< 7800 V
Impulse Sparkover voltage is defined as typical values of distribution.
Insulation Resistance (IR)
(2)
............................ 250/500/1000 Vdc.............................................> 1 GΩ
Glow Voltage ................................................... 10 mA................................................................~ 60 V
Arc Voltage ...................................................... 1 A .....................................................................~ 15 V
Capacitance..................................................... 1 MHz ...............................................................< 1.5 pF
Impulse Discharge Current
2095-80 through 2095-250 ......................... 8,000 A, 8/20 µs ................................................ 1 operation
5,000 A, 8/20 µs ................................................ 10 operations
2095-270 through 2095-600 ....................... 5,000 A, 8/20 µs ................................................ 1 operation
3,000 A, 8/20 µs ................................................ 10 operations
Alternating Discharge Current
2095-80 through 2095-250 ......................... 2 Arms, 50 Hz, 1 second................................... 1 operation min.
10 Arms, 50 Hz, 9 cycles .................................. 1 operation min.
2095-270 through 2095-300 ....................... 3 Arms, 50 Hz, 1 second................................... 1 operation min.
5 Arms, 50 Hz, 9 cycles .................................... 1 operation min.
2095-350 through 2095-600
2.5 Arms, 50 Hz, 1 second................................ 1 operation min.
5 Arms, 50 Hz, 9 cycles .................................... 1 operation min.
Impulse Life ..................................................... 100 A, 10/1000 µs .............................................> 100 operations
(3)
Operating Temperature............................................................................................................... -30 to +90 °C
Storage Temperature .................................................................................................................. -40 to +115 °C
Climatic Category (IEC 60068-1)................................................................................................ 40 / 90 / 21
Notes:
• UL Recognized component: UL File E313168.
• At delivery AQL 0.65 Level II, DIN ISO 2859.
(2)
(3)
DC Breakdown
IR Measuring Voltage
800-1000 V
250 V
1400-2000 V
500 V
2500-6000 V
1000 V
Model 2095-270 and 2095-300 meet >300 operations at 100 A, 10/1000 µs.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2095 Series
High Voltage 2-Electrode Gas Discharge Tube

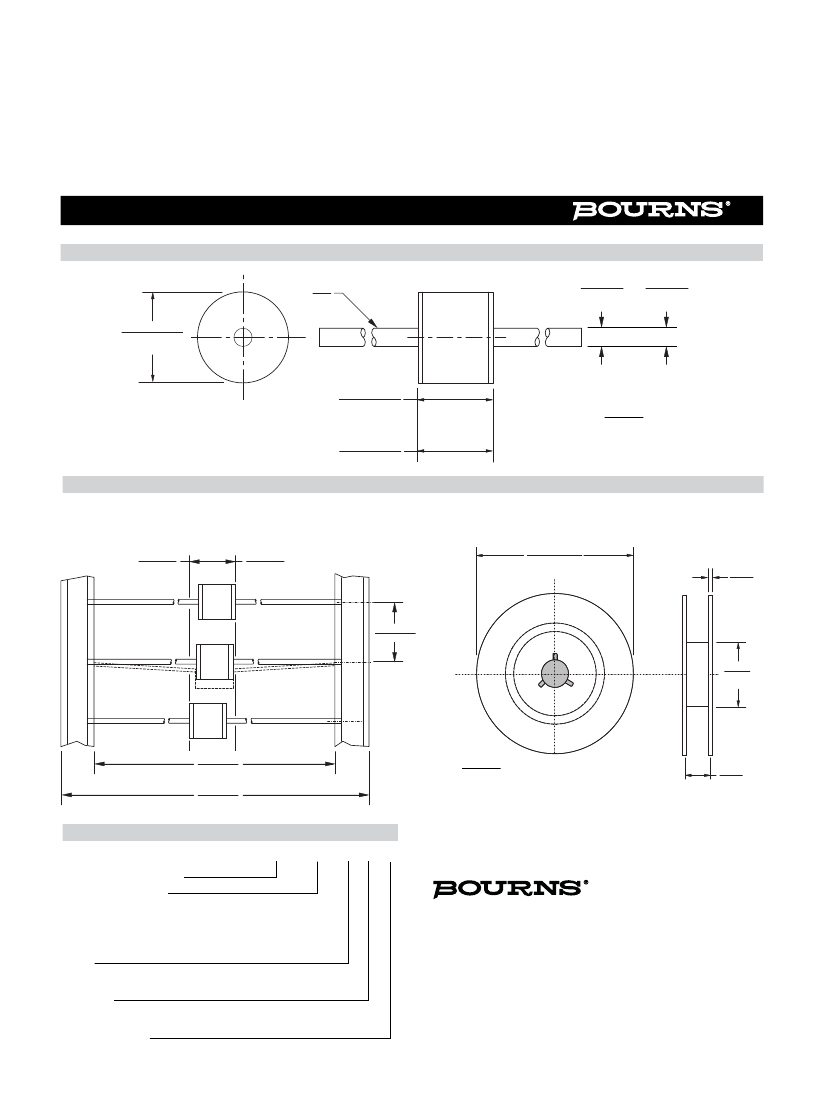

Product Dimensions
20
(0.78)
LONG
2 PLCS.
2095-xxx-B
2095-xxx-C
0.8 ± 0.05
1.0 ± 0.05
(.031 ± .002) OR (.039 ± .002)
DIA.
DIA.
MIN.
8.0 +0.3/-0.5
(.315 + .012/-.020)
DIA.
MODELS
2095-80 THRU 2095-450
8.0 +0.6/-0.1
(.315 +.024/-.004)
OR
MODELS
2095-500 & 2095-600
10.0 +0.6/-0.1
(.394 +.024/-.004)
MODELS
2095-80
THRU 2095-450
MODELS
2095-500
& 2095-600
DIMENSIONS:
MM
(INCHES)
Packaging Specifications
Model 2095 ships standard bulk, 100 pcs. per tray; 5 trays per box (500 units). The optional reelpack (-BT1) contains 500 pcs. per reel;
2 reels per box (1K units).
MODELS
2095-80 THRU 2095-450
8.0 + 1.4
(.315 + .055)
MAX.
OR
MODELS
2095-500 & 2095-600
10.0 + 1.4
(.394 + .055)
MAX.
330 ± 4.0
(12.992 ± .157)
DIA.
1.5
(.059)
TYP.
10.0 ± 0.5
(.394 ± .020)
100.0
(3.937)
TYP.
52 ± 2
(2.047 ± .079)
64 ± 3
(2.520 ± .118)
DIMENSIONS:
MM
(INCHES)
68.0
TYP.
(2.677)
How to Order
2095 - xxx - B T1 LF
Model Number Designator
Voltage (Divided by 10)
80 = 800 V
250 = 2500 V
100 = 1000 V
270 = 2700 V
140 = 1400 V
300 = 3000 V
160 = 1600 V
350 = 3500 V
200 = 2000 V
400 = 4000 V
450 = 4500 V
500 = 5000 V
600 = 6000 V
Leads
B = 0.8 mm (Available only for Models 2095-80 thru 2095-450)
C = 1.0 mm (Available only for Models 2095-500 & 2095-600)
Packaging
(Blank) = Bulk Packaging (Standard)
T1 = Reelpack (Optional)
RoHS Compliancy
LF = RoHS Compliant Product
