THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
LENGTH
2X MOLDED PCV HOOD AND
STRAIN RELIEF (GRAY)
D
PIN 1
"P1"
"P2"
C
2X MALE MINI-DIN 8
CONNECTOR
PIN 1
U.L. STYLE 2464 8-CONDUCTOR CABLE, 24AWG
GRAY PVC JACKET
C
B
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
APPROVALS
DRAWN BY
DATE
8/31/00
9/7/00
9/12/00
CATEGORY
A
NOTES:
CABLE ASSEMBLIES SHALL BE TESTED FOR CONTINUITY.
CABLE ASSEMBLIES SHALL BE INDIVIDUALLY PACKAGED IN A POLYBAG.
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2[51] / -0
>60 [1524] ≤120 [3048] = +4 / -0
>120 [3048] ≤300 [7620] = +6 / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
TJC
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
DFP
APPROVED BY
RC
MINI DIN
PRODUCT DESCRIPTION
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR

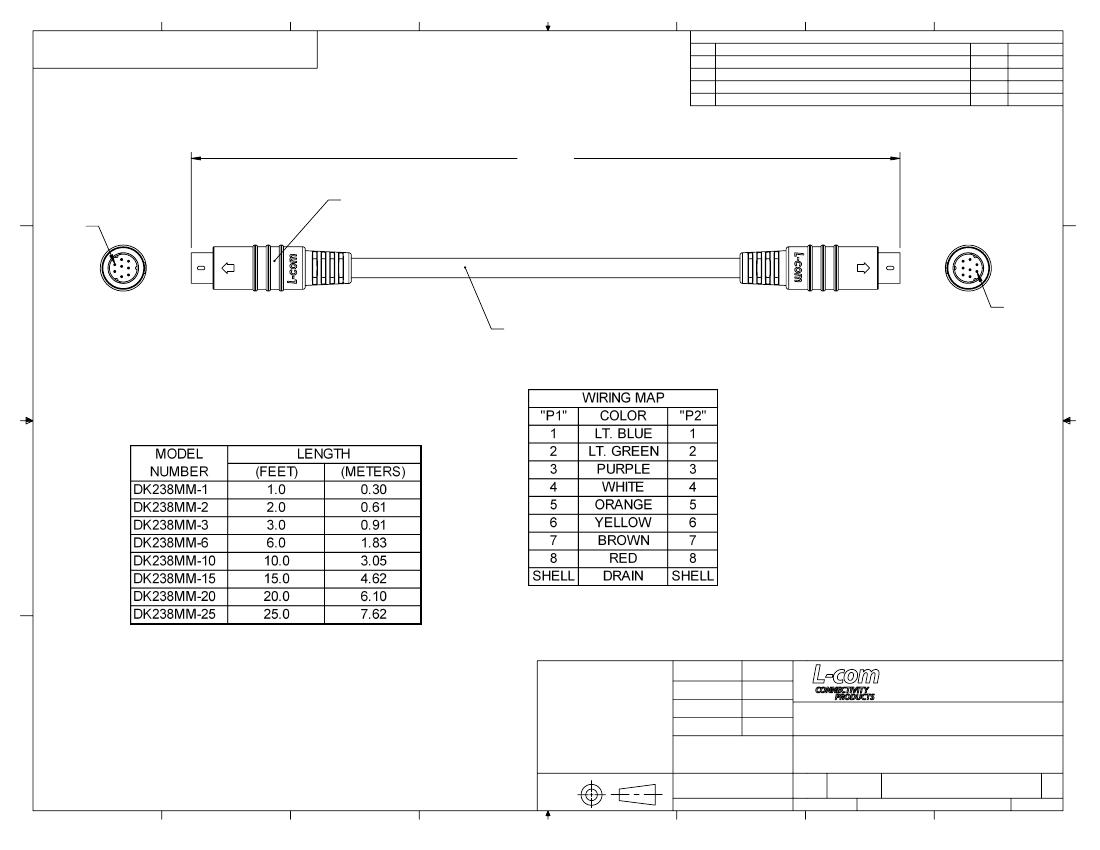

CABLE, MINI DIN M/M 8 PIN
SIZE
A
43321
2
FSCM NO.
DWG. NO.
DK238MM
1
SCALE: NONE
CAD FILE:
DK238MM.SLDDRW
SHEET 1 OF 1
