USF1040DS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> USF1040DS

USF1040DS: Description10A,400V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 400V, 10A, 1.5V, 5A, 150A; CategoryDiscrete semiconductor; File Size259KB，4 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

USF1040DS Overview

10A,400V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 400V, 10A, 1.5V, 5A, 150A

USF1040DS Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
Configuration	Dual,Common Cathode
VRRM (V) max	400
IF (A) max	10
VF (V) max	1.5
Condition1_IF (A)	5
IFSM (A) max	150
IR (uA) max	10
Condition2_VR (V)	400
trr (ns) max	25
AEC Qualified	NO
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	3
Is it lead-free?	YES
Comply with Reach	YES
RoHS compliant	YES
ECCN code	EAR99
Package Outlines	TO-252

Preview

Download Datasheet

View All

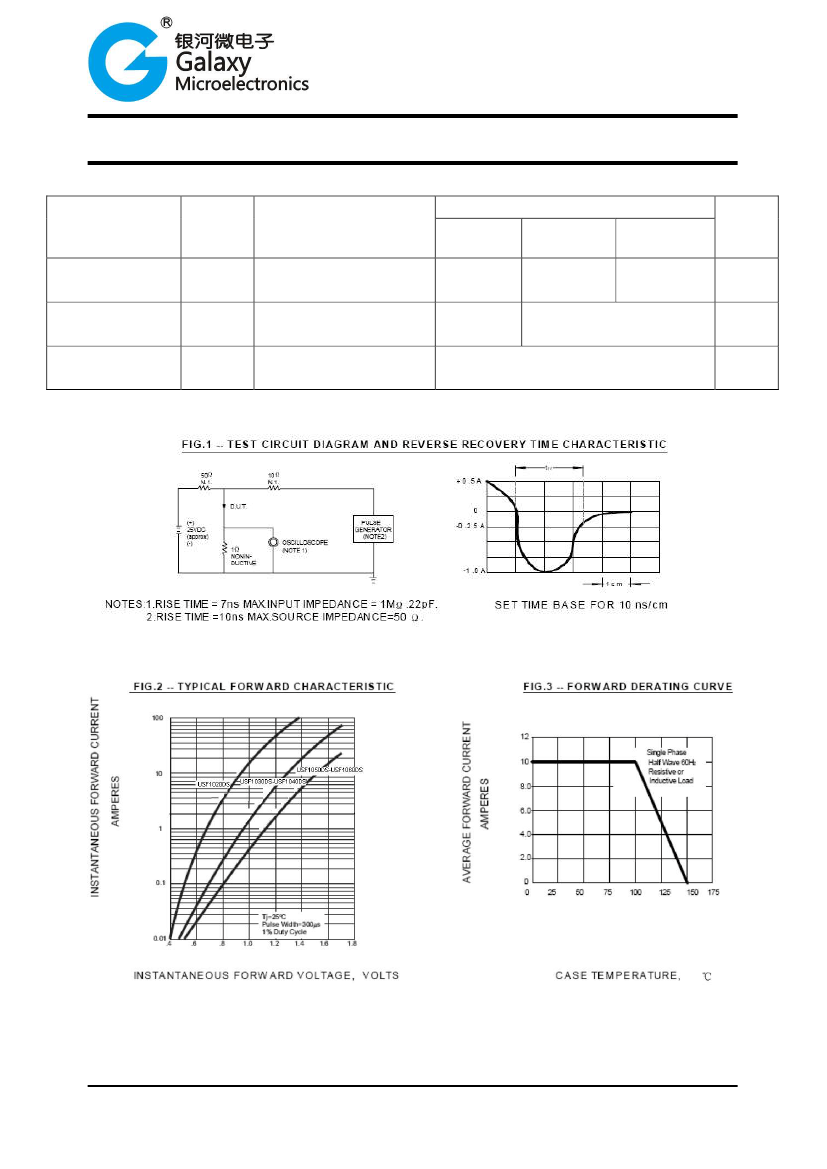

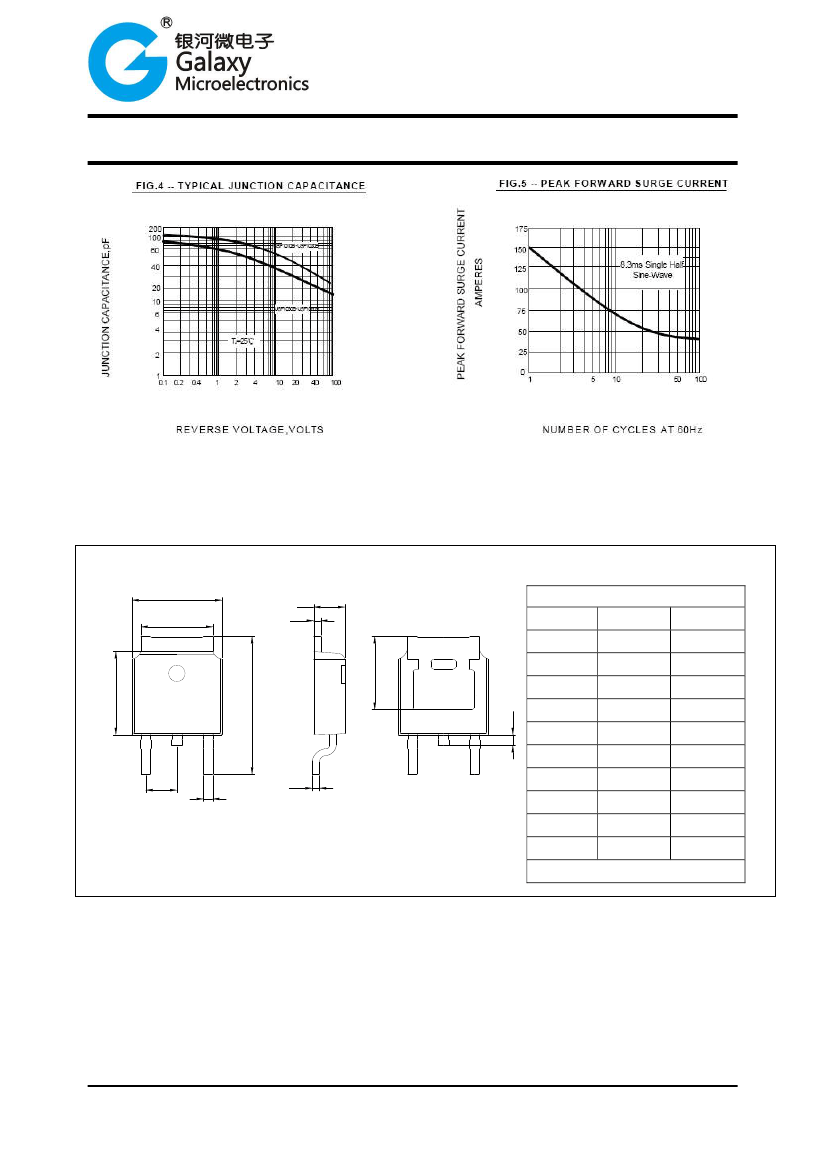

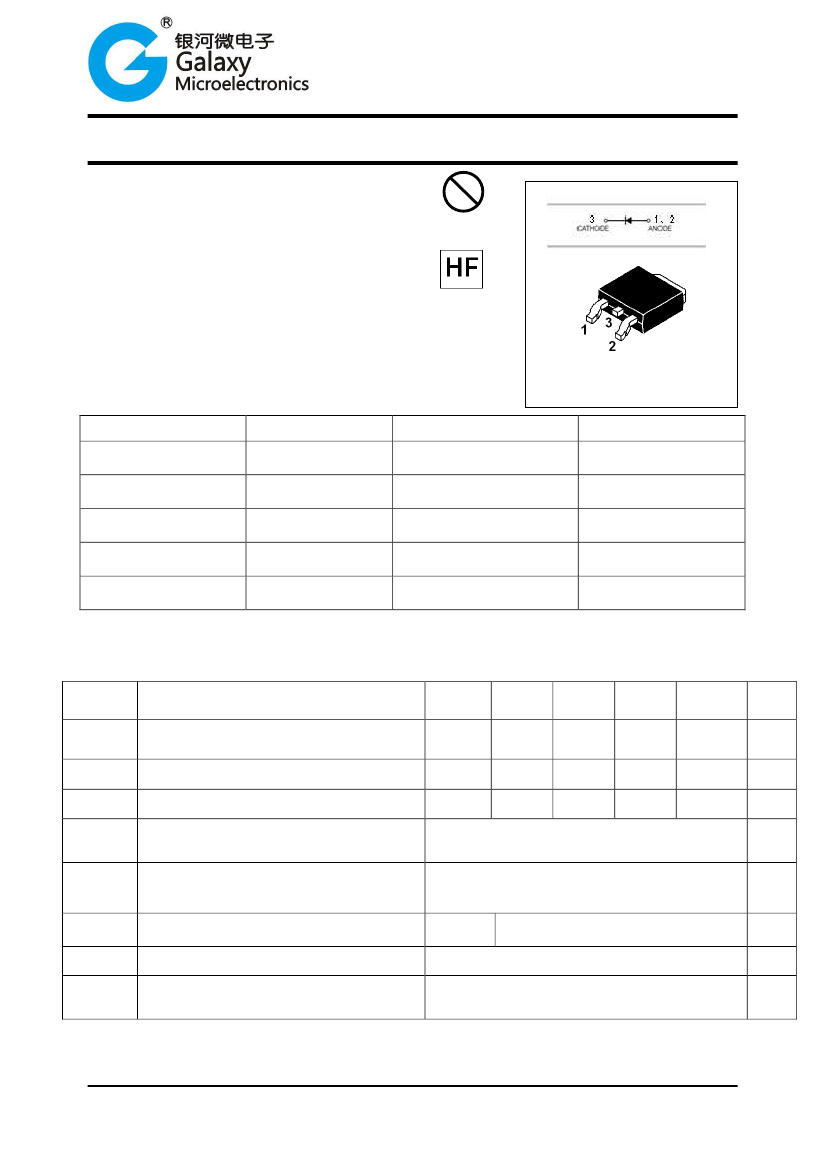

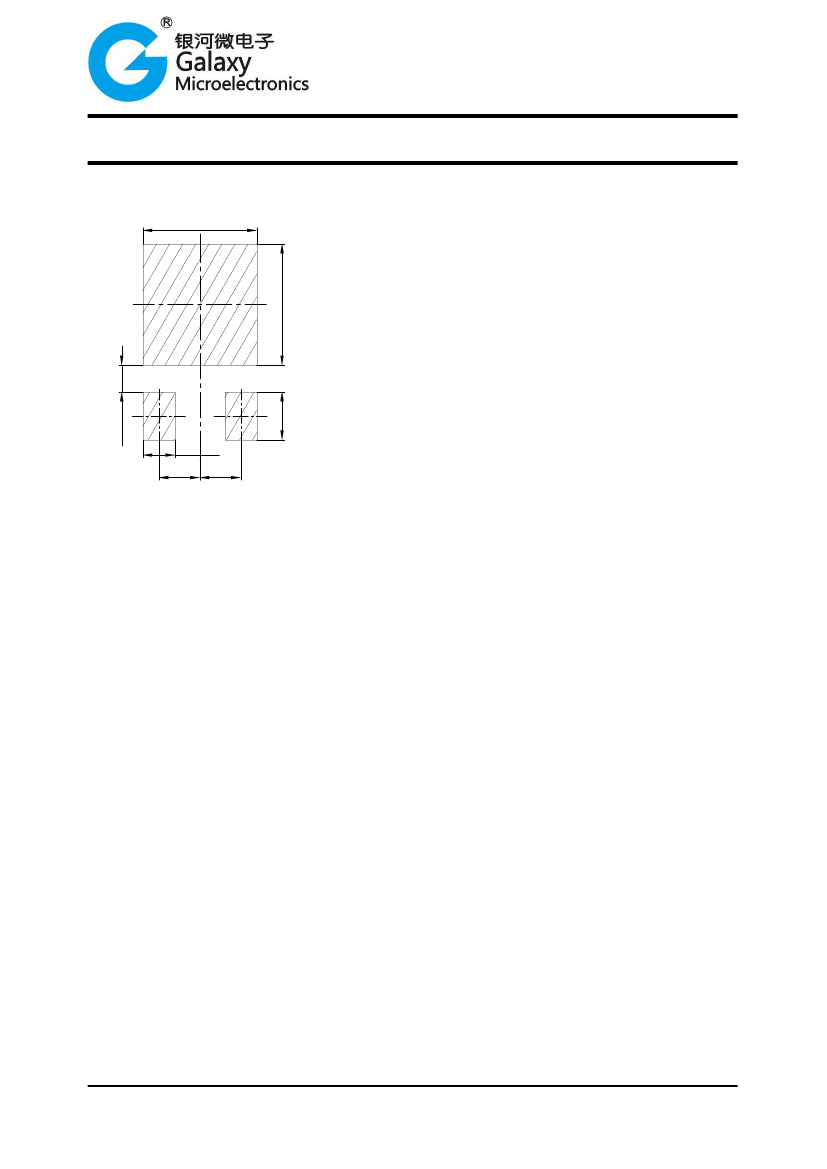

Product specification

SUPER FAST RECTIFIERS

FEATURES



Low cost.

Diffusde junction.

Low forward voltage drop.

High currnt capability.

USF1020DS-USF1060DS

Lead-free

Easily cleaned with Alcohol,Isopropanol and similar solvents.

The plastic material carries U/L recognition 94V-0.

TO-252

Ordering Information

Part Number

USF1020DS□

USF1030DS□

USF1040DS□

USF1050DS□

USF1060DS□

□:

none is for Lead Free package;

“G” is for Halogen Free package.

Package

TO-252

Shipping

80/Tube or2500/Tape Reel

Marking Code

USF1020DS

USF1030DS

USF1040DS

USF1050DS

USF1060DS

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

RRM

RMS

F(AV)

FSM

stg

Parameter

Rcurrent Peak Reverse Voltage

RMS Voltage

DC Blocking Voltage

Average Forward Rectified Current

=100℃

Peak Forward SurgeCurrent 8.3ms Single

Half Sine-wave Superimosed on Rated

Load

Typical junction capacitance(Note1)

Typical thermal resistance(Note2)

Operating Junction and Storage

Temperature Range

3.0

-55 to +150

USF

1020DS

200

140

200

USF

1030DS

300

210

300

USF

1040DS

400

280

400

150

USF

1050DS

500

350

500

USF

1060DS

600

420

600

Unit

℃/W

℃

Note:1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

2.Thermal resistance from junction to ambient.

SFM0004A

www.gmesemi.com

USF1040DS Related Products

	USF1040DS	USF1050DS	USF1060DS	USF1020DS	USF1030DS
Description	10A,400V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 400V, 10A, 1.5V, 5A, 150A	10A,500V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 500V, 10A, 2.3V, 5A, 150A	10A,600V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 600V, 10A, 2.3V, 5A, 150A	10A,200V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 200V, 10A, 0.98V, 5A, 150A	10A,300V,Super Fast Rectifiers, Diodes, Dual,Common Cathode, 300V, 10A, 1.5V, 5A, 150A
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	Dual,Common Cathode	Dual,Common Cathode	Dual,Common Cathode	Dual,Common Cathode	Dual,Common Cathode
VRRM (V) max	400	500	600	200	300
IF (A) max	10	10	10	10	10
VF (V) max	1.5	2.3	2.3	0.98	1.5
Condition1_IF (A)	5	5	5	5	5
IFSM (A) max	150	150	150	150	150
IR (uA) max	10	10	10	5	10
Condition2_VR (V)	400	500	600	200	300
trr (ns) max	25	25	25	25	25
AEC Qualified	NO	NO	NO	NO	NO
Maximum operating temperature	150	150	150	150	150
Minimum operating temperature	-55	-55	-55	-55	-55
MSL level	3	3	3	3	3
Is it lead-free?	YES	YES	YES	YES	YES
Comply with Reach	YES	YES	YES	YES	YES
RoHS compliant	YES	YES	YES	YES	YES
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	TO-252	TO-252	TO-252	TO-252	TO-252
