61327-31884 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 61327-31884

61327-31884: DescriptionCard Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size214KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

61327-31884 Overview

Card Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket

61327-31884 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LATCHED, POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	61327
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	84
UL Flammability Code	94V-0

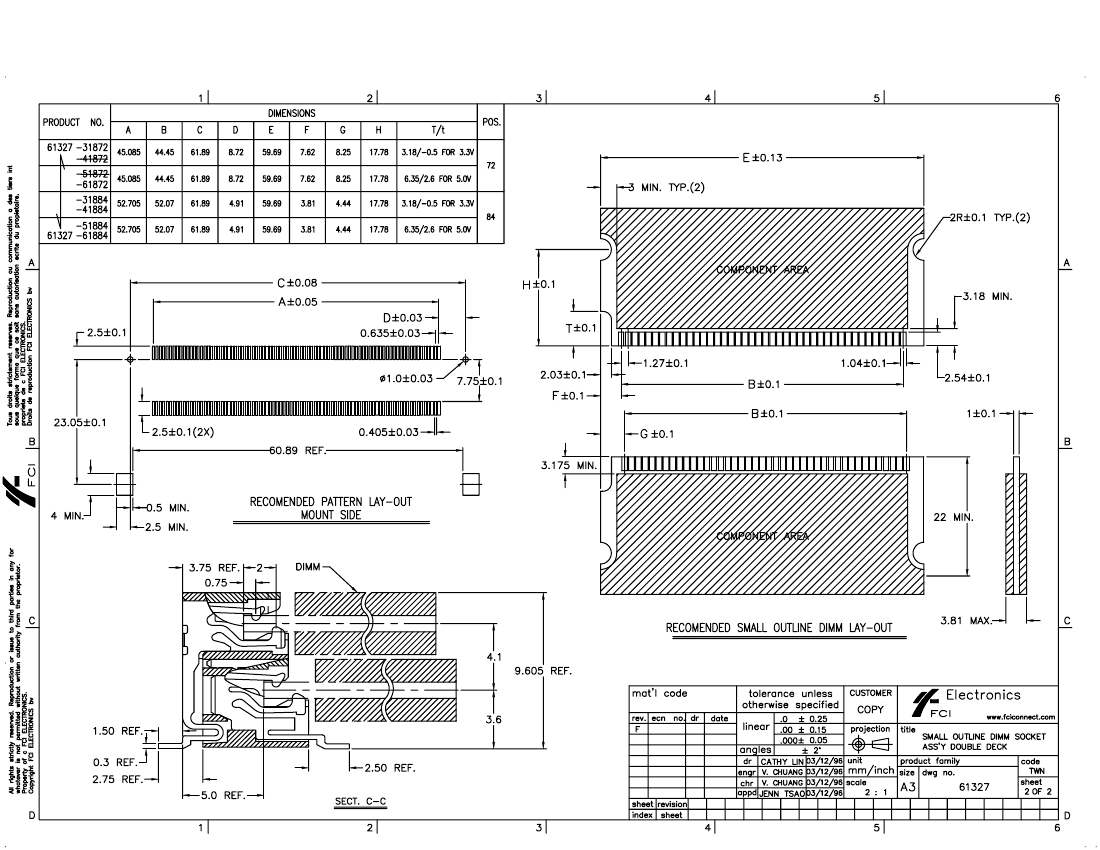

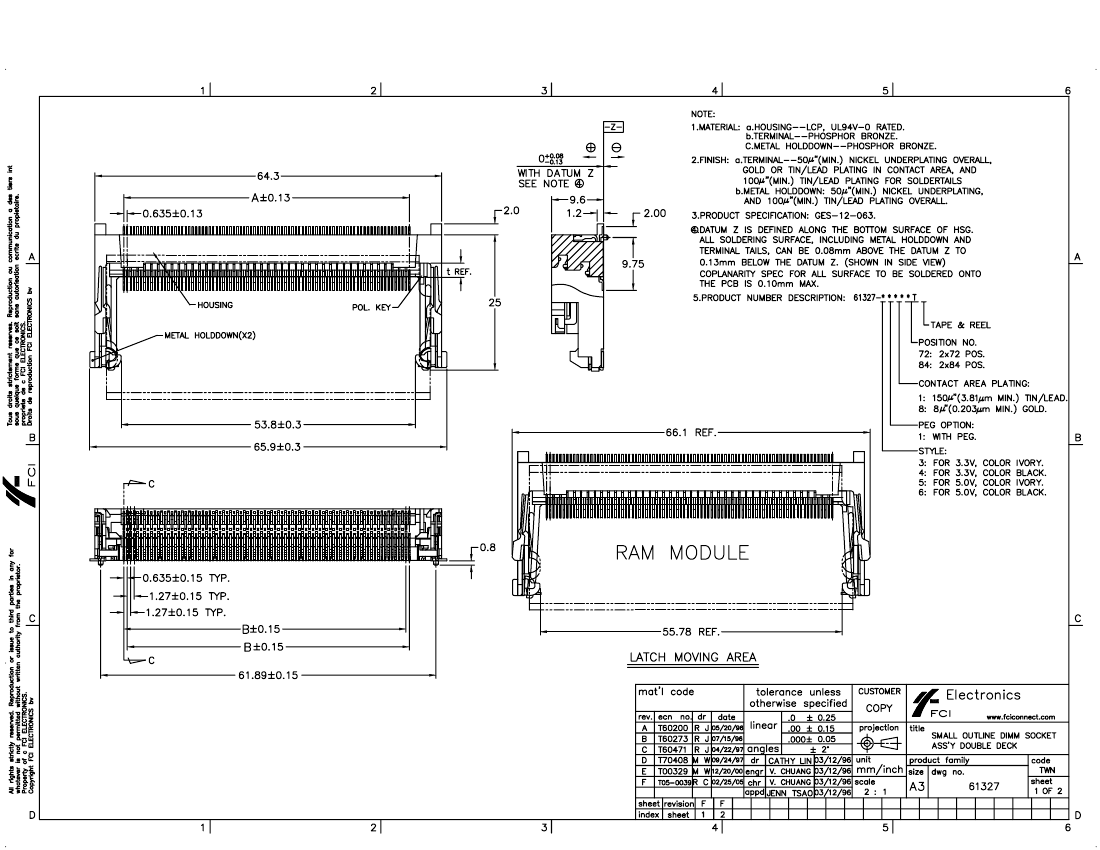

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Jul 28, 2010

61327-31884 Related Products

	61327-31884	61327-31872	61327-51872	61327-41884	61327-51884	61327-61872	61327-61884	61327-41872
Description	Card Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 84 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket	Card Edge Connector, 72 Contact(s), 4 Row(s), Female, Right Angle, Surface Mount Terminal, Socket
Reach Compliance Code	compliant	unknow	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	61327	61327	61327	61327	61327	61327	61327	61327
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	84	72	72	84	84	72	84	72
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	-	1	1	1	1	1	-
