Type N Attenuator, 50 Watt
Specifications
Electrical:
•Freq.
Range:
•VSWR:
DC-6 GHz
6 – 12.4 GHz
12.4 – 18 GHz
•Attenuation
Accuracy:
DC-6 GHz
3, 6 dB
±0.75
10, 20 dB
±0.75
30 dB
±0.75
40 dB
±1.00
•Power
(Avg):
•Power
(Peak):
•Impedance:
•Operating
Temperature:
Mechanical:
•Finish:
Connectors
Conductors
Heat Sink
Rev: A0 010708DC

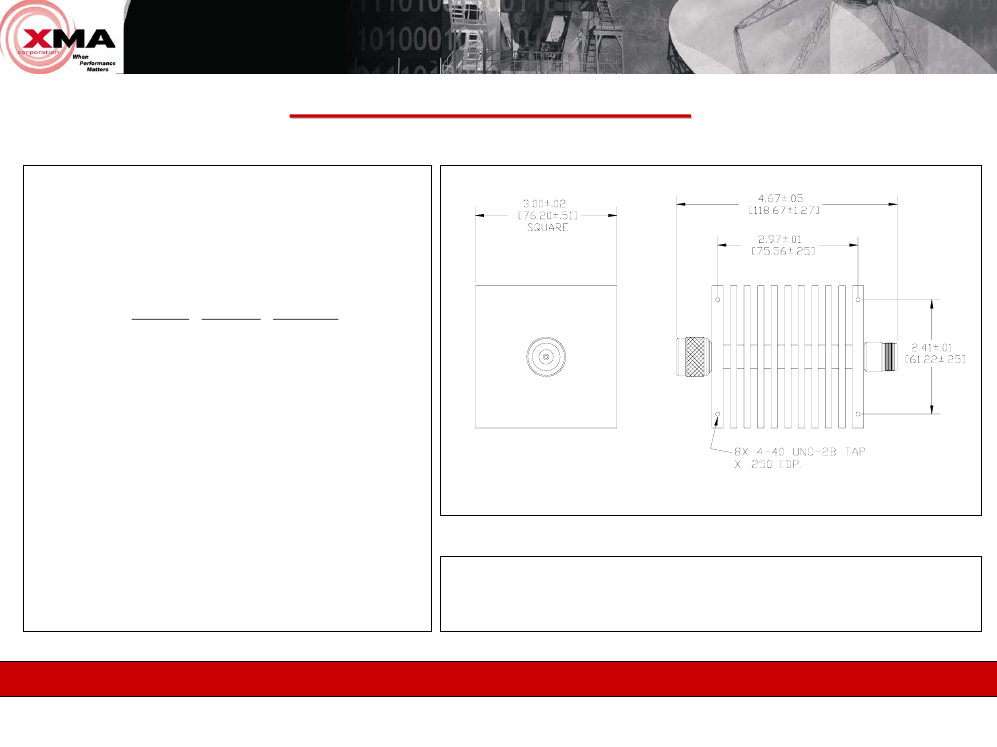

Outline Drawing
DC-6, 12.4, 18 GHz
1.25:1 Max
1.35:1 Max
1.45:1 Max
6-12.4 GHz
±0.75
±0.75
±1.00
±1.25
12.4-18 GHz
±0.75
±1.00
±1.25
±1.50
dB Max
dB Max
dB Max
dB Max
50 Watts
(Derated linearly to 10 Watt @ +125 ºC)
500 Watts
(5usec, 0.05% Duty Cycle)
50 Ohms
-65 ºC to +125 ºC
NOTE: Unit is unidirectional, the input connector will be marked accordingly
Passivated Stainless Steel
Gold Plated Beryllium Copper
Black Anodized Aluminum
Ordering Guide
Part Number Format: 3082-7550-FF-XX
(FF = 06 for 6 GHz; 12 for 12.4 GHz; 18 for 18 GHz)
(XX = 03,06,10,20,30,40 dB standard values)
Contact factory for other dB values or connector configurations
WHEN PERFORMANCE MATTERS
150 Dow Street Manchester, NH 03101
Tel: 603-222-2256
Fax: 603-222-2259
www.XMACORP.com
