3016AC-067 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3016AC-067

3016AC-067: DescriptionRF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

3016AC-067 Overview

RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3016AC-067 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-M, I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.1

Preview

Download Datasheet

View All

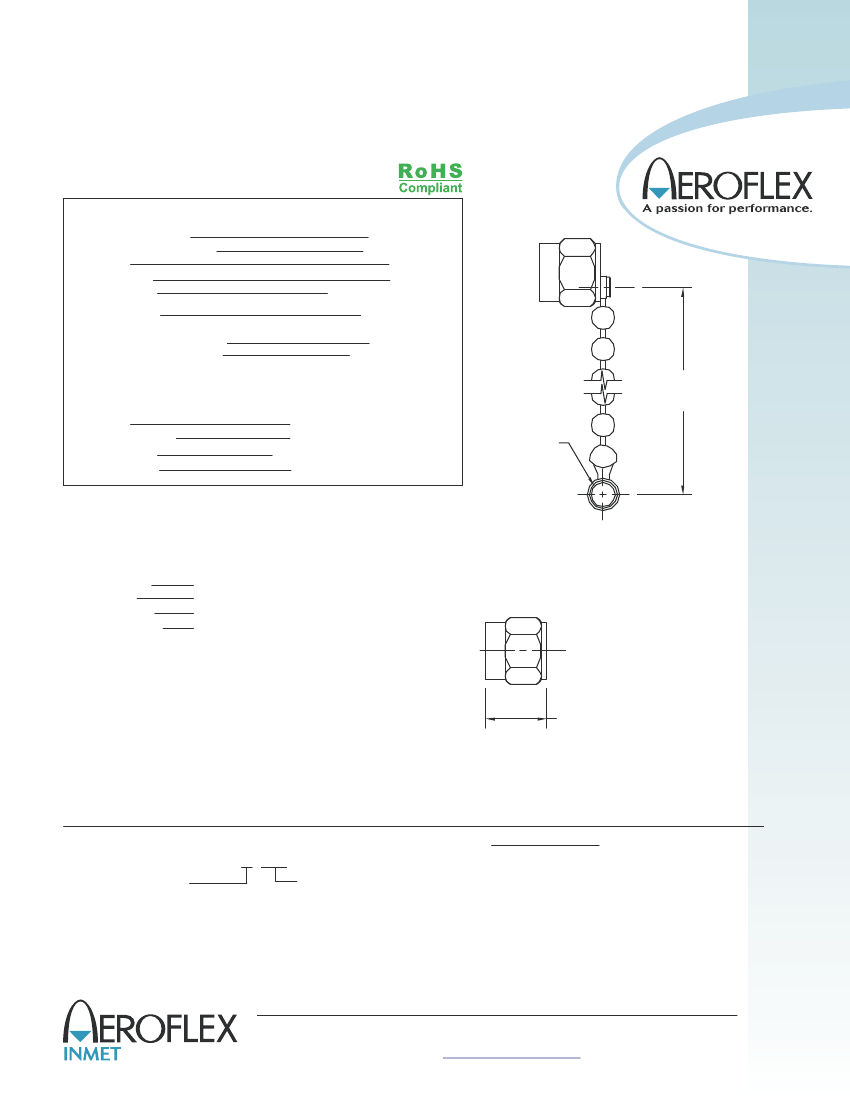

TERMINATIONS

SMA, up to 18 GHz, 1 Watt

SPECIFICATIONS:

Models: 3016A, 3016AC

Electrical:

Frequency Range

Standard Freq. Values

VSWR

Impedance

Input Power

Peak Power

Temperature Coefficient

Operating Temp Range

DC - 18 GHz

3, 6 & 18 GHz

See Table

50 Ohms

1 Watt Avg. @ +25°C

Derated Linearly to 0 Watts @ +1

250 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

±250 ppm/°C

-65°C to +125°C

Mechanical:

SMA Connectors

Mates with MIL

-STD-348

3.5 [89] Long

Bead Chain

Gold Plated Stainless Steel

Passivated Stainless Steel

Gold Plated Beryllium Copper

Passivated Stainless Steel

Body

Coupling Nut

Conductors

Bead Chain

Ø.13[3.3]

Thru

Model Number:

3016A

SMA Male Connector

Frequency Range: DC - 18 GHz

VSWR:

DC - 4 GHz

1.05:1 Max.

4 - 8 GHz

1. 0:1 Max.

8 - 1 GHz

2.4

1. 5:1 Max.

2.4 - 18 GHz

1.20:1 Max.

Model Number:

3016A-067

SMA Male Connector

Frequency Range: DC - 6 GHz

VSWR:

1.10:1 Max.

CHAIN DETAIL

3016AC

.33 ±.05

[8.4 ±1.3]

Model Number:

3016A-137

SMA Male Connector

Frequency Range: DC - 3 GHz

VSWR: 1.20:1 Max.

HOW TO ORDER:

Model Number:

Ordering Examples:

3016AX-YYY

Frequency Range

= DC - 18 GHz

067 = DC - 6 GHz

137 = DC - 3 GHz

Model Number:

3016AC

DC - 18 GHz; SMA Male; Chain Included

Model Number:

3016A-067

DC - 6 GHz; SMA Male; No Chain

Model Number:

3016A

DC - 18 GHz; SMA Male: No Chain

Style

= No Chain

C = Chain Included

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

3016A: REV B

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com

• inmetsales@aeroflex.com

3016AC-067 Related Products

	3016AC-067	3016A-067	3016A-137	3016AC-137
Description	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 3000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 3000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm
JESD-609 code	e4	e4	e4	e4
Maximum operating frequency	6000 MHz	6000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	GOLD	GOLD	Gold (Au)	GOLD
Maximum voltage standing wave ratio	1.1	1.1	1.05	1.05
