RL-6280-4-39 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RL-6280-4-39

RL-6280-4-39: DescriptionGeneral Purpose Inductor, 39uH, 10%, 2 Element, SMD, 3128, RADIAL LEADED; CategoryPassive components inductor; File Size912KB，5 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RL-6280-4-39 Overview

General Purpose Inductor, 39uH, 10%, 2 Element, SMD, 3128, RADIAL LEADED

RL-6280-4-39 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
package instruction	3128
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3128
structure	Bobbin
DC Resistance	0.16 Ω
Nominal inductance(L)	39 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	RL-6280-4
Number of functions	2
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	5 mm
Package length	7.8 mm
Package form	SMT
Package width	7 mm
method of packing	TR, 13 Inch
Maximum rated current	1.1 A
series	RL-6280
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

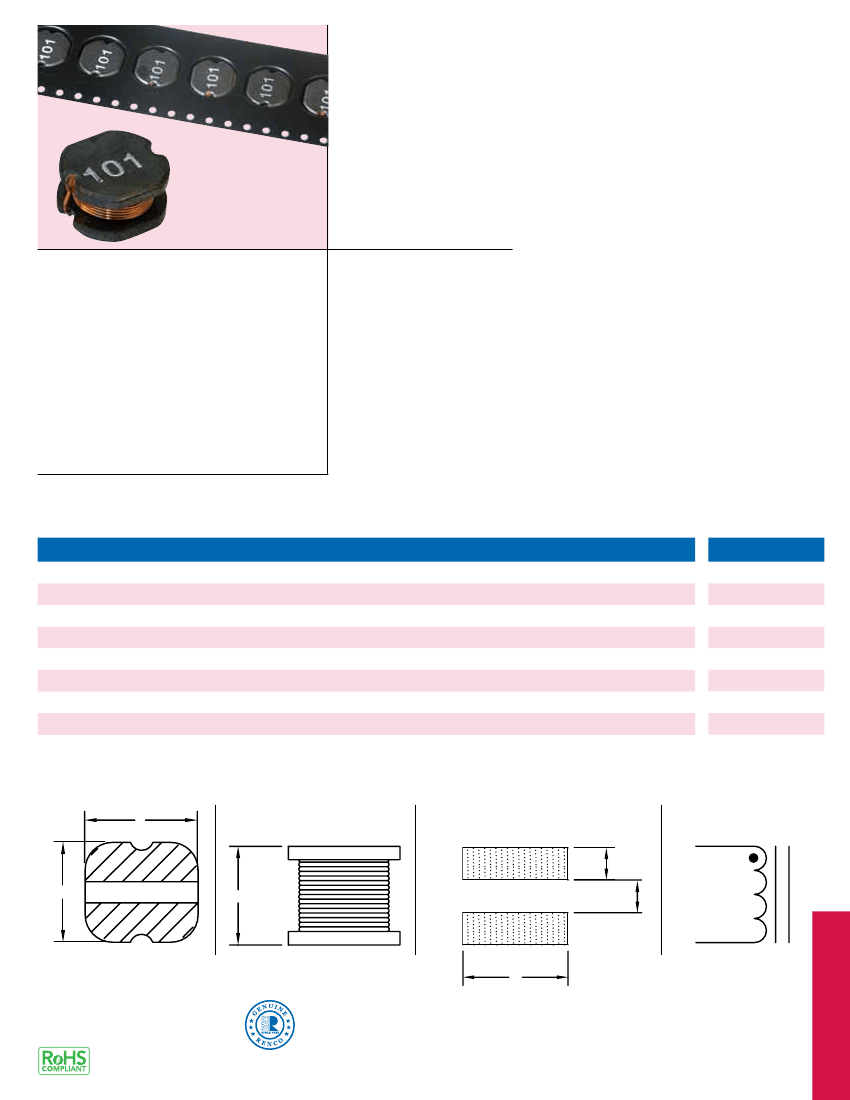

RL-6280

SURFACE MOUNT

POWER INDUCTORS

DESCRIPTION

• SMD Power Inductor

FEATURES & APPLICATIONS

• Inductance from 1.0 µH to 820 µH

• Operating currents from 0.24 A to 3.80 A

• Operating frequencies from DC to 8MHz

• Typical applications include: switching power supplies,

and RFI/EMC filtering

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 490

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-6280-0

RL-6280-1

RL-6280-1.5

RL-6280-2

RL-6280-3

RL-6280-4

RL-6280-4.5

RL-6280-5

A (MAX.)

0.138 (3.50)

0.177 (4.50)

0.228 (5.80)

0.307 (7.80)

B (MAX.)

0.118 (3.00)

0.157 (4.00)

0.205 (5.20)

0.276 (7.00)

C (MAX.)

0.083 (2.10)

0.126 (3.20)

0.098 (2.50)

0.177 (4.50)

0.138 (3.50)

0.197 (5.00)

0.158 (4.00)

0.213 (5.40)

D (REF.)

E (REF.)

F (REF.)

PART WEIGHT

0.08g (0.003oz)

0.17g (0.006oz)

0.24g (0.008oz)

0.41g (0.014oz)

0.57g (0.020oz)

0.70g (0.025oz)

1.11g (0.039oz)

1.27g (0.045oz)

0.063 (1.60) 0.032 (0.80) 0.138 (3.50)

0.069 (1.75) 0.059 (1.50) 0.177 (4.50)

0.085 (2.15) 0.067 (1.70) 0.217 (5.50)

0.118 (3.00) 0.079 (2.00) 0.295 (7.50)

0.148 (3.75) 0.098 (2.50) 0.374 (9.50)

0.394 (10.00) 0.354 (9.00)

TOP VIEW

SIDE VIEW

RECOMMENDED LAND PATTERN

SCHEMATIC

NON TINNED

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

SURFACE MOUNTS
