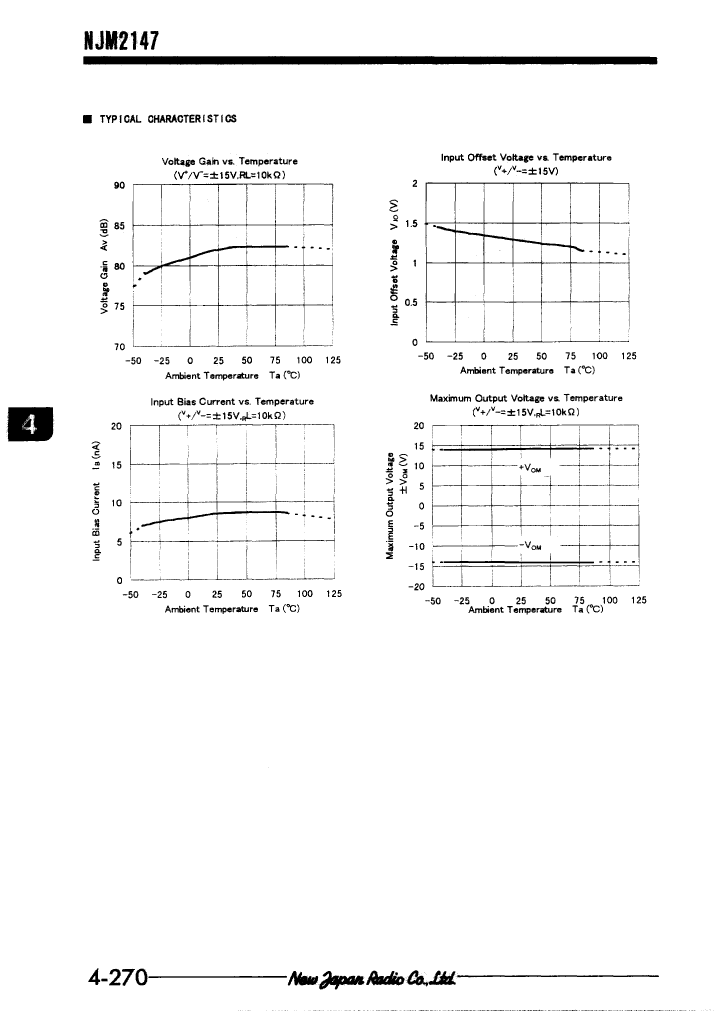

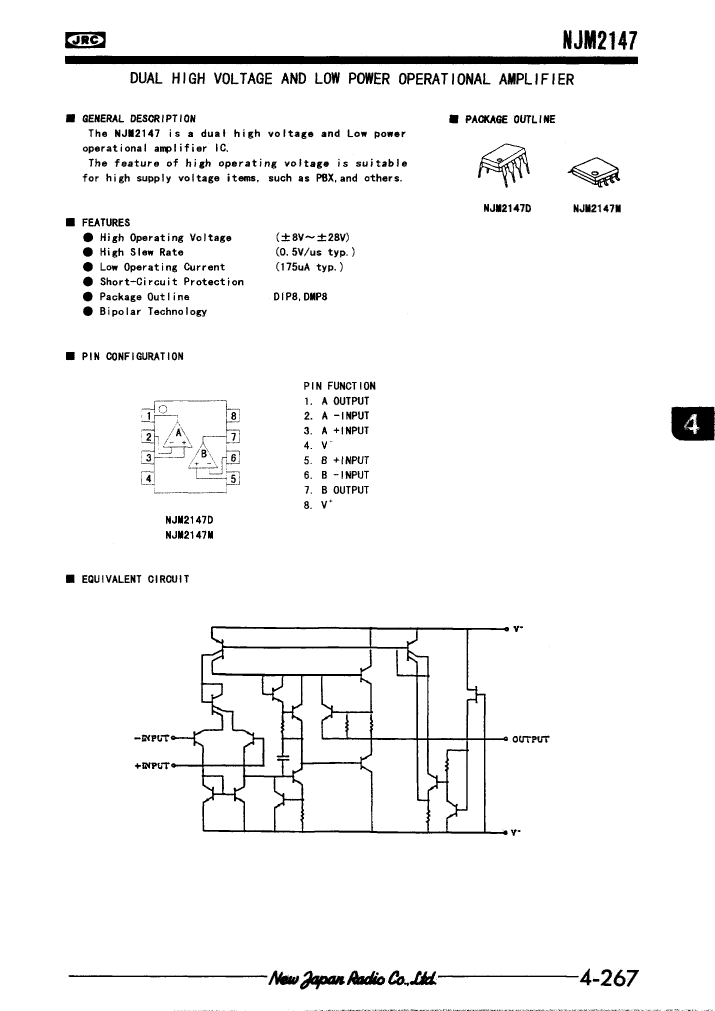

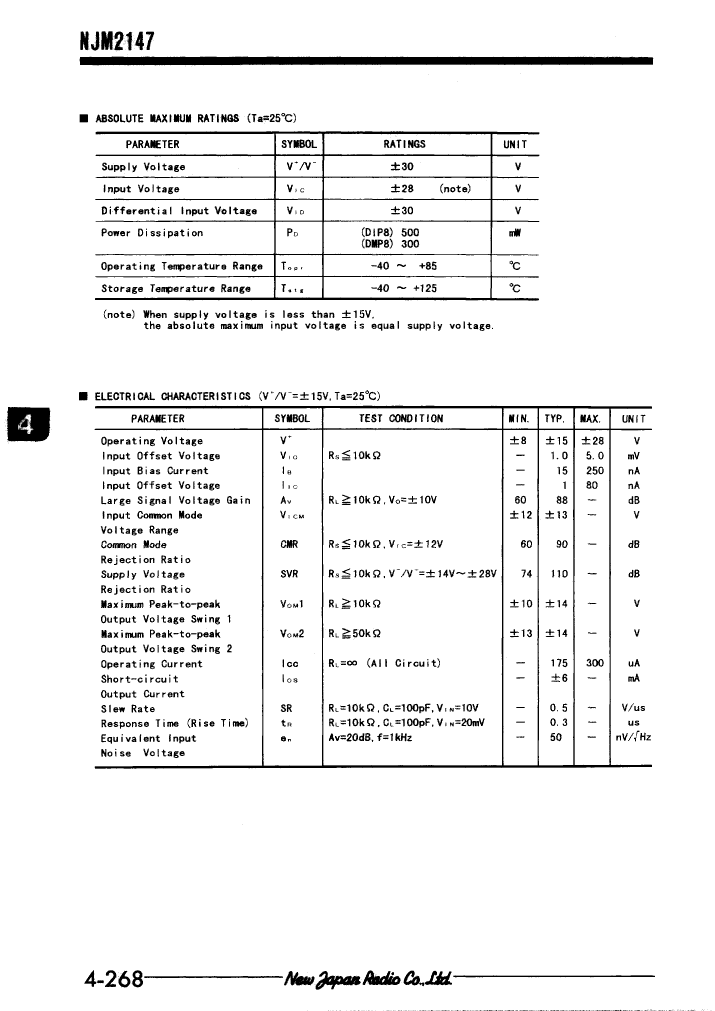

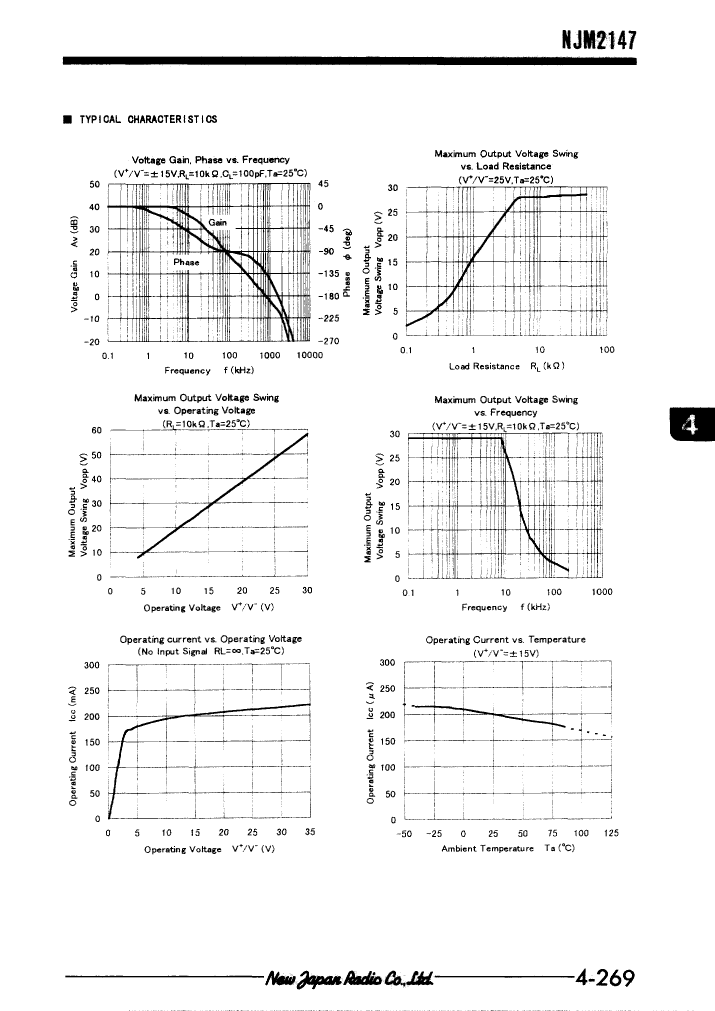

Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8
| Parameter Name | Attribute value |
| Maker | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.25 µA |
| Nominal Common Mode Rejection Ratio | 90 dB |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | S-PDSO-G8 |
| length | 5 mm |
| Negative supply voltage upper limit | -30 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | SQUARE |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum seat height | 2 mm |
| Nominal slew rate | 0.5 V/us |
| Supply voltage upper limit | 30 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 5 mm |
| NJU2147M(TE2) | NJU2147D | NJU2147M(T1) | NJU2147M(T2) | NJU2147M(TE1) | NJU2147M(TE3) | NJU2147M(TE4) | NJU2147M | |
|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.250 INCH, PLASTIC, DMP-8 |
| Maker | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC | DIP | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOP, | DIP, | SOP, | SOP, | 0.250 INCH, PLASTIC, DMP-8 | SOP, | SOP, | SOP, |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | compliant | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.25 µA | 0.25 µA | 0.25 µA | 0.25 µA | 0.25 µA | 0.25 µA | 0.25 µA | 0.25 µA |
| Nominal Common Mode Rejection Ratio | 90 dB | 90 dB | 90 dB | 90 dB | 90 dB | 90 dB | 90 dB | 90 dB |
| Maximum input offset voltage | 5000 µV | 5000 µV | 5000 µV | 5000 µV | 5000 µV | 5000 µV | 5000 µV | 5000 µV |
| JESD-30 code | S-PDSO-G8 | R-PDIP-T8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 |
| length | 5 mm | 8.8 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Negative supply voltage upper limit | -30 V | -30 V | -30 V | -30 V | -30 V | -30 V | -30 V | -30 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | SOP | SOP | SOP | SOP | SOP | SOP |
| Package shape | SQUARE | RECTANGULAR | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2 mm | 4.7 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Nominal slew rate | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us |
| Supply voltage upper limit | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | NO | YES | YES | YES | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 5 mm | 7.62 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
