700-DP7-M3-Q-E-AP1-GRY-WHT datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 700-DP7-M3-Q-E-AP1-GRY-WHT

700-DP7-M3-Q-E-AP1-GRY-WHT: DescriptionPushbutton Switch, DPDT, On-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size160KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

700-DP7-M3-Q-E-AP1-GRY-WHT Overview

Pushbutton Switch, DPDT, On-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Panel Mount

700-DP7-M3-Q-E-AP1-GRY-WHT Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.079 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PLUNGER
body width	15.6972 mm
body height	10.541 mm
Body length or diameter	19.3802 mm
Nozzle length	0.284 inch
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating force	2.45 N
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	SILVER
Terminal length	0.175 inch
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

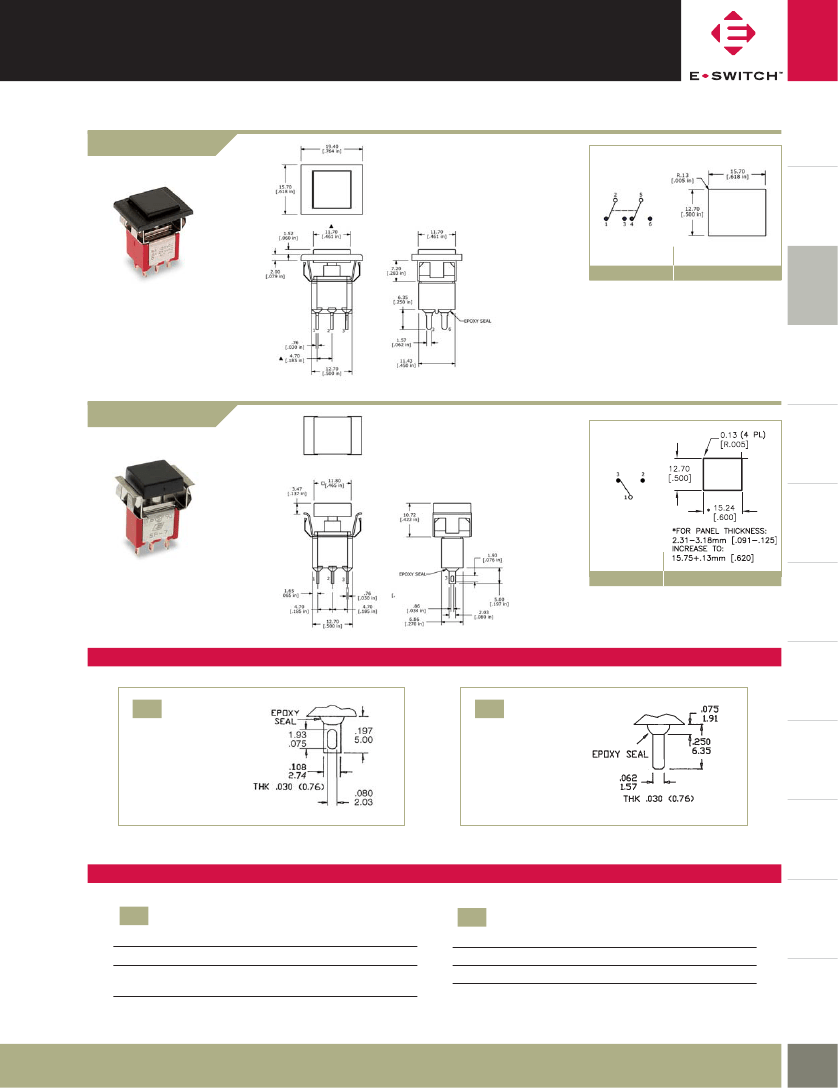

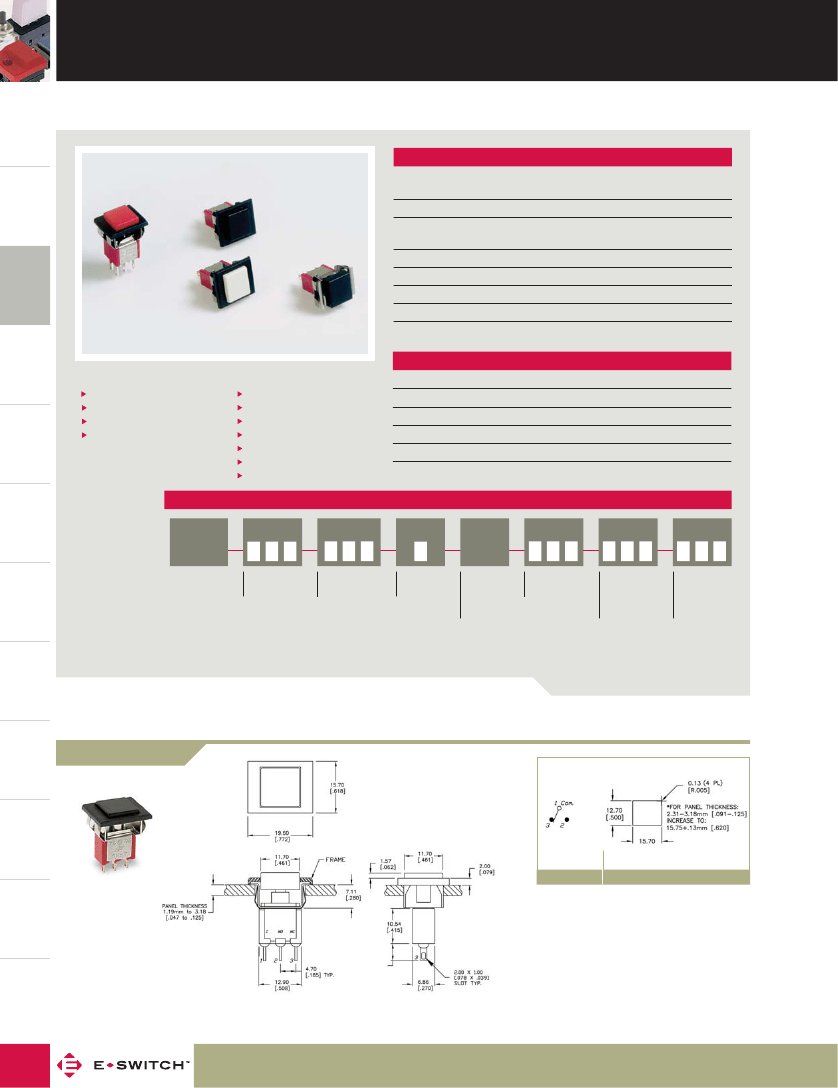

SERIES 700 SWITCHES

TACT

SWITCHES

PUSHBUTTON SWITCHES - SNAP-ACTING PANEL MOUNTED

SPECIFICATIONS

NAVIGATION

SWITCHES

Contact Rating:

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

1A @ 250 VDC

3A @ 120 VDC or 28VDC

50,000 cycles typical

10mΩ max., typical @ 2-4 VDC,

100mA for both silver and gold plated contacts

1,000 MΩ min.

1,000 V rms at sea level

200 ± 50 gf

PUSHBUTTON

SWITCHES

Operating Temperature: -30°C to +85°C

TOGGLE

SWITCHES

MATERIALS

FEATURES & BENEFITS

Snap acting contact design

Gold & silver contact options

Multiple termination options

Snap-in panel mount option

APPLICATIONS/MARKETS

Telecommunications

Networking

Computers/servers

Performance audio

Instrumentation

Low power on/off designs

External hard drives and modems

Case:

Plunger:

Bushing:

Housing:

Contacts:

Diallyl Phthalate (DAP)

Glass filled nylon or glass filled polyester

Nickel plated brass

Stainless steel

Silver or Gold plated copper alloy

ROCKER

SWITCHES

▲

SLIDE

SWITCHES

HOW TO ORDER

SERIES

MODEL NO.

TERMINATION

CONTACT

MATERIAL

SEAL

CAP/FRAME

CAP COLOR

FRAME

COLOR

700

SP7

DP7

Q = Silver

R = Gold

E = Epoxy

Sealed at

Base of

Terminal

AP1

AP2

BLK = Black

RED = Red

GRY = Grey

WHT= White

BLK = Black

RED = Red

GRY = Grey

WHT= White

SNAP-ACTION

SWITCHES

▲

Example Ordering Number

700_ DP7_ M1_ Q

E_ AP1_ RED_ RED

Specifications subject to change without notice.

KEYLOCK

SWITCHES

DIP

SWITCHES

AP2

CAP/FRAME SPDT

ROTARY

SWITCHES

SCHEMATIC

DETECTOR

SWITCHES

PANEL MOUNT

CAP

OPTIONS

Phone: 800-867-2717

Fax: 763-531-8235
