NJM082BD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM082BD

NJM082BD: DescriptionOperational Amplifier, 2 Func, 15000uV Offset-Max, BIPolar, PDIP8, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size178KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric View All

NJM082BD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJM082BD	-	-	View	Buy Now

NJM082BD Overview

Operational Amplifier, 2 Func, 15000uV Offset-Max, BIPolar, PDIP8, DIP-8

NJM082BD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0004 µA
Maximum bias current (IIB) at 25C	0.0004 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	76 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.0002 µA
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e6
length	8.8 mm
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.7 mm
Nominal slew rate	13 V/us
Maximum slew rate	5.6 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	3000 kHz
Minimum voltage gain	25118.9
width	7.62 mm

Preview

Download Datasheet

View All

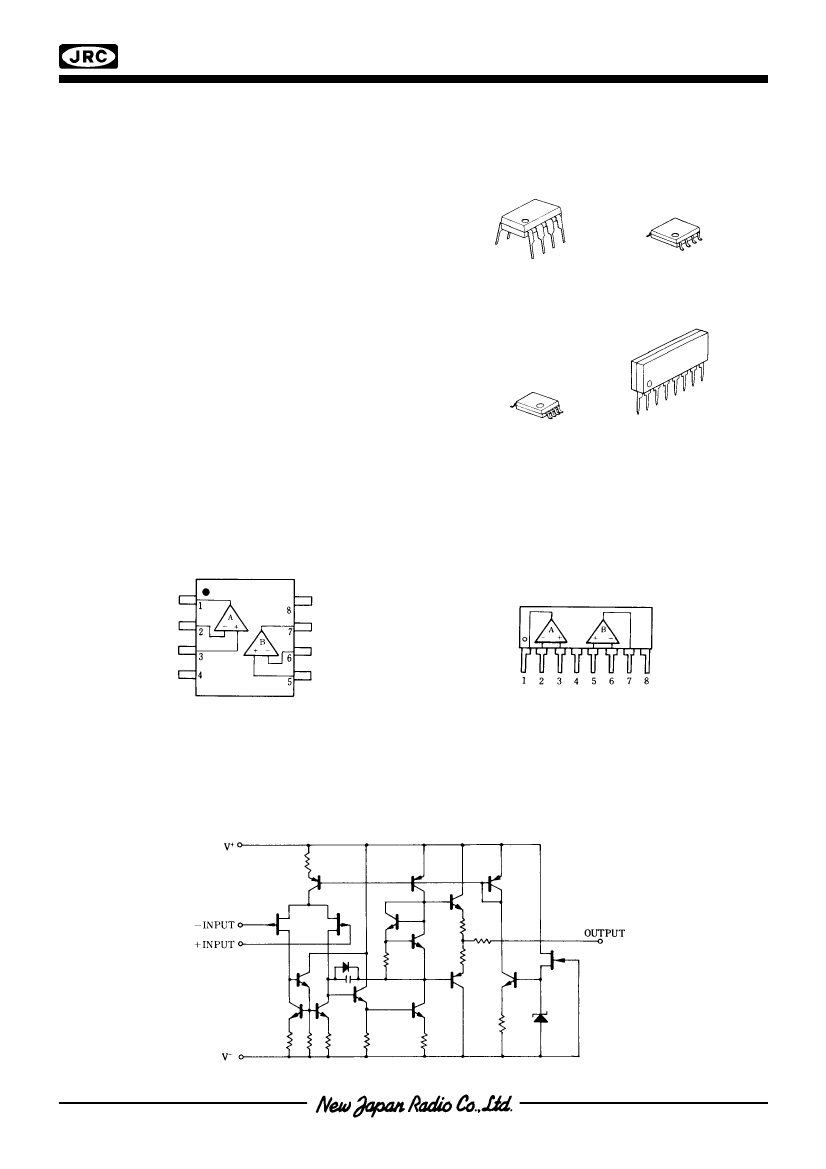

NJM072B/082B/072/082

DUAL J-FET INPUT OPERATIONAL AMPLIFIER

■

GENERAL DESCRIPTION

The NJM072B/082B & NJM072/082 are dual JFET input

operational amplifiers. They feature low input bias and offset

currents, high input impedance and fast slew rate. The low

harmonic distortion and low noise make them ideally suit for

amplifiers with high fidelity and audio amplifier applications.

The NJM072/082 may cause oscillation in some application

like voltage follower.

■

FEATURES

●

Operating Voltage

●

J-FET Input

●

High Input Resistance

●

Low Input Resistance

●

High Slew Rate

●

Wide Unity Gain Bandwidth

●

Package Outline

●

Bipolar Technology

■

PIN CONFIGURATION

PIN FUNCTION

1.A

OUTPUT

2.A -INPUT

3.A +INPUT

4.V

5.B +INPUT

6.B -INPUT

7.B OUTPUT

8.V

NJM072BD/082BD

NJM072D/082D

NJM072M/082M

NJM072BM/082BM

NJM072BV/082BV

NJM072L/082L

NJM072BL/082BL

■

PACKAGE OUTLINE

NJM072BD/082BD

NJM072D/082D

NJM072BM/082BM

NJM072M/082M

( ±4V~±18V )

( 10

Ω

typ. )

( 30pA typ. )

( 13V/µs,20V/µs typ. )

( 3MHz,5MHz typ. )

DIP8,DMP8,SSOP8,SIP8

NJM072BV/082BV

NJM072BL/082BL

NJM072L/082L

■

EQUIVALENT CIRCUIT

Ver.2003-03-17

-1-
