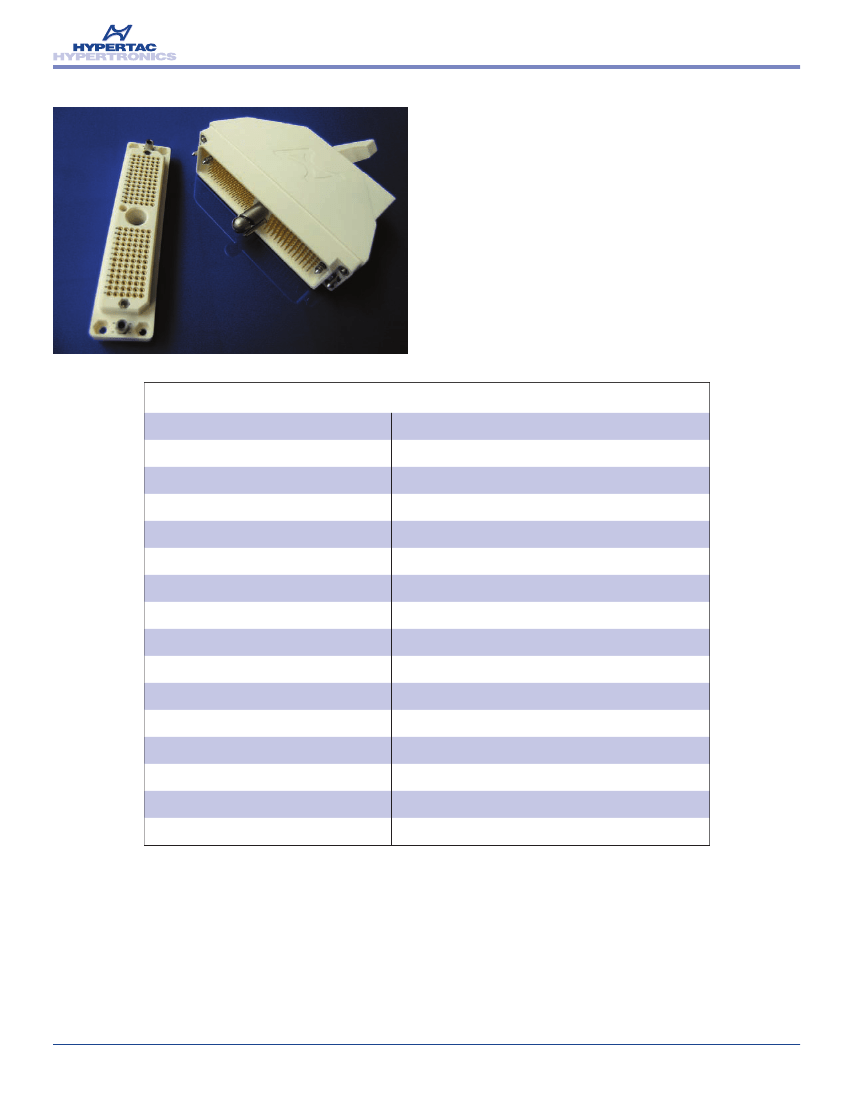

HDL Series
Test Equipment Connectors
• Quick release standard density signal test connector
(0.100 x 0.100 [2.54 x 2.54] pitch)
• Drop-in replacement for standard ZIF connectors
• Half-turn quick mating device
• Self-cleaning, high reliability contacts
• Rugged design
General Specifications
Number of Contacts
Insulator Material
Contact Material
Socket Wire Material
All Other Metal Part Material
Cover Material
Contact Plating
Contact Diameter
Contact Resistance
Current Rating
Voltage Rating
Insulation Resistance
Contact Life Cycles
Extraction Force
Temperature Range
Proof Voltage
60, 96, 156
Glass reinforced thermoplastic
Brass
Beryllium copper
Stainless steel
High impact, flame retardant thermoplastic resin
ASTM-488-B gold plate
0.024 [0.60] nominal
7 milliohms max.
4 Amps nominal
170 VDC or AC peak nominal
5 Gigohms min. at 500 VDC
1,500 min.
1.0 oz. per contact
-55° to 125° C
1.0 kV min.
Dimensions are in inches [mm]
www.hypertronics.com
3 / 15

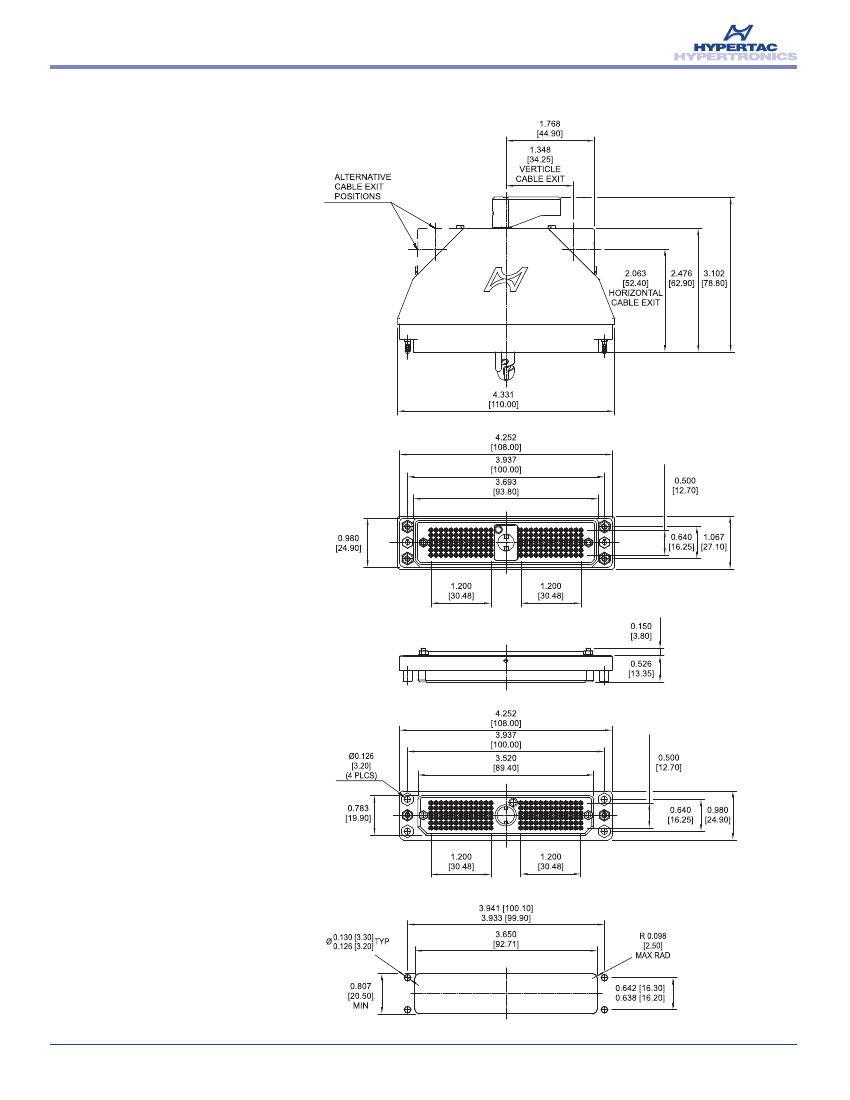

HDL Series
HDL 156 Contact Connector
Male Connector
(Shown with Cover Fitted)
Typical Pitch is 0.100 [2.54]
Male Connector
(Mating Face)
Female Connector
Female Connector
(Mating Face)
Panel Cutout
Dimensions are in inches [mm]
3 / 16
www.hypertronics.com

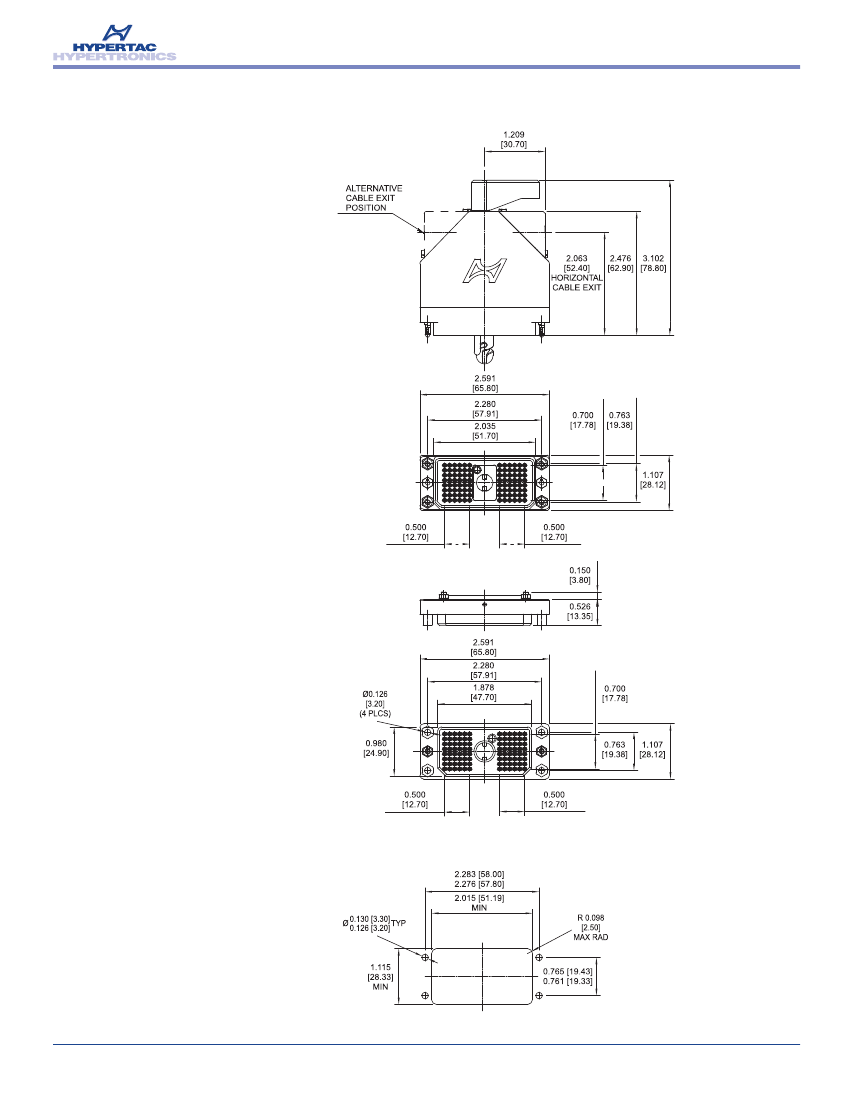

HDL Series
HDL 96 Contact Connector
Male Connector
(Shown with Cover Fitted)
Typical Pitch is 0.100 [2.54]
Male Connector
(Mating Face)
Female Connector
Female Connector
(Mating Face)
Panel Cutout
Dimensions are in inches [mm]
www.hypertronics.com
3 / 17

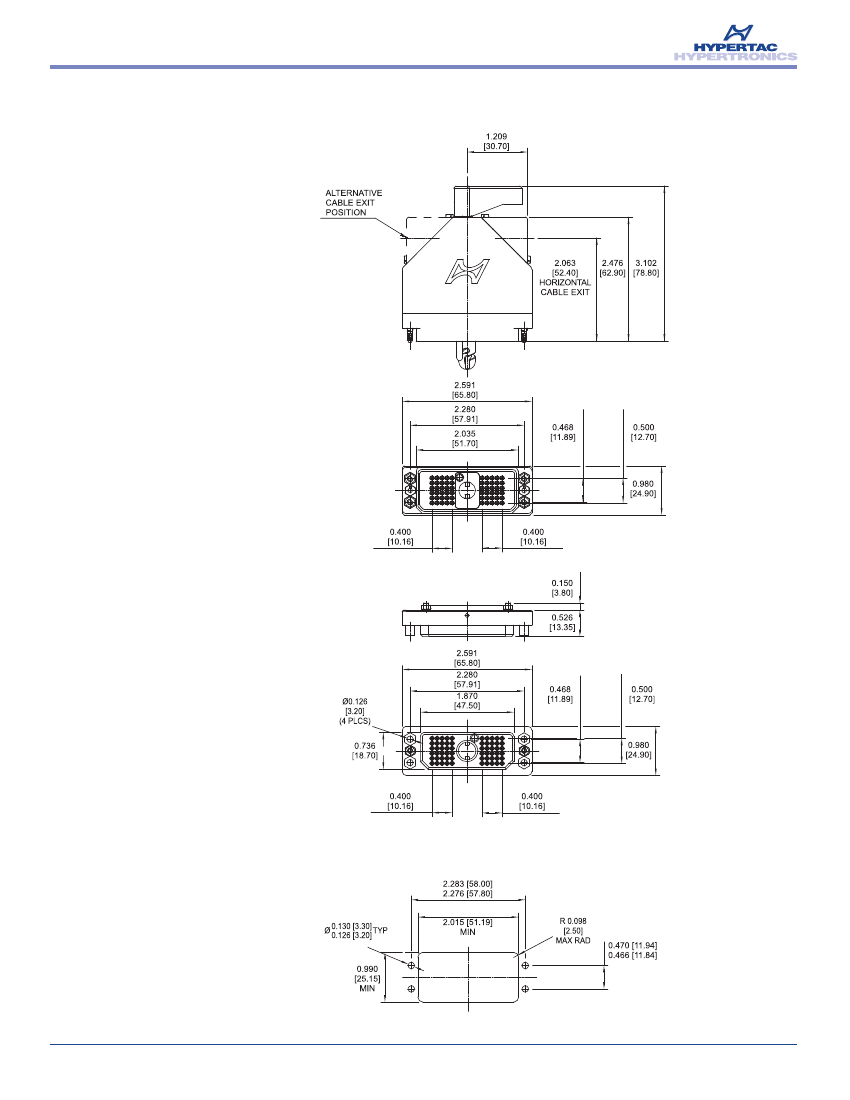

HDL Series
HDL 60 Contact Connector
Male Connector
(Shown with Cover Fitted)
Typical Pitch is 0.100 [2.54]
Male Connector
(Mating Face)
Female Connector
Female Connector
(Mating Face)
Panel Cutout
Dimensions are in inches [mm]
3 / 18
www.hypertronics.com
HDL Series
Part Number Configurator
HDL
Series
HDL
156
U
M
C
X
1
000
Variations
Number of
Cavities
156 position
096 position
060 position
Polarizing***
0 = None fitted or supplied
1 = One pair of central posts
fitted (standard)
Contact
Plating
U = Gold plate
50µin gold plating over
50µin nickel plating over
10µin copper flash
X = Male shrouded half with
Connector
Jackscrew and cover
Half/Jacking
and Cover**
Y = Female half with jack socket
V = Male shrouded half with
Jackscrew, no cover
Z = Female half with jack socket
Contact
Gender
M =Male
F = Female
Terminations
C = Crimp (20 to 24 AWG)
K = Crimp (24 to 28 AWG)
** Covers, cable clamps and jack knobs will be supplied loose.
*** Polarizing settings to be carried out by customer.
Crimping Information
AWG
20
22
24
26
28
Number of Wires
19
19
7
7
7
Nominal Diameter
of Wires
0.20mm
0.15mm
0.20mm
0.15mm
0.125mm
Crimp Tool
Selector Setting
Position
6
5
4
3
2
Tools
Contact Extraction Tool......................................................................HPD 286
Spare Tips for Extraction Tool............................................................HPD 280
Contact Insertion Tool........................Use non-ferrous long pointed tweezers
Crimp Tool Positioner ......................................................................HPD 309A
Crimp Tool ..........................................................................MIL-C-22520/2-01
Dimensions are in inches [mm]
www.hypertronics.com
3 / 19
