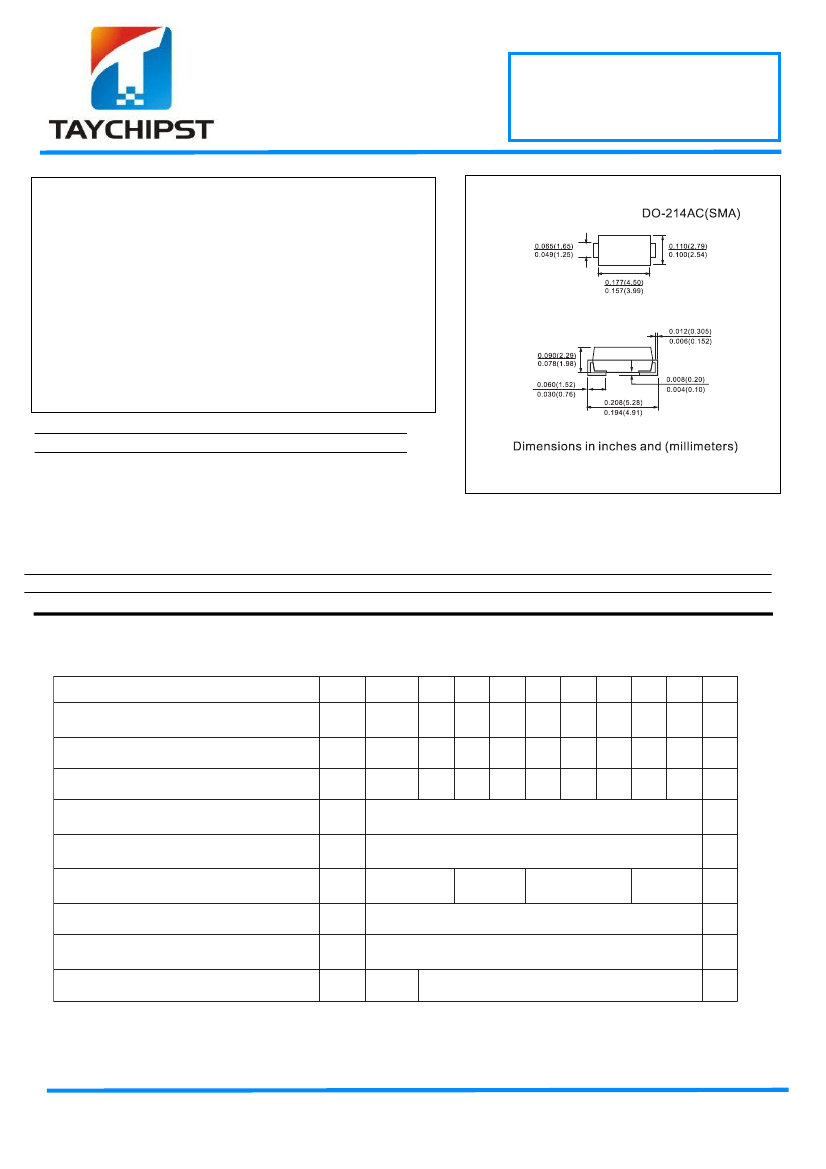

BR24 THRU BR220
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
40V-200V
2.0A
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
• For surface mounted applications
• Low profile package
• Built-in strain relief
• Metal to silicon rectifier. majority carrier conduction
• Low power loss,high efficiency
• High surge capacity
• For use in low voltage high frequency inverters, free wheeling,
and polarity protection applications
• In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
•
•
•
•
Case: JEDEC DO-214AC molded plastic
Terminals:Solder plated, solderable per MIL-STD-750,Method 2026
Polarity: Color band denotes positive end (cathode)
Standard packaging: 12mm tape (EIA-481)
• Weight: 0.0023 ounce, 0.0679 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
.
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load
PA RA M E TE R
M a xi m um R e c ur r e nt P e a k R e ve r s e V o l t a g e
M a xi m um R M S V o l t a g e
M a xi m um D C B l o c k i ng V o l t a g e
M a xi m um A ve r a g e F o r w a r d C ur r e nt ( S e e F i g ur e 1 )
P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 m s s i ng l e ha l f s i ne -
w a ve s up e r i m p o s e d o n r a t e d l o a d ( J E D E C m e t ho d )
M a xi m um F o r w a r d V o l t a g e a t 2 . 0 A ( N o t e 1 )
M a xi m um D C R e ve r s e C ur r e nt T
J
= 2 5
O
C
a t R a t e d D C B l o c k i ng V o l t a g e T
J
= 1 0 0
O
C
Ty p i c a l T h e r m a l R e s i s t a n c e ( N o t e 2 )
O p e r a t i n g J u n c t i o n a n d S t o r a g e Te m p e r a t u r e R a n g e
S YM B O L
V
RRM
V
RMS
V
DC
I
F ( A V )
I
F S M
V
F
I
R
R
θ
J L
R
θ
J A
B R2 4
B R2 4 A
B R2 5
B R2 6
B R2 8
B R2 9
B R2 1 0
B R2 1 5
B R2 2 0
U N IT S
V
V
V
A
A
40
28
40
45
3 1 .5
45
50
35
50
60
42
60
80
56
80
2 .0
50
90
63
90
100
70
100
150
105
150
200
140
200
0 .7
0 .7 4
0 .0 5
20
20
75
0 .8 0
0 .9
V
mA
O
C /
W
C
T
J
, T
S TG
- 5 5 t o + 1 5 0
-5 5 to +1 7 5
O
NOTES:
1. Pulse Test with PW =300µsec, 1% Duty Cycle.
2. Mounted on P.C. Board with 8mm
2
(.013mm thick) copper pad areas.
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
BR24 THRU BR220
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
40V-200V
2.0A

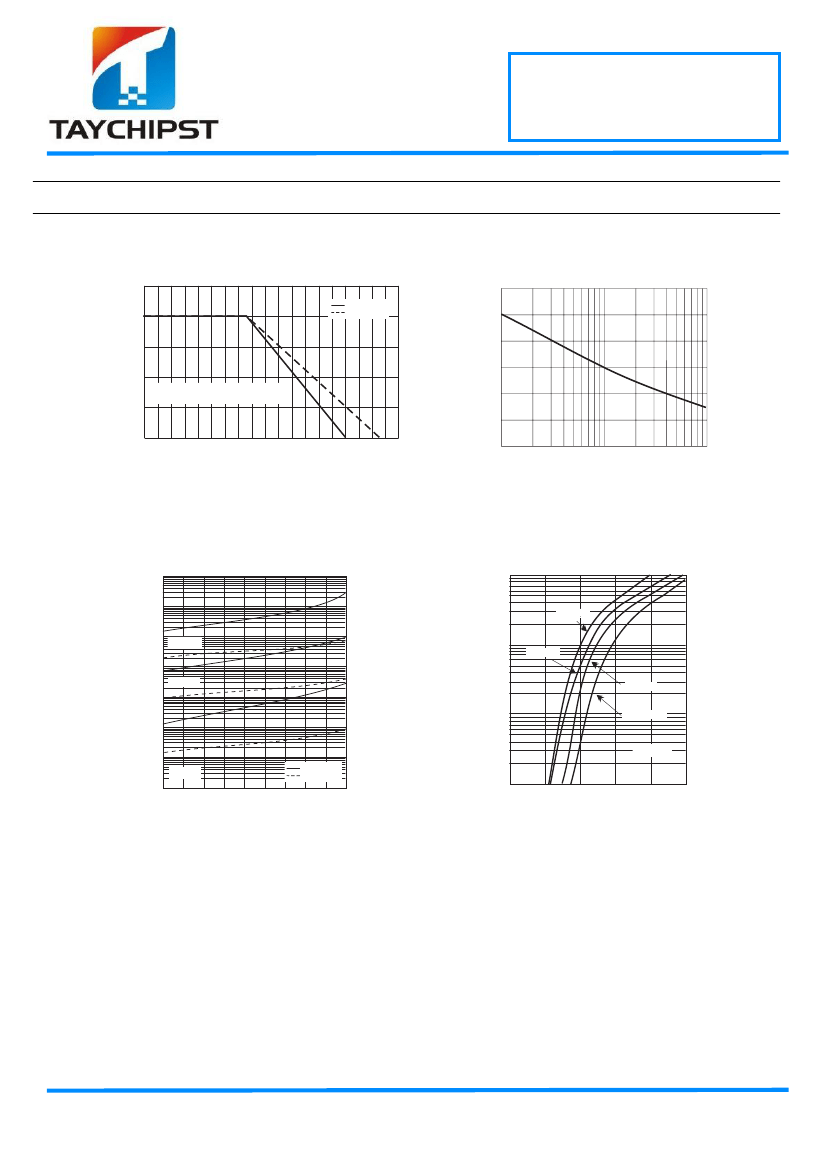

RATINGS AND CHARACTERISTIC CURVES
BR24 THRU BR220
AVERAGE FORWARD RECTIFIED
CURRENT AMPERES
2.0
1.5
1.0
.375" 9.5mmLEADLENGHTS
RESISTIVEORINDUCTIVELOAD
= 40V
= 45-200V
PEAK FORWARDSURGE CURRENT,
AMPERES
2.5
60
50
40
30
20
10
0
1
10
NO. OF CYCLE AT 60Hz
0.5
0
0
20
40
60
80
100
120
140
160
180
100
LEAD TEMPERATURE,
O
C
Fig.1- FORWARD CURRENT DERATING CURVE
Fig.2- MAXIMUM NON-REPETITIVEPEAKFORWARD
SURGE CURRENT
10
5
10
40-45V
REVERSE CURRENT ,m
A
m
10
3
T
J
=125 C
O
FORWARD CURRENT, AMPERES
10
4
1.0
50-60V
10
2
T
J
=75 C
10
1
O
80-100V
0.1
150-200V
10
0
10
-1
T
A
= 25 C
O
T
J
=25 C
10
-2
O
V
RRM
=40-60V
V
RRM
=80-200V
20
40
60
80
100
0.01
0.2
0.4
0.6
0.8
1.0
1.2
PERCENT OF RATED PEAK REVERSE VOLTAGE ,%
FORWARD VOLTAGE, VOLTS
Fig.3-TYPICAL REVERSE CHARACTERISTIC
Fig.4- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTIC
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
