D72F5T2 datasheet, PDF - EEWORLD Datasheet

D72F5T2: DescriptionSmall Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA; CategoryDiscrete semiconductor The transistor; File Size116KB，4 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

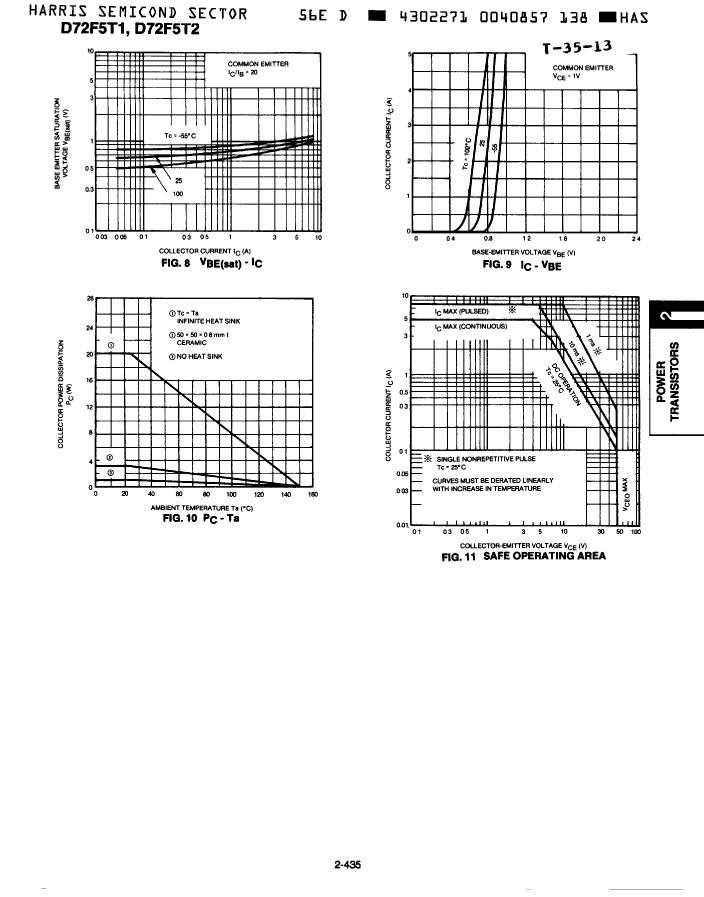

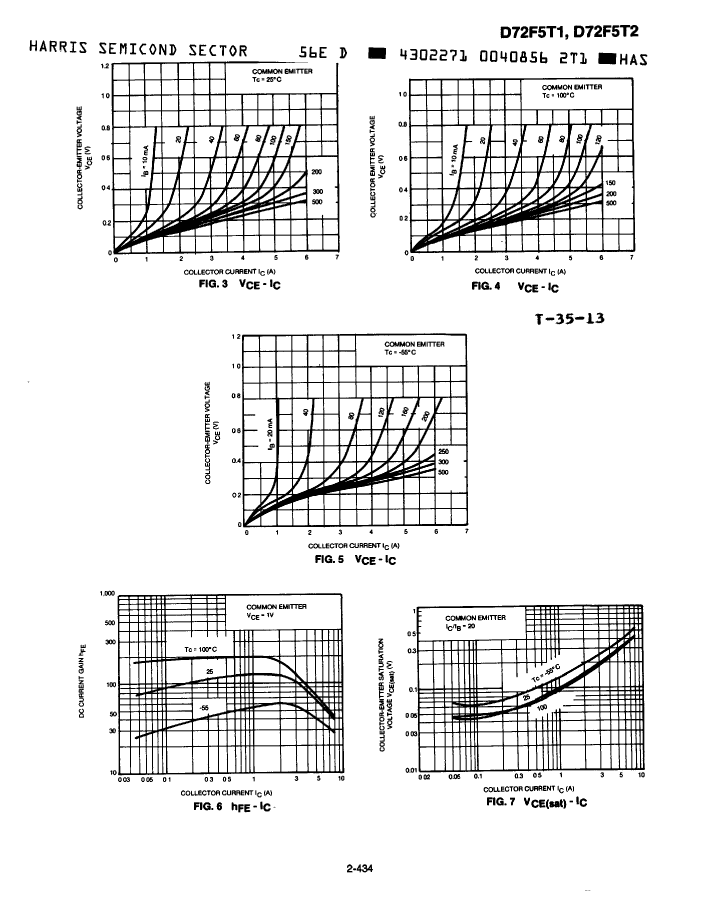

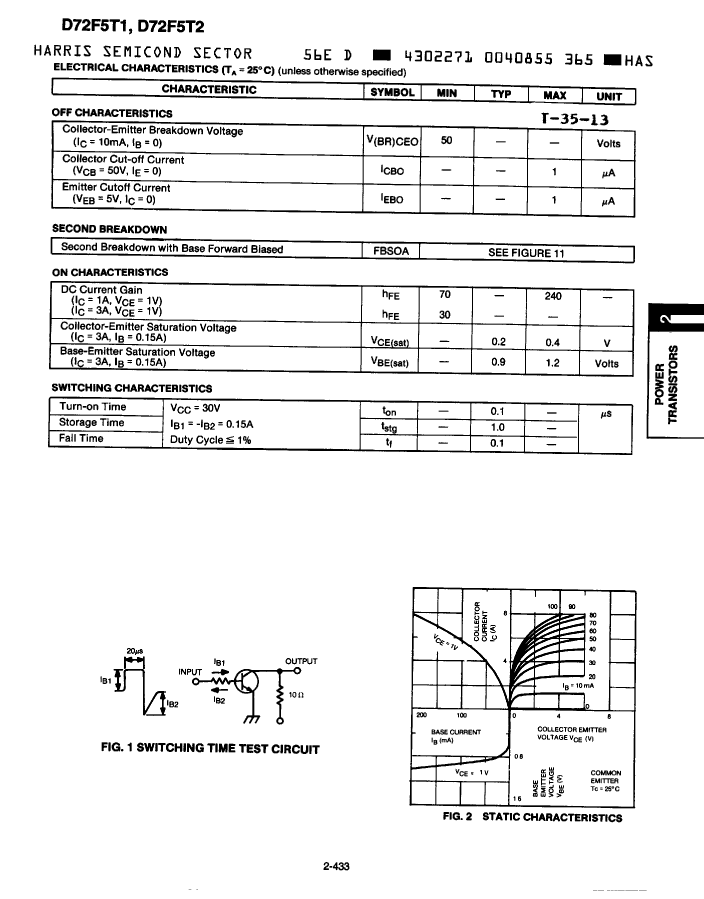

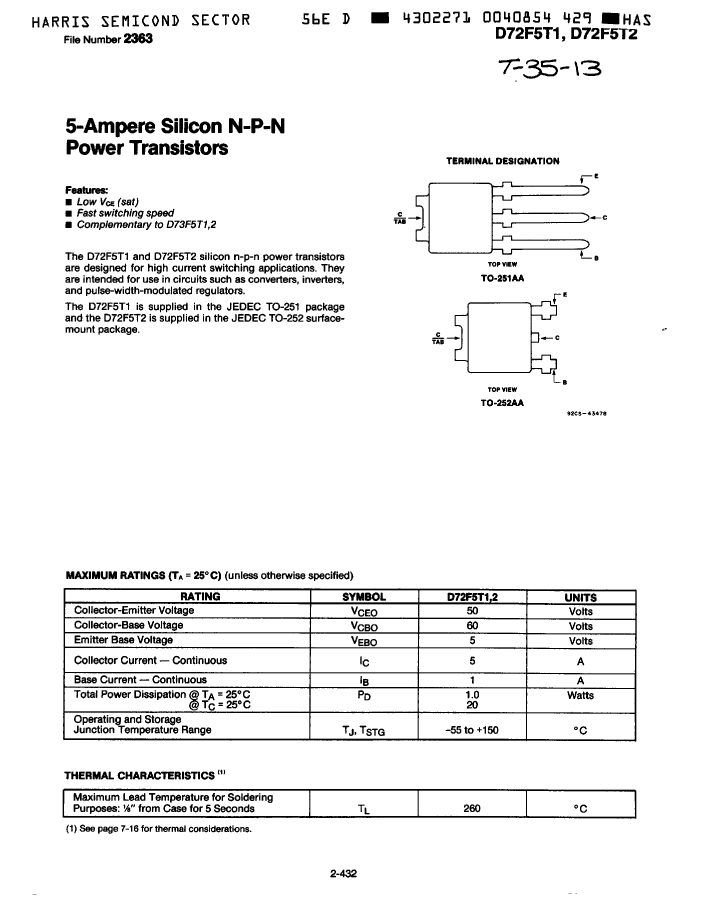

D72F5T2 Overview

Small Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power consumption environment	20 W
Maximum power dissipation(Abs)	20 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	0.4 V

	D72F5T2	D72F5T1
Description	Small Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA	Small Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-251AA
Is it Rohs certified?	incompatible	incompatible
package instruction	SMALL OUTLINE, R-PSSO-G2	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	5 A	5 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30
JEDEC-95 code	TO-252AA	TO-251AA
JESD-30 code	R-PSSO-G2	R-PSIP-T3
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	2	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN
Maximum power consumption environment	20 W	20 W
Maximum power dissipation(Abs)	20 W	20 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
VCEsat-Max	0.4 V	0.4 V
