D72F5T2

Description
5000mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-252AA
CategoryDiscrete semiconductor    The transistor
File Size101KB,4 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

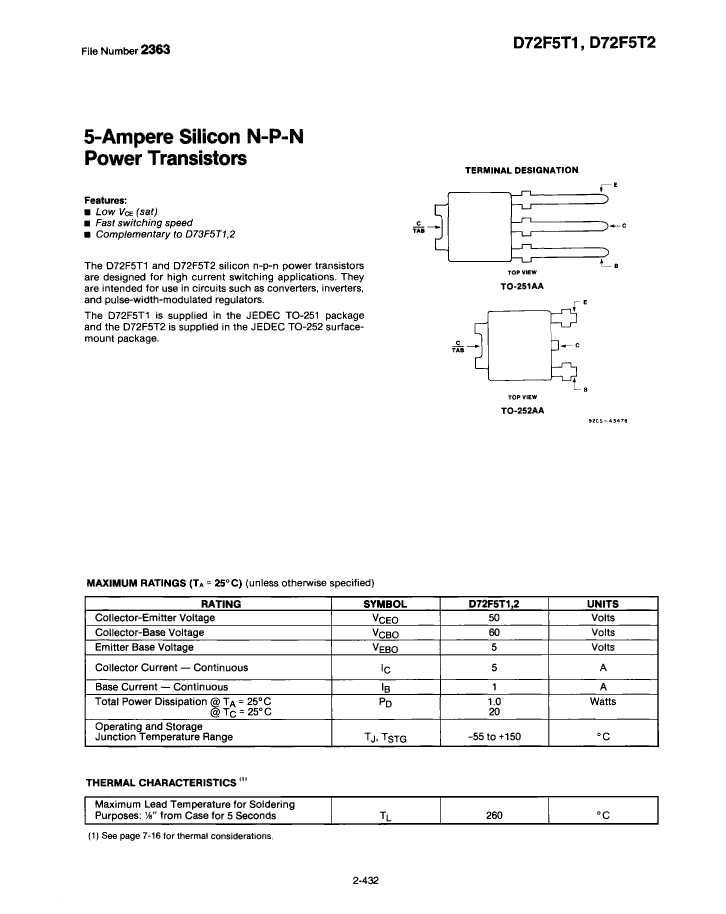

D72F5T2 Overview

5000mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-252AA

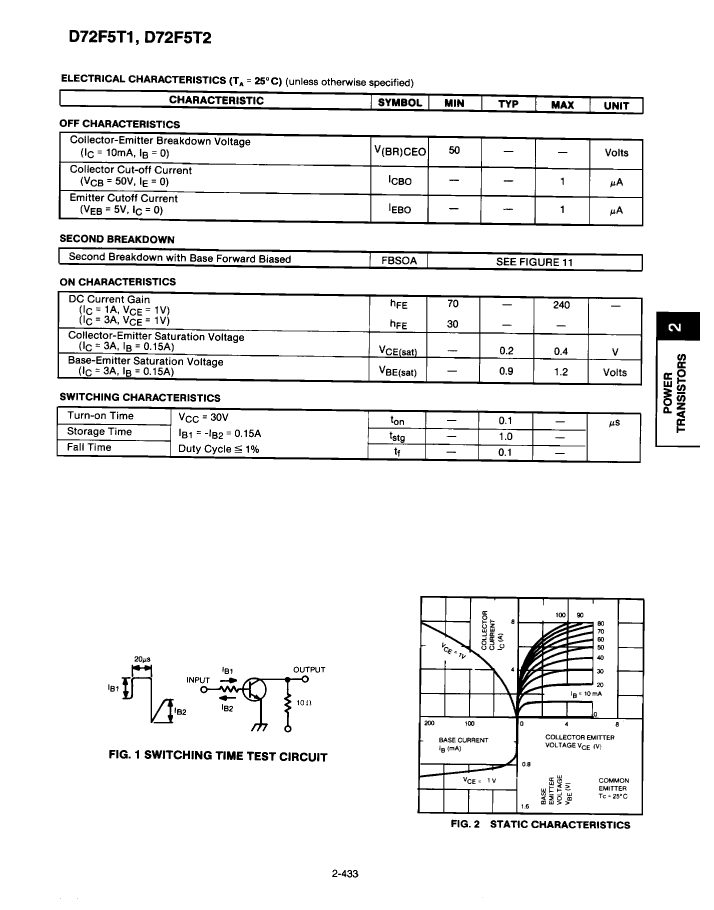

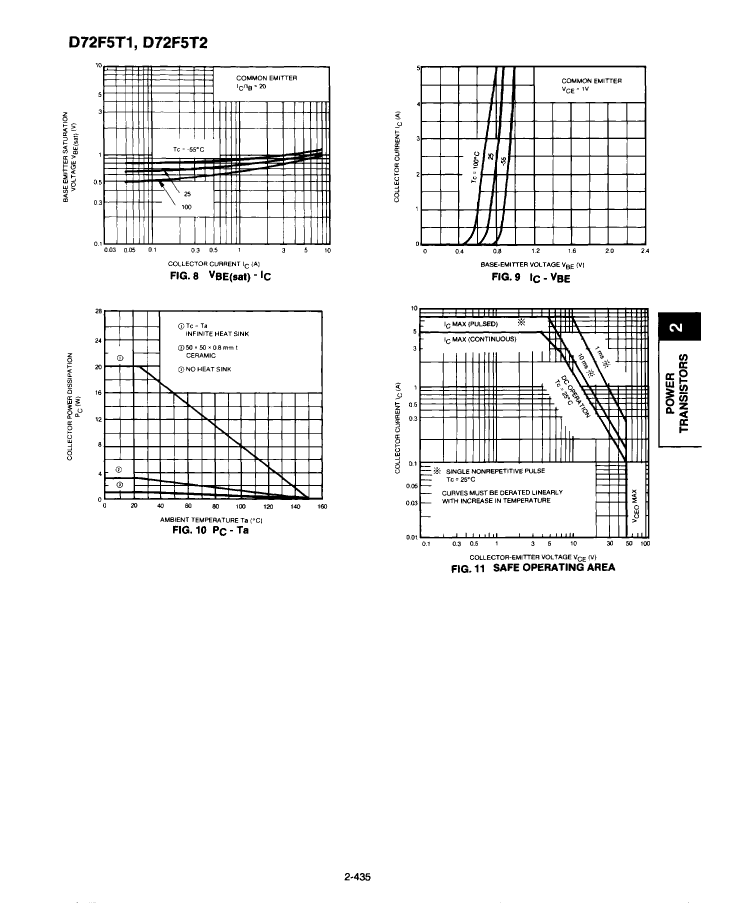

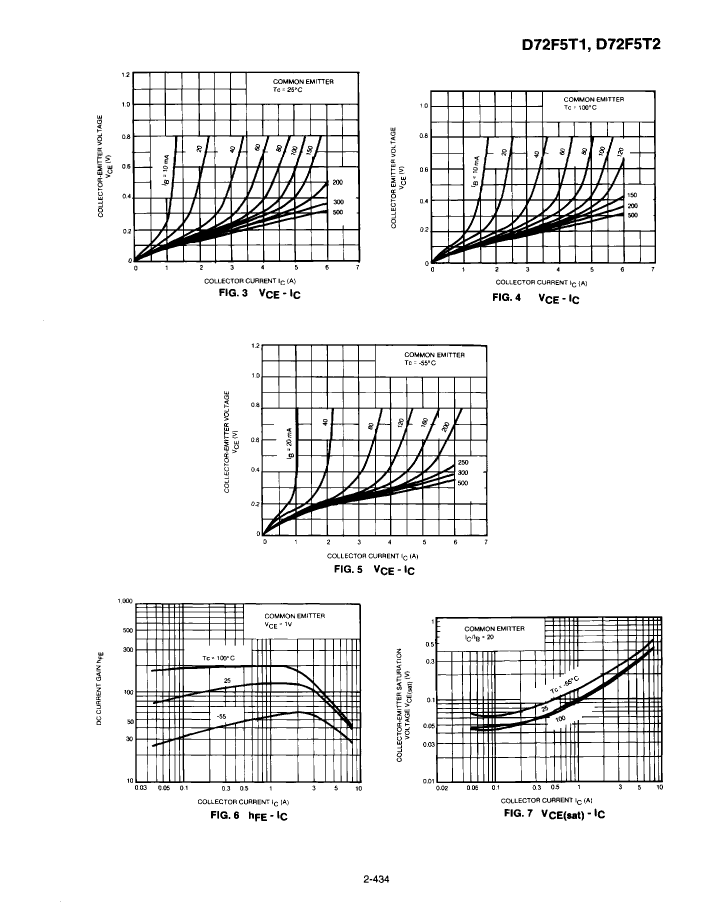

D72F5T2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRenesas Electronics Corporation
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)5 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE
Minimum DC current gain (hFE)30
JEDEC-95 codeTO-252AA
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power consumption environment20 W
Maximum power dissipation(Abs)20 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
VCEsat-Max0.4 V

D72F5T2 Related Products

D72F5T2 D72F5T1
Description 5000mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-252AA 5000mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-251AA
Is it Rohs certified? incompatible incompatible
Reach Compliance Code not_compliant not_compliant
ECCN code EAR99 EAR99
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 5 A 5 A
Collector-emitter maximum voltage 50 V 50 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 30 30
JEDEC-95 code TO-252AA TO-251AA
JESD-30 code R-PSSO-G2 R-PSIP-T3
JESD-609 code e0 e0
Number of components 1 1
Number of terminals 2 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type NPN NPN
Maximum power consumption environment 20 W 20 W
Maximum power dissipation(Abs) 20 W 20 W
Certification status Not Qualified Not Qualified
surface mount YES NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
VCEsat-Max 0.4 V 0.4 V
