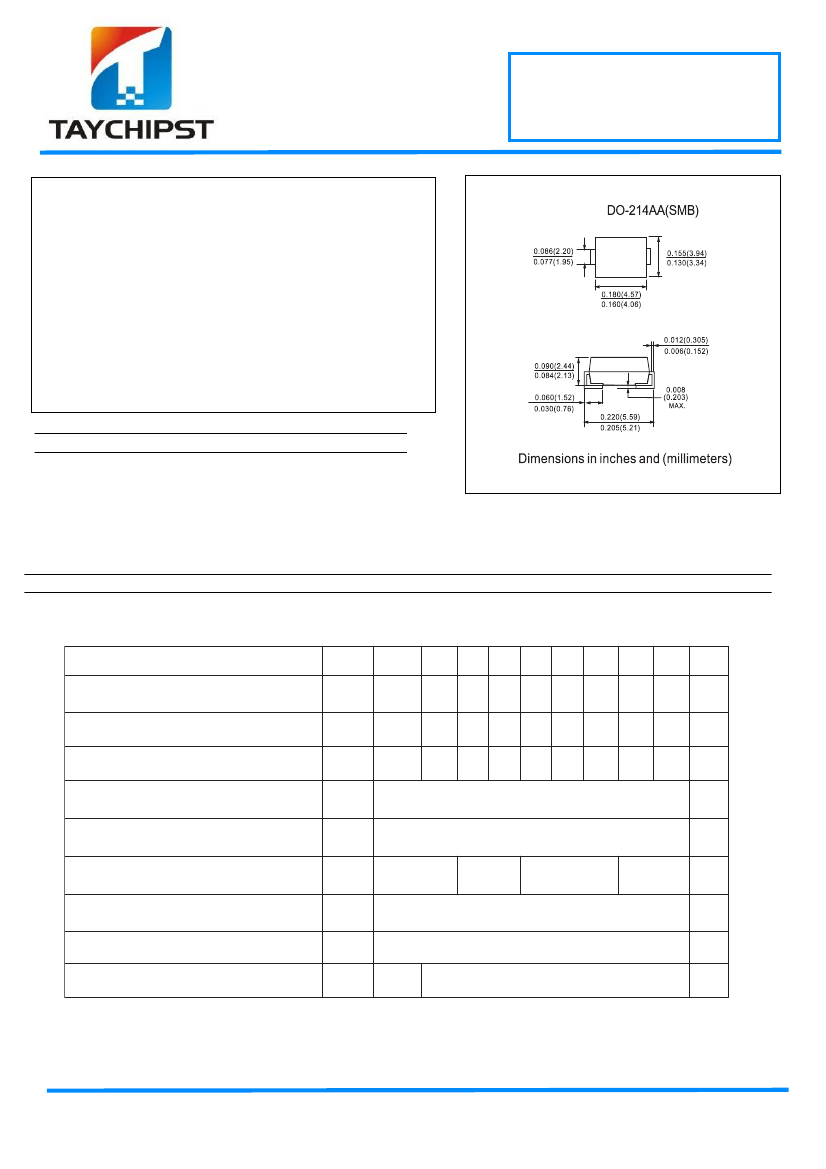

BR34 THRU BR320
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
40V-200V
3.0A
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
• For surface mounted applications
• Low profile package
• Built-in strain relief
• Metal to silicon rectifier. majority carrier conduction
• Low power loss,high efficiency
• High surge capacity
• For use in low voltage high frequency inverters, free wheeling,
and polarity protection applications
• In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
•
•
•
•
•
Case: JEDEC DO-214AA molded plastic
Terminals:Solder plated, solderable per MIL-STD-750,Method 2026
Polarity: Color band denotes positive end (cathode)
Standard packaging: 12mm tape (EIA-481)
Weight: 0.0032 ounce, 0.092 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
.
Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load.
PARAMETER
Maxi mum Recurrent Peak Reverse Voltage
Maxi mum RMS Voltage
Maxi mum D C Blocki ng Voltage
Maxi mum Average Forward C urrent (See fi gure 1)
Peak Forward Surge C urrent :8.3ms si ngle half si ne-wave
superi mposed on rated load(JED EC method)
Maxi mum Forward Voltage at 3.0A ( Note 1)
Maxi mum D C Reverse C urrent T
J
=25
O
C
at Rated D C Blocki ng Voltage T
J
=100
O
C
Typi cal Thermal Resi stance ( Note 2)
O p e r a t i n g J u n c t i o n a n d S t o r a g e Te m p e r a t u r e
R a ng e
NOTES:
1. Pulse Test with PW =300µsec, 2% Duty Cycle.
2. Mounted on P.C. Board with 8.0mm
2
(.013mm thick) copper pad areas.
SYMBOL
V
R R M
V
R M S
V
D C
I
F (A V )
I
F S M
V
F
I
R
R
θ
J L
R
θ
J A
BR34
BR34A BR35
BR36
BR38
BR39
BR310 BR315 BR320
UNITS
V
V
V
A
A
40
28
40
45
3 1 .5
45
50
35
50
60
42
60
80
56
80
3.0
80
90
63
90
100
70
100
150
105
150
200
140
200
0.70
0.74
0.05
20
20
75
0.80
0.90
V
mA
O
C/W
O
T
J
, T
S T G
-55 to +150
-65 to +175
C
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
BR34 THRU BR320
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
40V-200V
3.0A

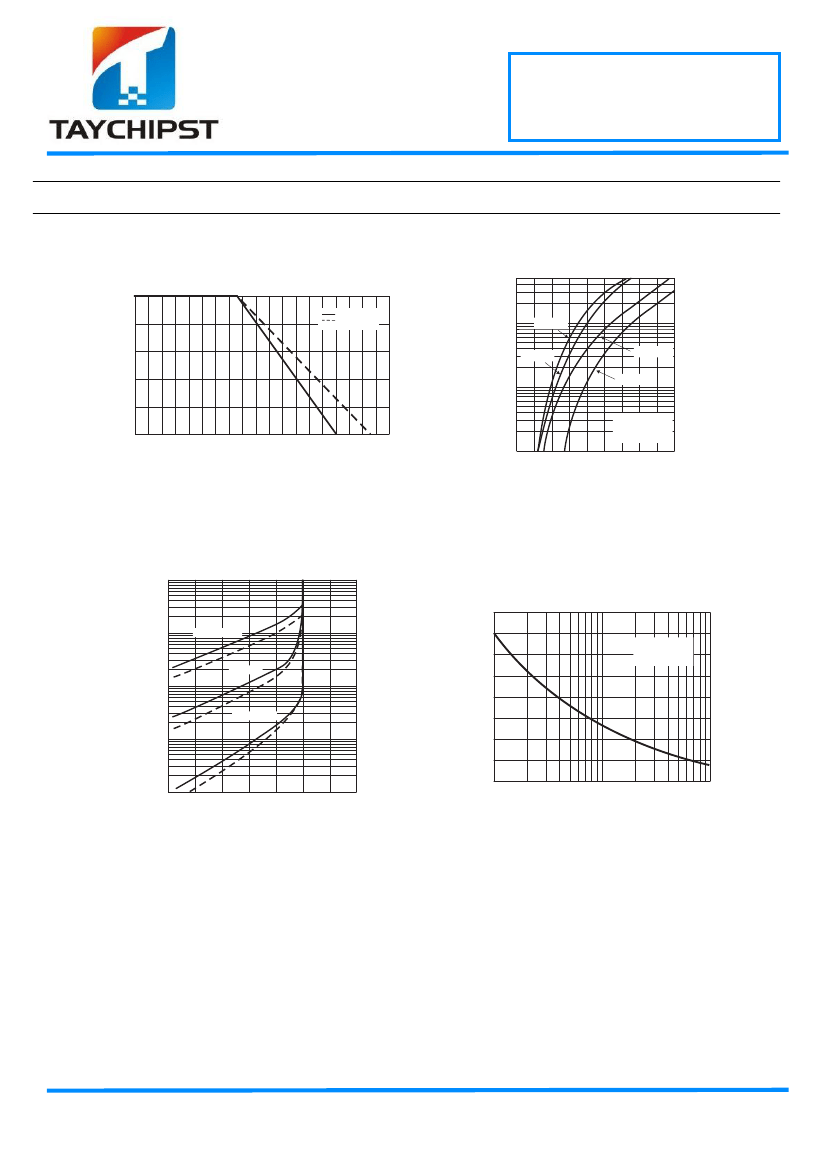

RATINGS AND CHARACTERISTIC CURVES
BR34 THRU BR320
50
AVERAGE FORWARD RECTIFIED
CURRENT AMPERES
2.5
2.0
1.5
1.0
0
0
20
40
60
80
100
120
140
= 40V
= 45-200V
INSTANTANEOUS FORWARD CURRENT
AMPERES
3.0
10
40-45V
80-100V
150-200V
50-60V
1.0
160
180
TJ=25 C
f=1.0mHz
Visg=5mVp-p
O
0.1
LEAD TEMPERATURE,
O
C
Fig.1- FORWARD CURRENT DERATING CURVE
.4
.5
.6
.7
.8 .9 1.0 1.1
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Fig.2- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTIC
10
INSTANTANEOUS REVERSE CURRENT, mA
90
1.0
T
J
=100 C
O
PEAK FORWARD SURGE CURRENT,
80
70
60
50
40
30
20
10
1
2
5
10
8.3ms Single
Half Since-Wave
JEDEC Method
T
J
=
75
O
C
0.1
T
J
=
25
O
C
.01
.001
0
20
40
60
80
100 120
140
20
50
100
NO. OF CYCLE AT 60Hz
PERCENT OF INSTANTANEOUS REVERSE VOLTAGE,(%)
Fig.3- TYPICAL REVERSE CHARACTERISTIC
Fig.4- MAXIMUM NON - REPETITIVE SURGE CURRENT
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
