DD44Q5 datasheet, PDF - EEWORLD Datasheet

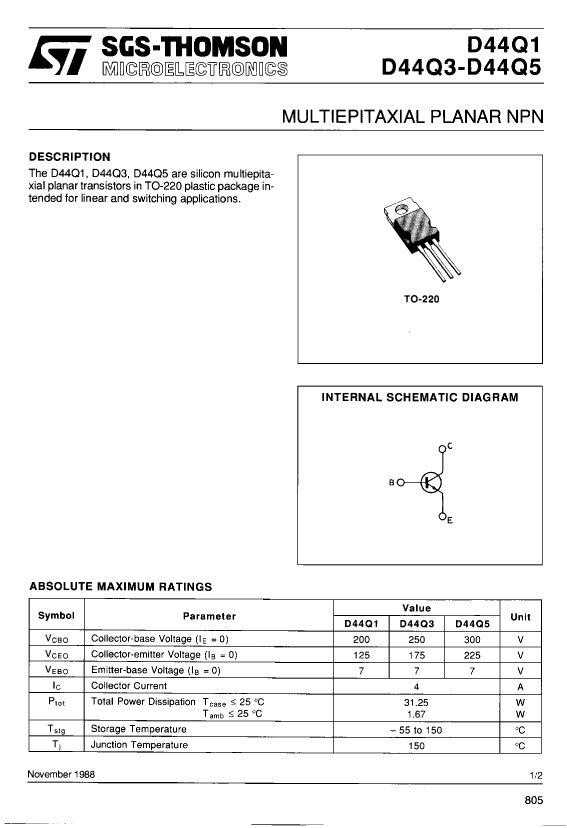

DD44Q5: Description4A, 225V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size34KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

DD44Q5 Overview

4A, 225V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

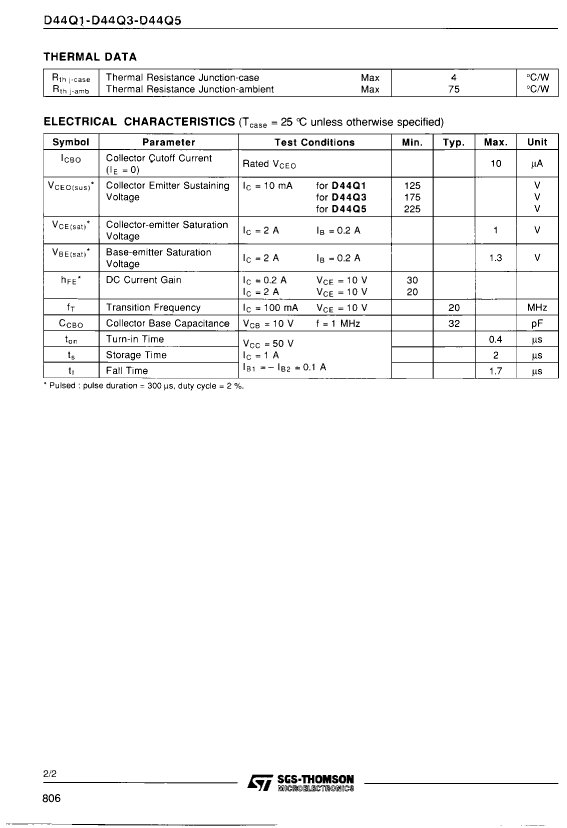

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MULTIEPITAXIAL PLANAR
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	225 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	31.25 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	20 MHz
Maximum off time (toff)	3700 ns
Maximum opening time (tons)	400 ns
VCEsat-Max	1 V

	DD44Q5	P0603Y2521PGTA	DD44Q1
Description	4A, 225V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	Fixed Resistor, Thin Film, 0.125W, 2520ohm, 75V, 0.02% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP	4A, 125V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN
package instruction	FLANGE MOUNT, R-PSFM-T3	CHIP	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	MULTIEPITAXIAL PLANAR	ANTI-SULFUR, HIGH PRECISION	MULTIEPITAXIAL PLANAR
Number of terminals	3	2	3
Maximum operating temperature	150 °C	155 °C	150 °C
Package form	FLANGE MOUNT	SMT	FLANGE MOUNT
surface mount	NO	YES	NO
Maker	STMicroelectronics	-	STMicroelectronics
Parts packaging code	SFM	-	SFM
Contacts	3	-	3
Maximum collector current (IC)	4 A	-	4 A
Collector-emitter maximum voltage	225 V	-	125 V
Configuration	SINGLE	-	SINGLE
Minimum DC current gain (hFE)	20	-	20
JEDEC-95 code	TO-220AB	-	TO-220AB
JESD-30 code	R-PSFM-T3	-	R-PSFM-T3
Number of components	1	-	1
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR
Polarity/channel type	NPN	-	NPN
Maximum power consumption environment	31.25 W	-	31.25 W
Certification status	Not Qualified	-	Not Qualified
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE
transistor applications	SWITCHING	-	SWITCHING
Transistor component materials	SILICON	-	SILICON
Nominal transition frequency (fT)	20 MHz	-	20 MHz
Maximum off time (toff)	3700 ns	-	3700 ns
Maximum opening time (tons)	400 ns	-	400 ns
VCEsat-Max	1 V	-	1 V
