D75N16C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D75N16C

D75N16C: DescriptionRectifier Diode, 1 Phase, 1 Element, 75A, 1600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size192KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

D75N16C Overview

Rectifier Diode, 1 Phase, 1 Element, 75A, 1600V V(RRM), Silicon,

D75N16C Parametric

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknown
application	POWER
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	1430 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	75 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

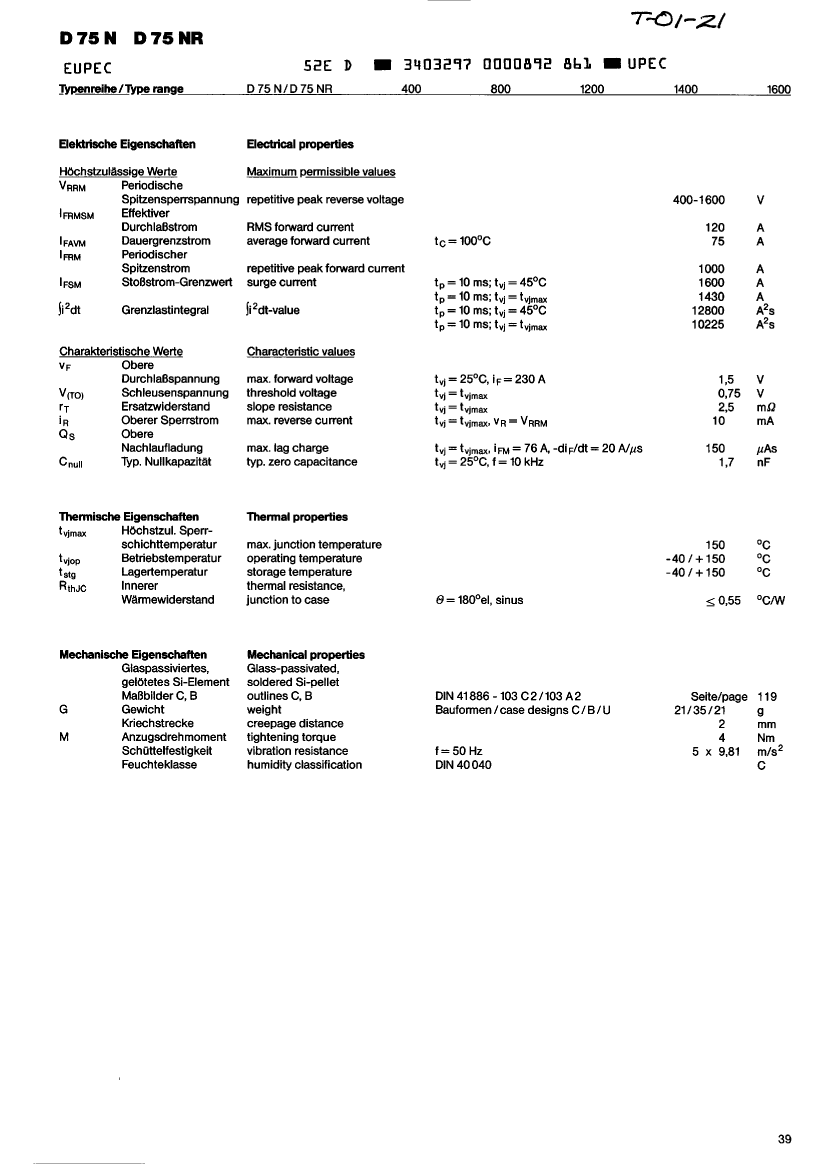

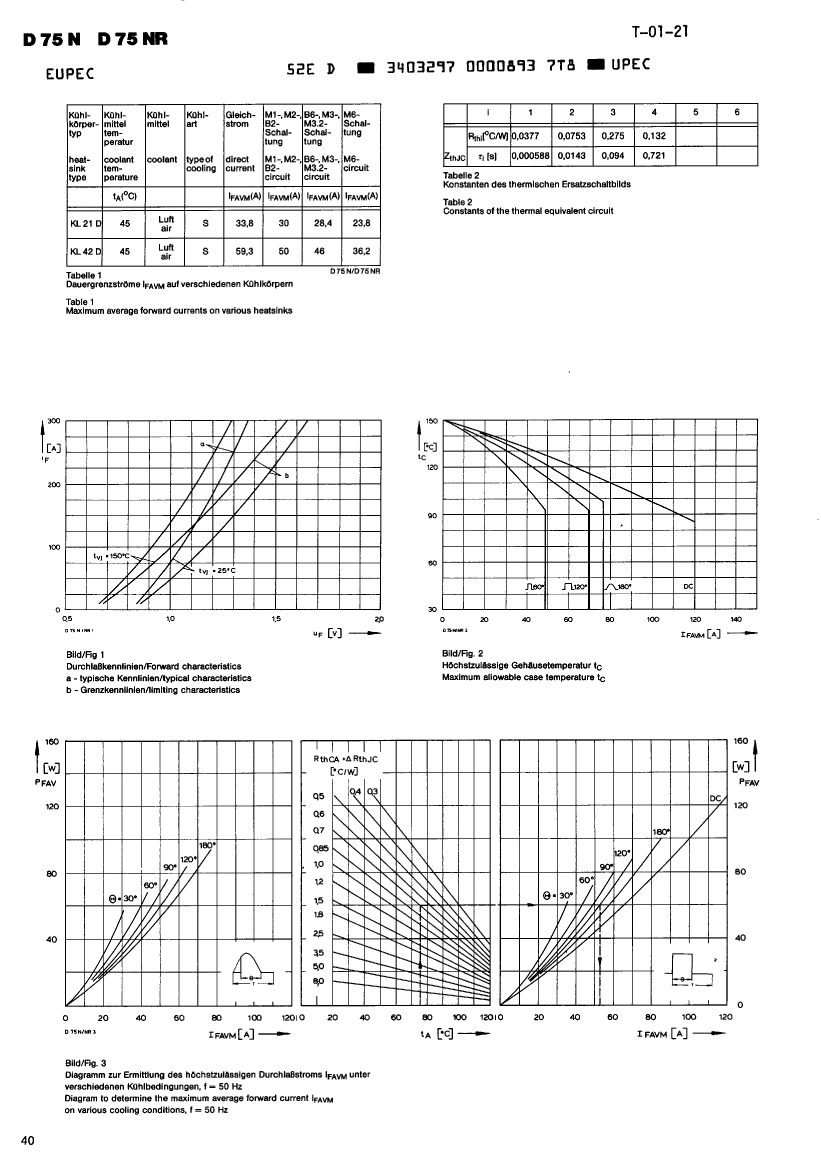

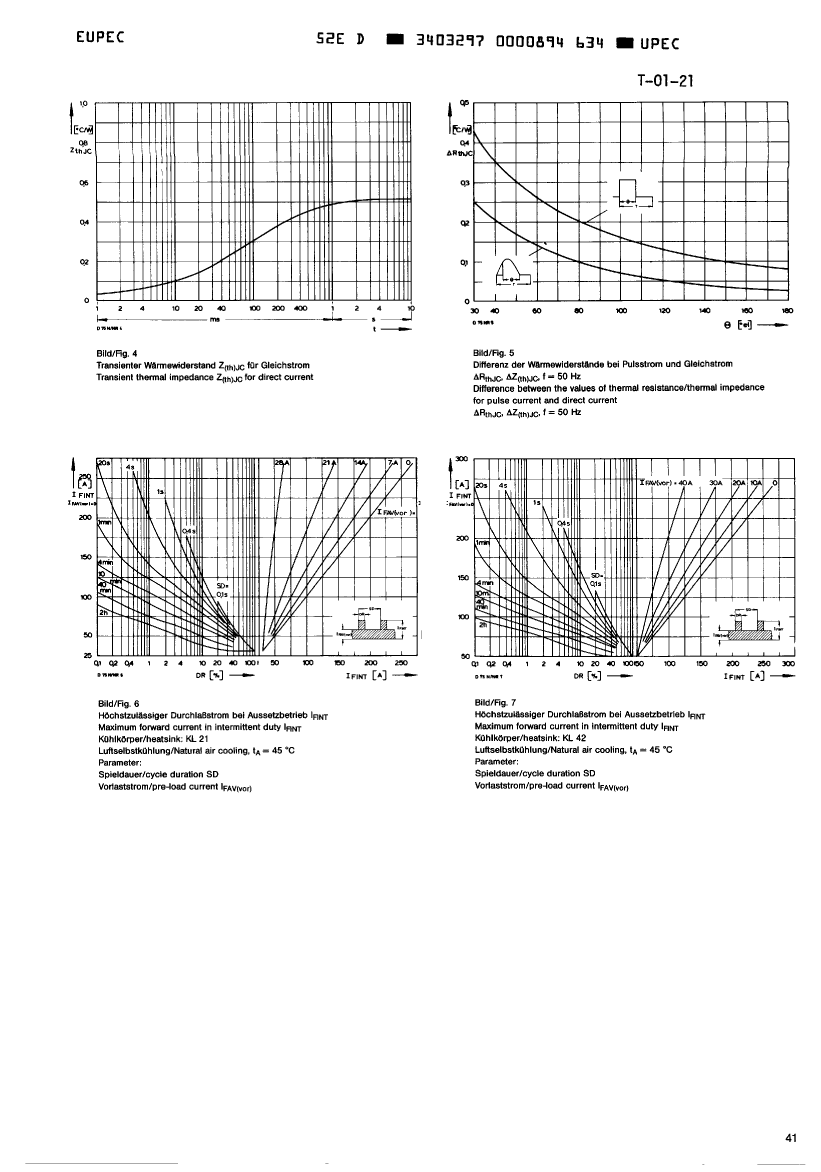

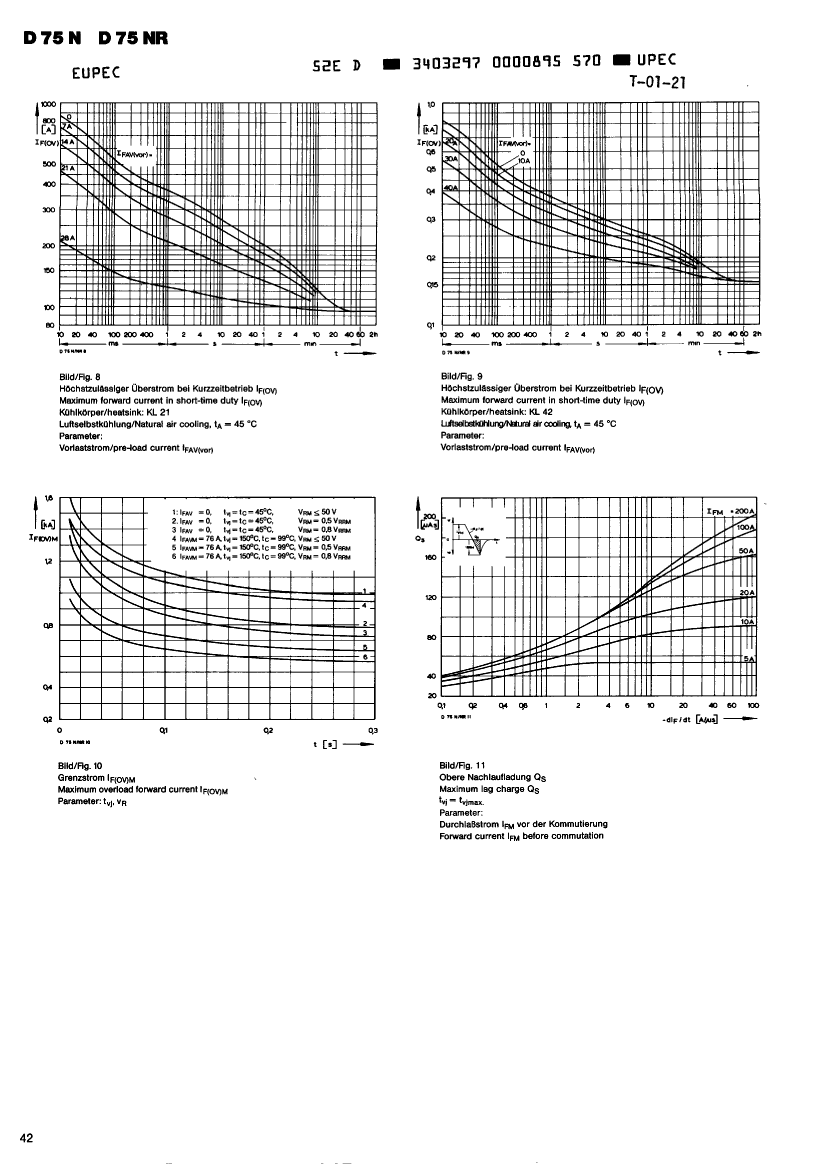

Preview

Download Datasheet

View All

D75N16C Related Products

	D75N16C	D75N14C	D75N16U	D75N14U	D75N12C	D75N12U	D75N16B	D75N08B	D75N12B	D75N14B
Description	Rectifier Diode, 1 Phase, 1 Element, 75A, 1600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 75A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 75A, 1600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 75A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 75A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 75A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Element, 75A, 1600V V(RRM),	Rectifier Diode, 1 Element, 75A, 800V V(RRM),	Rectifier Diode, 1 Element, 75A, 1200V V(RRM),	Rectifier Diode, 1 Element, 75A, 1400V V(RRM),
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum non-repetitive peak forward current	1430 A	1430 A	1430 A	1430 A	1430 A	1430 A	1400 A	1400 A	1400 A	1400 A
Number of components	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	75 A	75 A	75 A	75 A	75 A	75 A	75 A	75 A	75 A	75 A
Maximum repetitive peak reverse voltage	1600 V	1400 V	1600 V	1400 V	1200 V	1200 V	1600 V	800 V	1200 V	1400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	EUPEC [eupec GmbH]	-	-	-	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]
application	POWER	POWER	POWER	POWER	POWER	POWER	-	-	-	-
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	-	-	-	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	-	-	-	-
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	-	-	-	-
Phase	1	1	1	1	1	1	-	-	-	-
Number of terminals	1	1	1	1	1	1	-	-	-	-
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	-	-	-	-
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	-	-	-	-
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	-	-	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-	-
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	-	-	-
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	-	-	-	-
