T698F02TDL datasheet, PDF - EEWORLD Datasheet

T698F02TDL: DescriptionSilicon Controlled Rectifier, 1100A I(T)RMS, 698000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size297KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

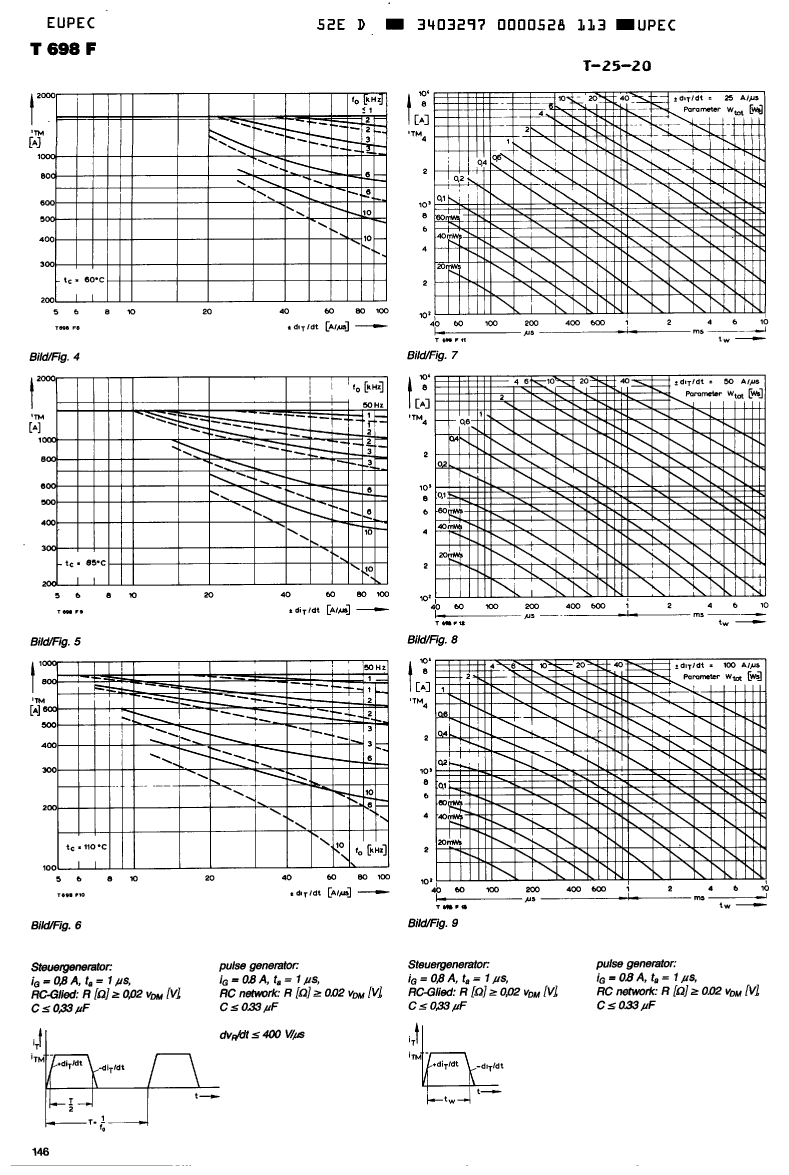

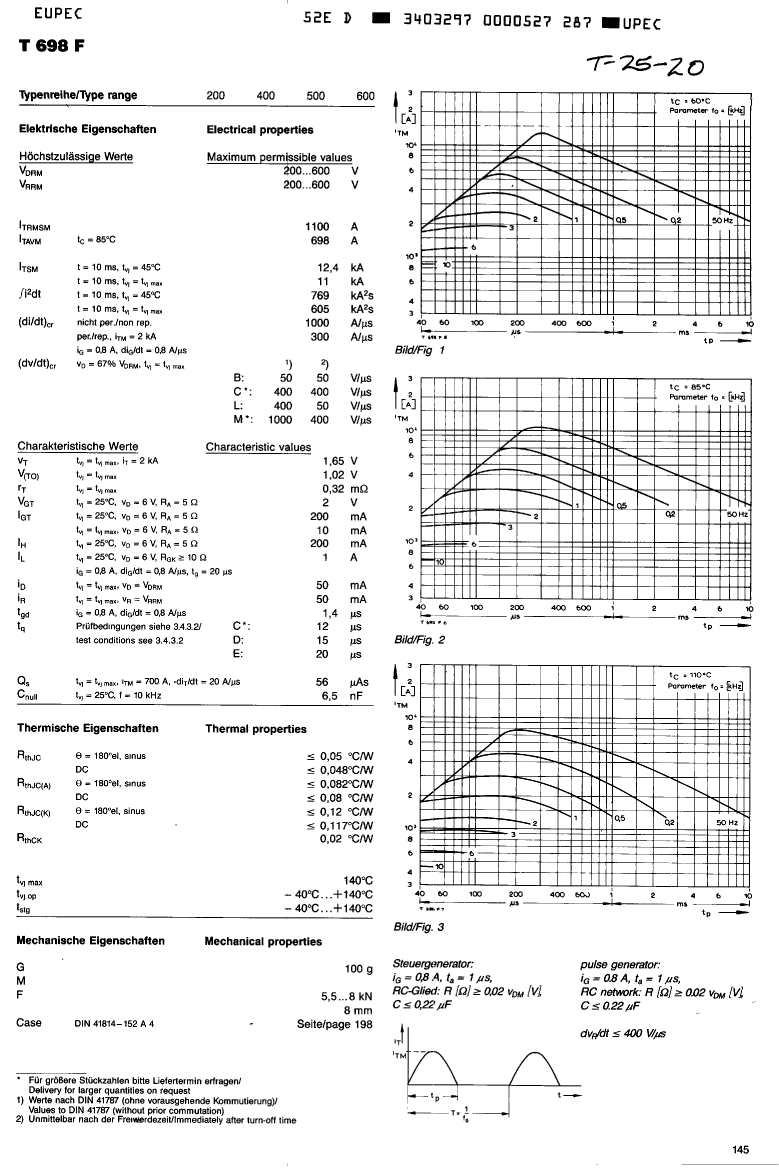

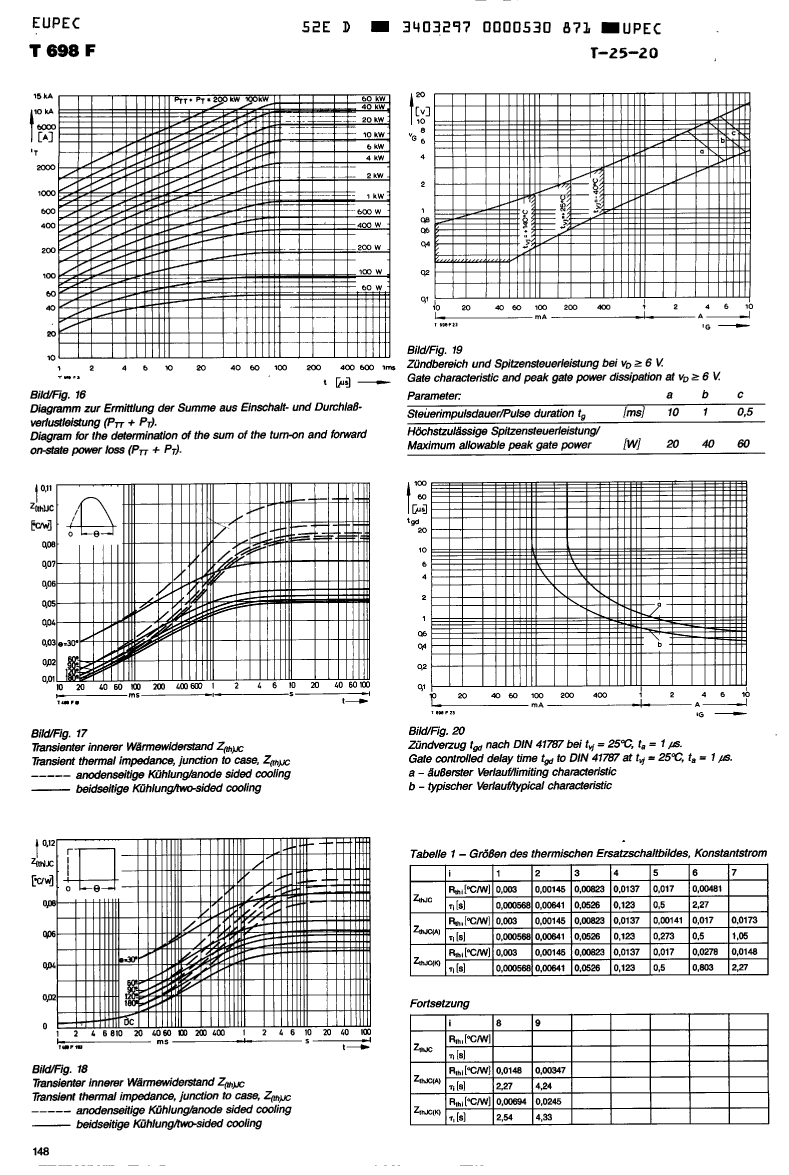

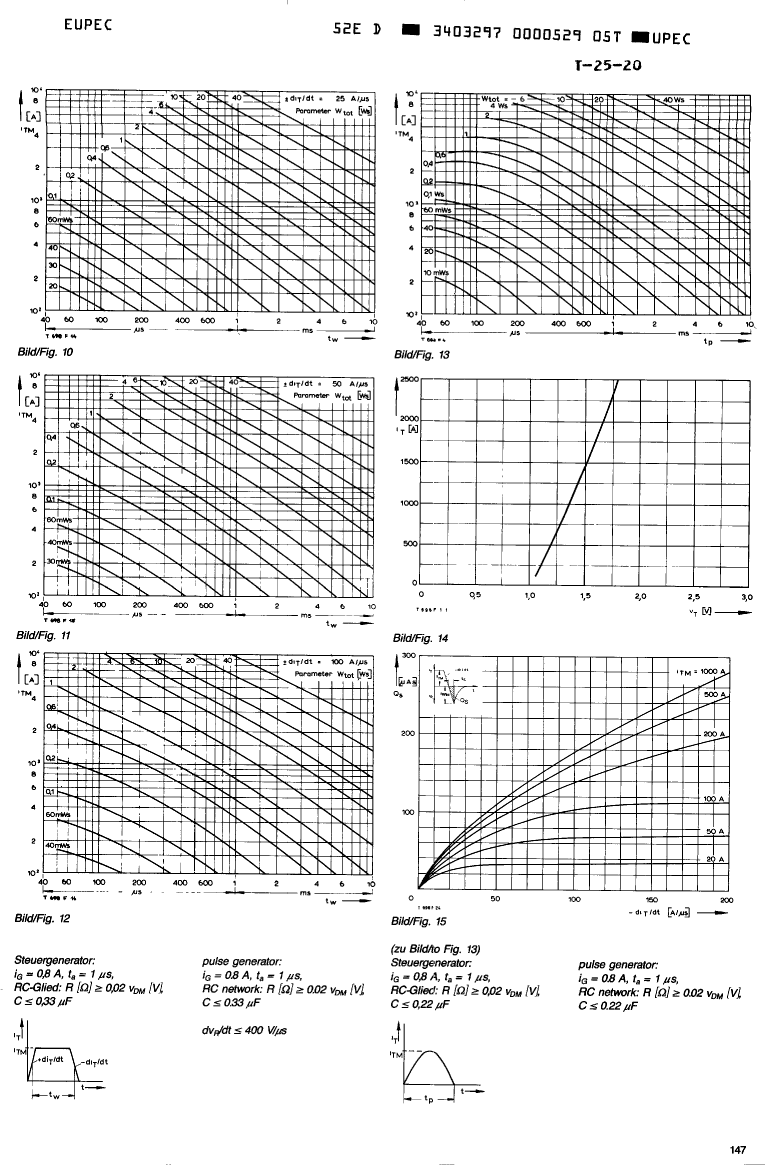

T698F02TDL Overview

Silicon Controlled Rectifier, 1100A I(T)RMS, 698000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element,

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknown
Other features	FAST
Nominal circuit commutation break time	15 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	200 mA
JESD-30 code	O-CXDB-X5
Maximum leakage current	50 mA
On-state non-repetitive peak current	11000 A
Number of components	1
Number of terminals	5
Maximum on-state current	698000 A
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	1100 A
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR
