PERATURE
HIGH TEM
Document 843-1

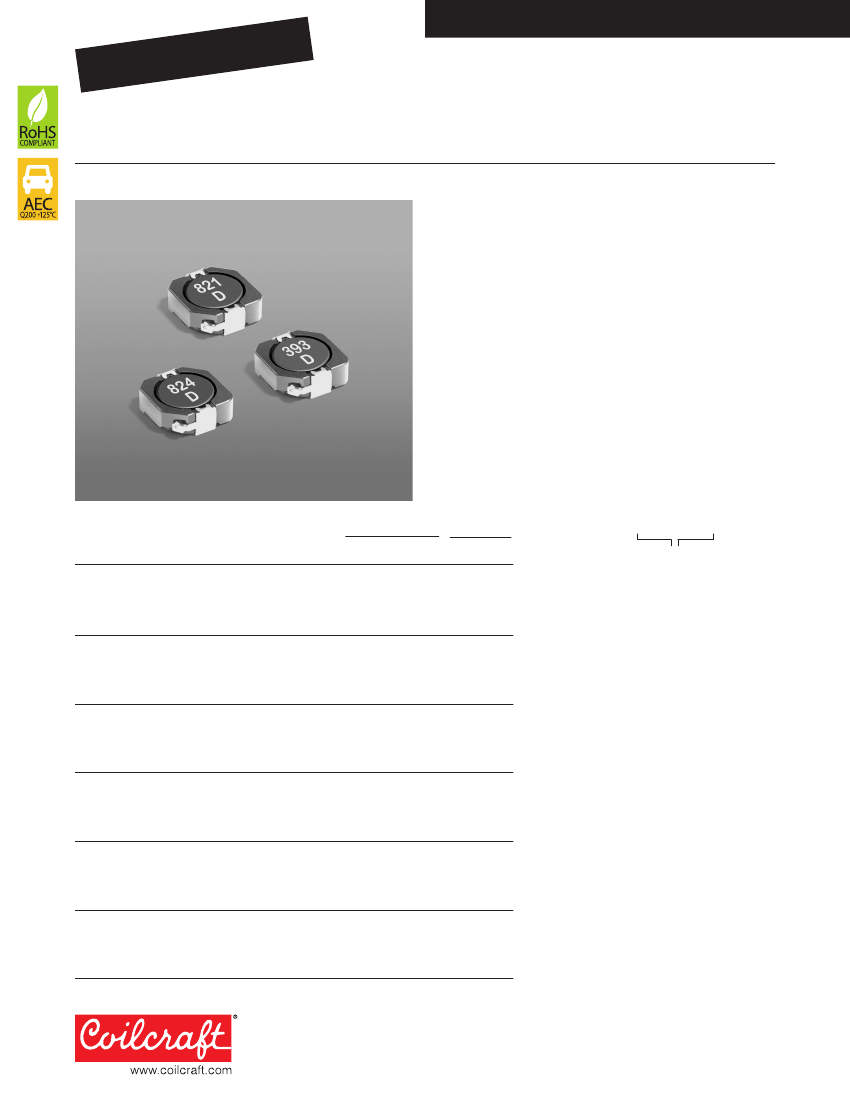

SMT Power Inductors – MSS1038T
• 10.0 × 10.2 mm footprint; 3.8 mm high shielded inductors
• Designed for high temperature applications; ambient temper-
ature up to 165°C.
• AEC-Q200 qualified
• Very low DCR and excellent current handling
Core material
Ferrite
Terminations
RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight:
1.5 g
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C to
+165°C with derated current
Storage temperature
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel; 1000/13″ reel; Plastic tape: 24 mm wide,
0.35 mm thick, 16 mm pocket spacing, 4.3 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other
solvents, see Doc787_PCB_Washing.pdf.
Isat
(A)
4
Irms
(A)
5
DCR SRF
Inductance
2
max typ
3
10% 20% 30% 20°C 40°C
1
Part number
(µH)
(m) (MHz) drop drop drop rise rise
MSS1038T-821NL_
0.82 ±30%
6.0 138
9.00 11.16 12.10 7.30 10.00
MSS1038T-152NL_
1.5 ±30%
8.1 81
7.40 9.48 11.06 5.60 7.85
MSS1038T-252NL_
2.5 ±30%
10
61
5.70 7.62 9.26 4.65 6.65
MSS1038T-382NL_
3.8 ±30%
13
45
4.94 6.50 7.64 4.25 6.05
MSS1038T-522NL_
5.2 ±30%
22
37
3.96 5.28 6.14 3.60 5.10
MSS1038T-702NL_
7.0 ±30%
27
33
3.62 4.74 5.60 3.10 4.35
MSS1038T-103NL_ 10 ±30%
35
29
3.04 3.90 4.52 2.90 4.05
MSS1038T-123ML_ 12 ±20%
41
25
2.72 3.48 4.04 2.85 4.00
MSS1038T-153ML_ 15 ±20%
50
21
2.84 3.44 3.86 2.70 3.80
MSS1038T-183ML_ 18 ±20%
65
18
2.44 3.10 3.52 2.25 3.35
MSS1038T-223ML_ 22 ±20%
73
15
2.34 2.94 3.30 1.90 2.85
MSS1038T-273ML_ 27 ±20%
89
15
1.98 2.48 2.84 1.65 2.35
MSS1038T-333ML_ 33 ±20%
93
13
1.84 2.34 2.62 1.60 2.30
MSS1038T-393ML_ 39 ±20%
112
12
1.60 2.04 2.34 1.55 2.25
MSS1038T-473ML_ 47 ±20%
128
11
1.60 1.98 2.22 1.45 2.20
MSS1038T-563ML_ 56 ±20%
180
11
1.48 1.84 2.04 1.40 1.85
MSS1038T-683ML_ 68 ±20%
213
10
1.32 1.62 1.82 1.15 1.75
MSS1038T-823ML_ 82 ±20%
261
8
1.12 1.42 1.60 1.09 1.50
MSS1038T-104ML_ 100 ±20%
304
6
1.02 1.30 1.46 1.05 1.45
MSS1038T-124KL_ 120 ±10%
380
6
0.95 1.18 1.34 0.85 1.25
MSS1038T-154KL_ 150 ±10%
506
6
0.89 1.10 1.22 0.80 1.20
MSS1038T-184KL_ 180 ±10%
582
5
0.89 1.02 1.16 0.71 0.98
MSS1038T-224KL_ 220 ±10%
756
5
0.72 0.88 0.99 0.70 0.97
MSS1038T-274KL_ 270 ±10%
926
4
0.66 0.81 0.91 0.65 0.86
MSS1038T-334KL_ 330 ±10% 1090
4
0.59 0.73 0.82 0.50 0.69
MSS1038T-394KL_ 390 ±10% 1141
4
0.51 0.65 0.74 0.49 0.65
MSS1038T-474KL_ 470 ±10% 1243
3
0.50 0.62 0.70 0.45 0.63
MSS1038T-564KL_ 560 ±10% 1696
3
0.43 0.53 0.56 0.43 0.59
MSS1038T-684KL_ 680 ±10% 1926
3
0.38 0.48 0.52 0.36 0.50
MSS1038T-824KL_ 820 ±10% 2596
3
0.37 0.46 0.49 0.34 0.47
MSS1038T-105KL_ 1000 ±10% 2853
3
0.35 0.43 0.46 0.33 0.45
1. Please specify
termination
and
packaging
codes:
MSS1038T-105KLC
Termination: L
= RoHS compliant matte tin over
nickel over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (250 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready. To have a leader
and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory or-
der only, not stocked (1000 parts
per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc
using an Agilent/HP 4263B LCR meter or equivalent.
3. SRF measured using an Agilent/HP 8753D or
equivalent.
4. DC current at which the inductance drops the speci-
fied amount from its value without current.
5. Current that causes the specified temperature rise
from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 843-1
Revised 08/2/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
PERATURE
HIGH TEM
SMT Power Inductors – MSS1038T

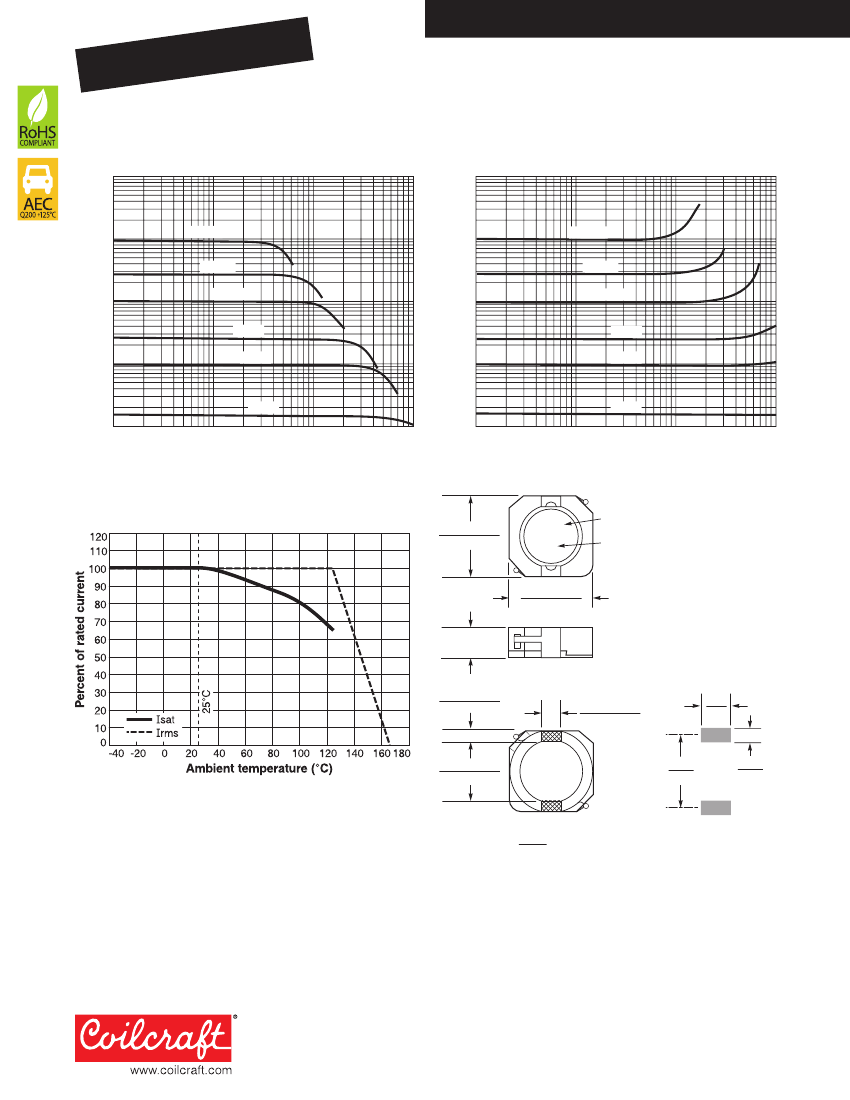

Typical L vs Current
10000
Document 843-2
Typical L vs Frequency
10000
1000
1000 µH
270 µH
1000
1000 µH
270 µH
Inductance (µH)
100
100 µH
Inductance (µH)
100
100 µH
27 µH
27 µH
10
10 µH
10
10 µH
1.5 µH
1.5 µH
1
0.01
0.1
1
10
1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
Typical Current Derating
0.402 ±0.012
10,2 ±0,3
123
X
0.394 ±0.008
10,0 ±0,2
Dash number
Internal code
Parts manufactured prior
to Sept. 2007 were marked
with only the dash number.
0.150 ±0.008
3,8 ±0,2
Recommended
Land Pattern
0.118 ±0.008
3,0 ±0,2
0.14
3,56
0.047 ±0.008
1,2 ±0,2
0.303 ±0.008
7,7 ±0,2
0.37
9,40
0.07
1,78
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 843-2
Revised 08/02/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
RF/Wirelessly
