32.000MHZXOR32-7C-UTC datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 32.000MHZXOR32-7C-UTC

32.000MHZXOR32-7C-UTC: DescriptionLVCMOS Output Clock Oscillator, 32MHz Nom, SMD, 4 PIN; CategoryPassive components oscillator; File Size153KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

32.000MHZXOR32-7C-UTC Overview

LVCMOS Output Clock Oscillator, 32MHz Nom, SMD, 4 PIN

32.000MHZXOR32-7C-UTC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	7%
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.95mm
longest rise time	2 ns
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

EURO

QUARTZ

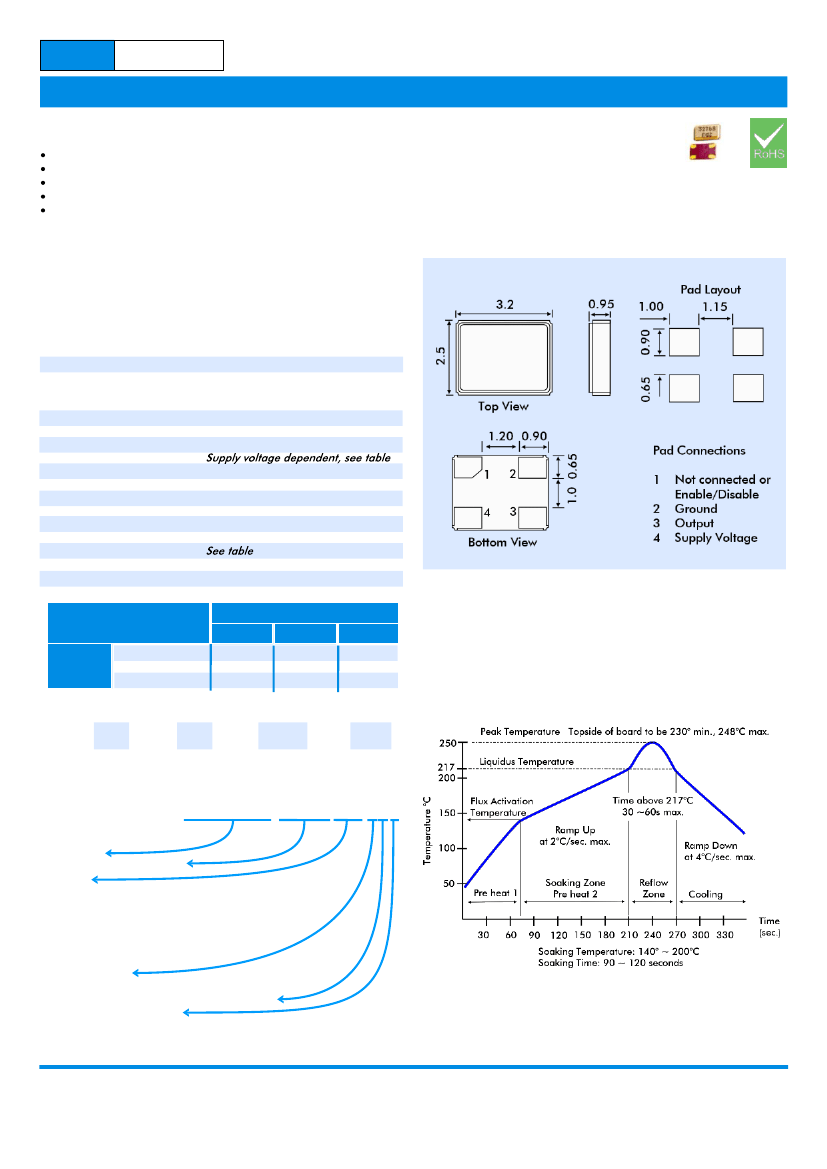

3.2 x 2.5mm SMD High Precision Oscillator

FEATURES

High frequency stability 3.2 x 2.5mm SMD oscillator

Femto second integrated phase jitter (300 fs typical)

Superior phase noise -145dBc/Hz at 100kHz offset

Frequency Range 1.0MHz to 56MHz

Supply voltage 1.8V, 2.5V or 3.3Volts

DESCRIPTION

XOR32 oscillators are high performance SMD clock oscillators with

tight temperature stability. The part exhibits superior phase noise

performance, -145dBc/Hz at 10kHz and -150dBc/Hz at 100kHz

offset. Integrated phase jitter is 300fs typical, 12kHZ to 20MHz.

XOR32 Oscillators

1.0MHz to 56.0MHz

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Frequency Stability

Commercial:

Industrial:

Output Voltage HIGH ‘1’:

Output Voltage LOW ‘0’:

Output Logic:

Current Consumption:

Load:

Rise/Fall Time:

Start-up Time:

Symmetry:

Tristate Function:

Phase Jitter:

Phase Noise:

Storage Temperature:

Ageing:

1.0MHz to 56.0MHz

from ±7ppm over -10° to +70°C

from ±15ppm over -40° to +85°C

Vdd-0.4 min.

0.1V typical. 0.4V maximum

LVCMOS

15pF

2ns typical (10% to 90%Vdd)

0.6ms typical, 1.0ms maximum

50%±5% measured at Vdd/2

Implemented as standard

300 fs typical, 12kHz to 20MHz

55° to +150°C

±2ppm/year max. for first year

Supply Voltage (±10%)

+1.8V

Supply

Current

Typical

1.0~19.99MHz

20.0~39.99MHz

40.0~52.0MHz

1.5mA

3.0mA

4.5mA

+2.5V

2.5mA

3.5mA

5.0mA

+3.3V

4.0mA

5.0mA

7.0mA

SOLDER TEMPERATURE PROFILE

SSB PHASE NOISE

Offset

10Hz 100Hz

dBc/Hz

-65

-100

1kHz 10kHz

-130 -148

100kHz 1MHz

-152

10MHz

-155

Current Consumption

PART NUMBERING

Example:

32.000MHz XOR32-7C-UTC

Frequency

Series Designation XOR32

Stability

Required stability over

operating temperature

range. e.g '7C' for ±7ppm over

-10° to +70°C; '15I' = ±15ppm

over -40° to +85°C

Output HCMOS

Tristate (Enable/Disable) Function (Standard)

Supply Voltage

A = 3.3 Volts

B = 2.5 Volts

C = 1.8 Volts

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

32.000MHZXOR32-7C-UTC Related Products

	32.000MHZXOR32-7C-UTC	56.000MHZXOR32-7C-UTB	56.000MHZXOR32-7C-UTC	56.000MHZXOR32-7C-UTA	32.000MHZXOR32-7C-UTB	32.000MHZXOR32-7C-UTA	1.000MHZXOR32-7C-UTC	1.000MHZXOR32-7C-UTA	1.000MHZXOR32-7C-UTB
Description	LVCMOS Output Clock Oscillator, 32MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 56MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 56MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 56MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 32MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 32MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 1MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 1MHz Nom, SMD, 4 PIN	LVCMOS Output Clock Oscillator, 1MHz Min, 56MHz Max, 1MHz Nom, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz	Euroquartz
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	7%	7%	7%	7%	7%	7%	7%	7%	7%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	32 MHz	56 MHz	56 MHz	56 MHz	32 MHz	32 MHz	1 MHz	1 MHz	1 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS	LVCMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm	3.2mm x 2.5mm x 0.95mm
longest rise time	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns
Maximum supply voltage	1.98 V	2.75 V	1.98 V	3.63 V	2.75 V	3.63 V	1.98 V	3.63 V	2.75 V
Minimum supply voltage	1.62 V	2.25 V	1.62 V	2.97 V	2.25 V	2.97 V	1.62 V	2.97 V	2.25 V
Nominal supply voltage	1.8 V	2.5 V	1.8 V	3.3 V	2.5 V	3.3 V	1.8 V	3.3 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
package instruction	-	DILCC4,.1,83	DILCC4,.1,83	DILCC4,.1,83	-	-	DILCC4,.1,83	DILCC4,.1,83	DILCC4,.1,83
Number of terminals	-	4	4	4	-	-	4	4	4
Maximum operating frequency	-	56 MHz	56 MHz	56 MHz	-	-	56 MHz	56 MHz	56 MHz
Minimum operating frequency	-	1 MHz	1 MHz	1 MHz	-	-	1 MHz	1 MHz	1 MHz
Package body material	-	CERAMIC	CERAMIC	CERAMIC	-	-	CERAMIC	CERAMIC	CERAMIC
Encapsulate equivalent code	-	DILCC4,.1,83	DILCC4,.1,83	DILCC4,.1,83	-	-	DILCC4,.1,83	DILCC4,.1,83	DILCC4,.1,83
power supply	-	2.5 V	1.8 V	3.3 V	-	-	1.8 V	3.3 V	2.5 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified
