61395-21114 datasheet, PDF - EEWORLD Datasheet

61395-21114: DescriptionCard Edge Connector, 168 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Ivory Insulator, Receptacle,; CategoryThe connector The connector; File Size279KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

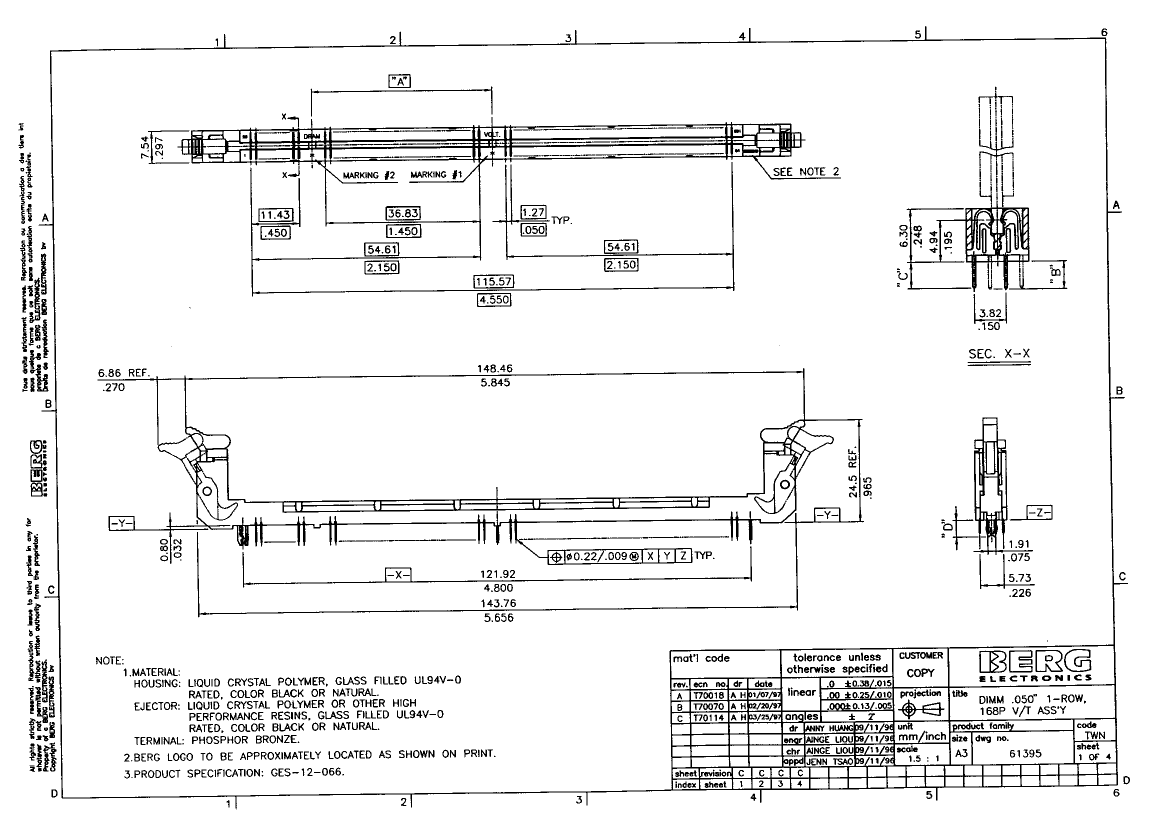

61395-21114 Overview

Card Edge Connector, 168 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Ivory Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1733237493
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.1
Other features	SYNC DRAM, 5.0 VOLT

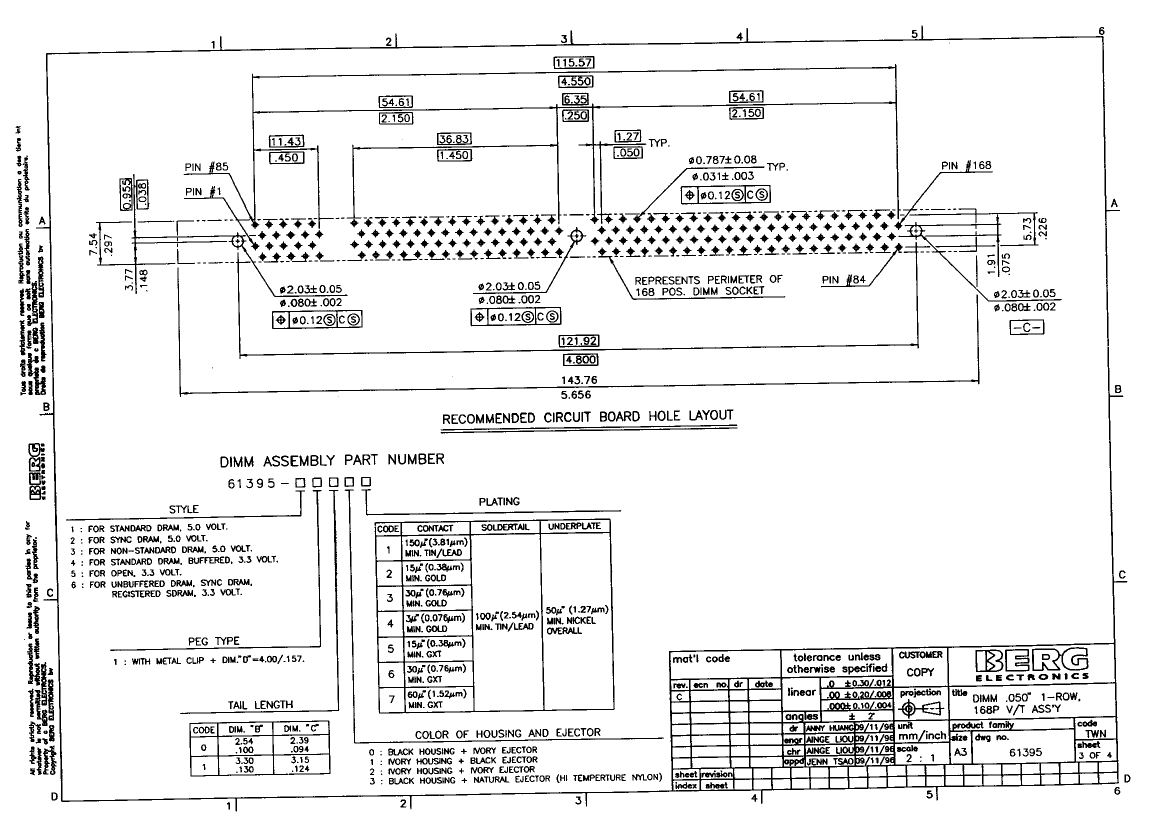

Board mount options	SPLIT BOARD LOCK
body width	0.297 inch
subject depth	0.965 inch
body length	5.656 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (3) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	IVORY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Plating thickness	3u inch

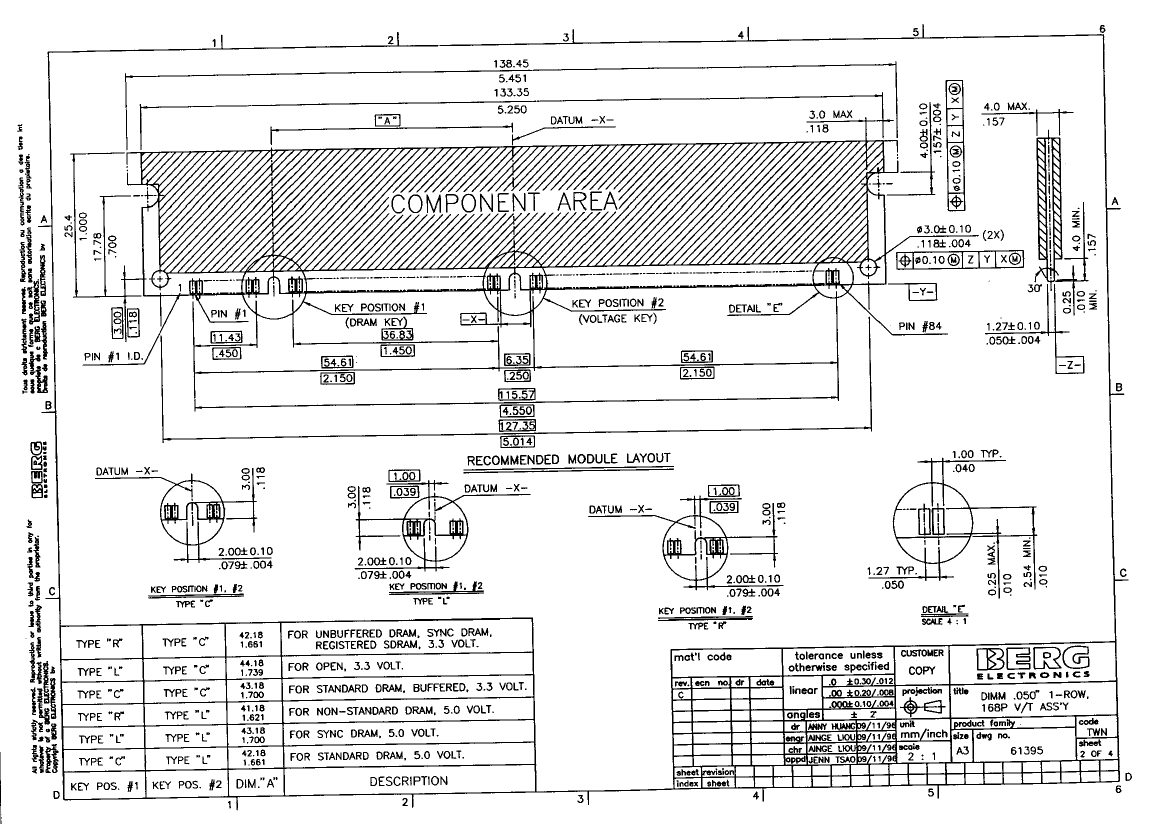

polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal length	0.124 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0

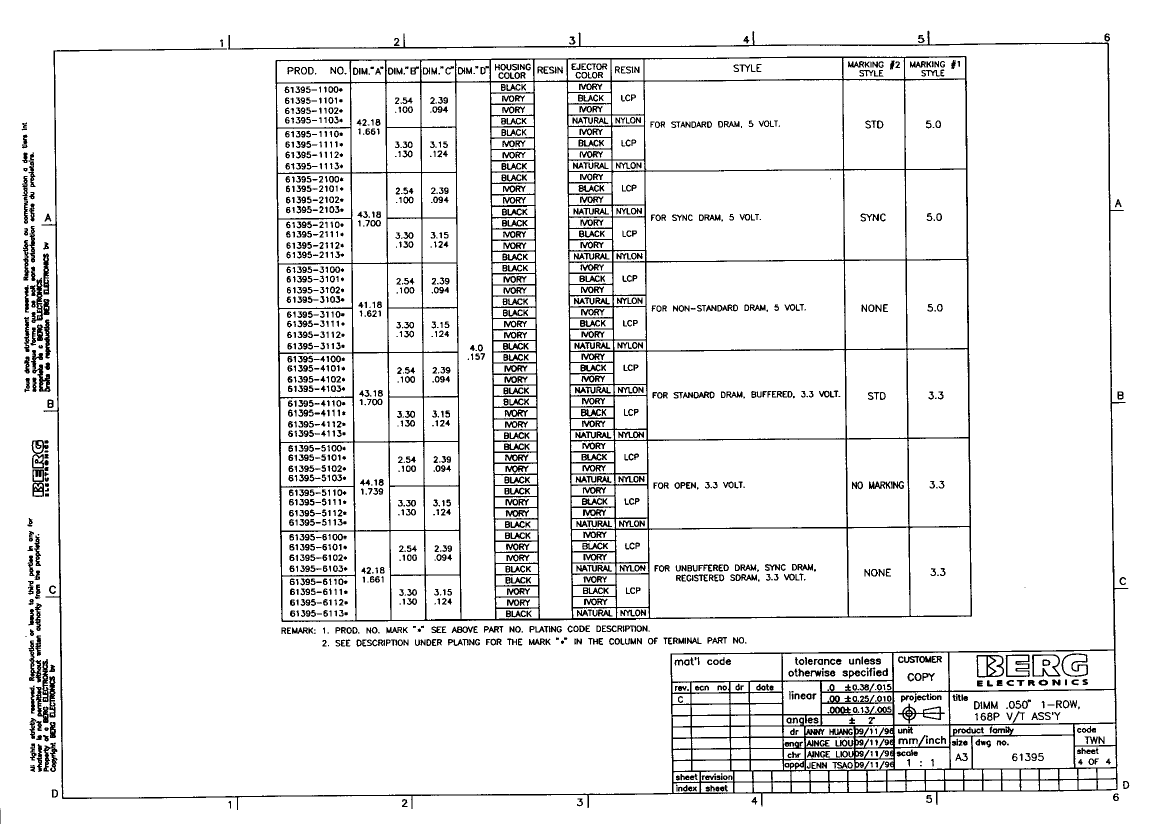

PDM: Rev:C

STATUS:

Released

Printed: Oct 17, 2003
