10126551-13233: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Latch & Eject, Black Insulator; CategoryThe connector The connector; File Size314KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10126551-13233 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Latch & Eject, Black Insulator

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.299 inch
subject depth	0.807 inch
body length	5.551 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
contact mode	RECTANGULAR
Insulator color	BLACK
Manufacturer's serial number	10126551
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	240

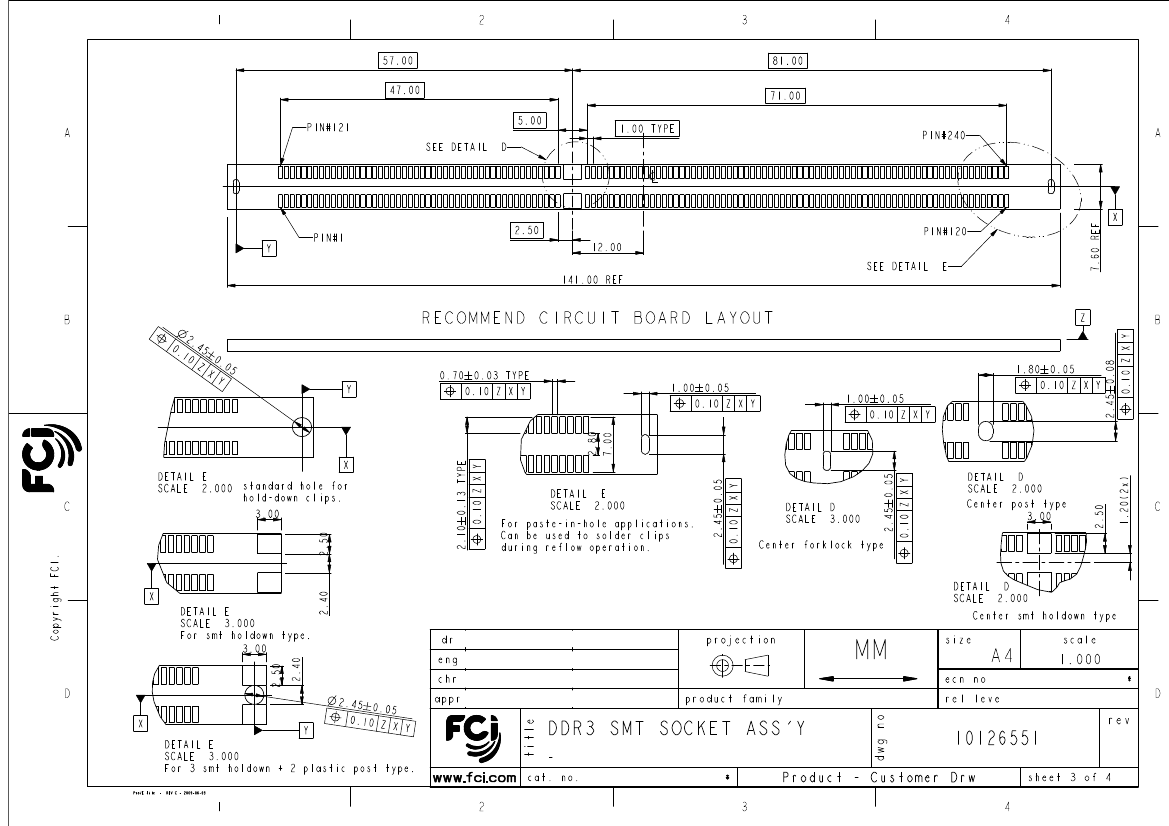

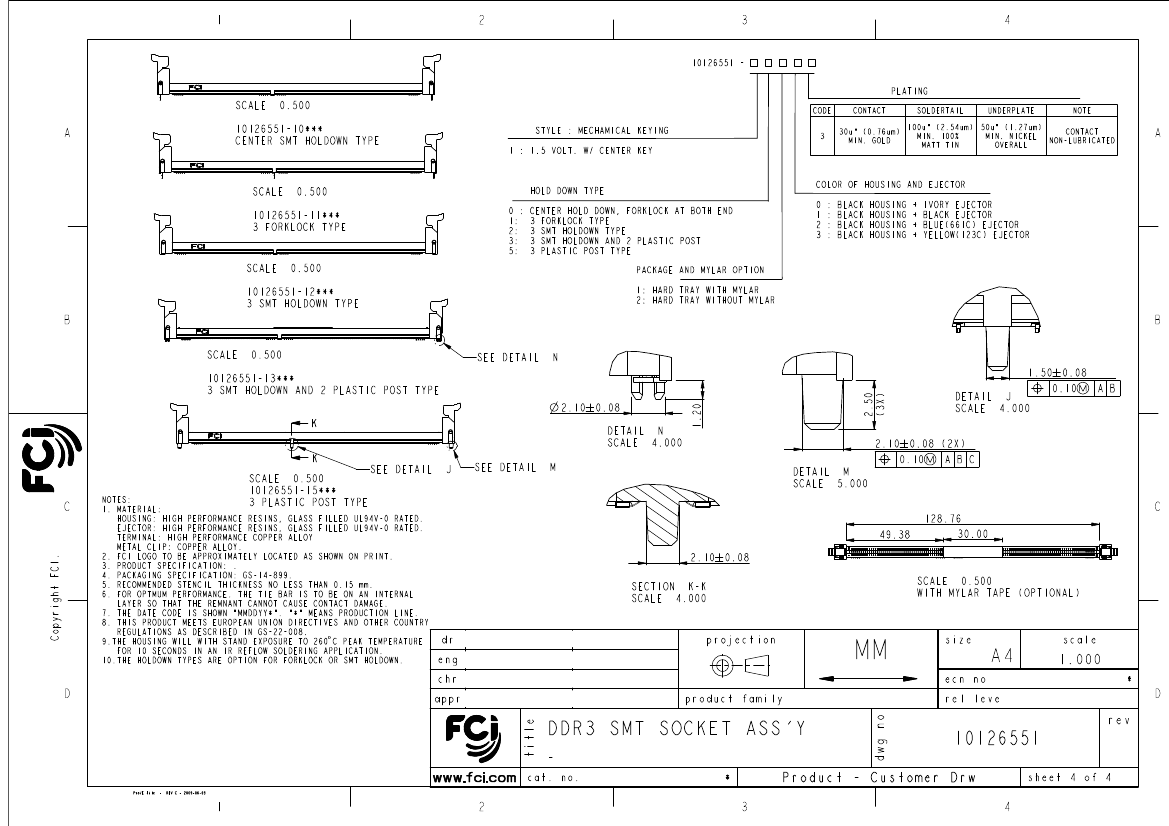

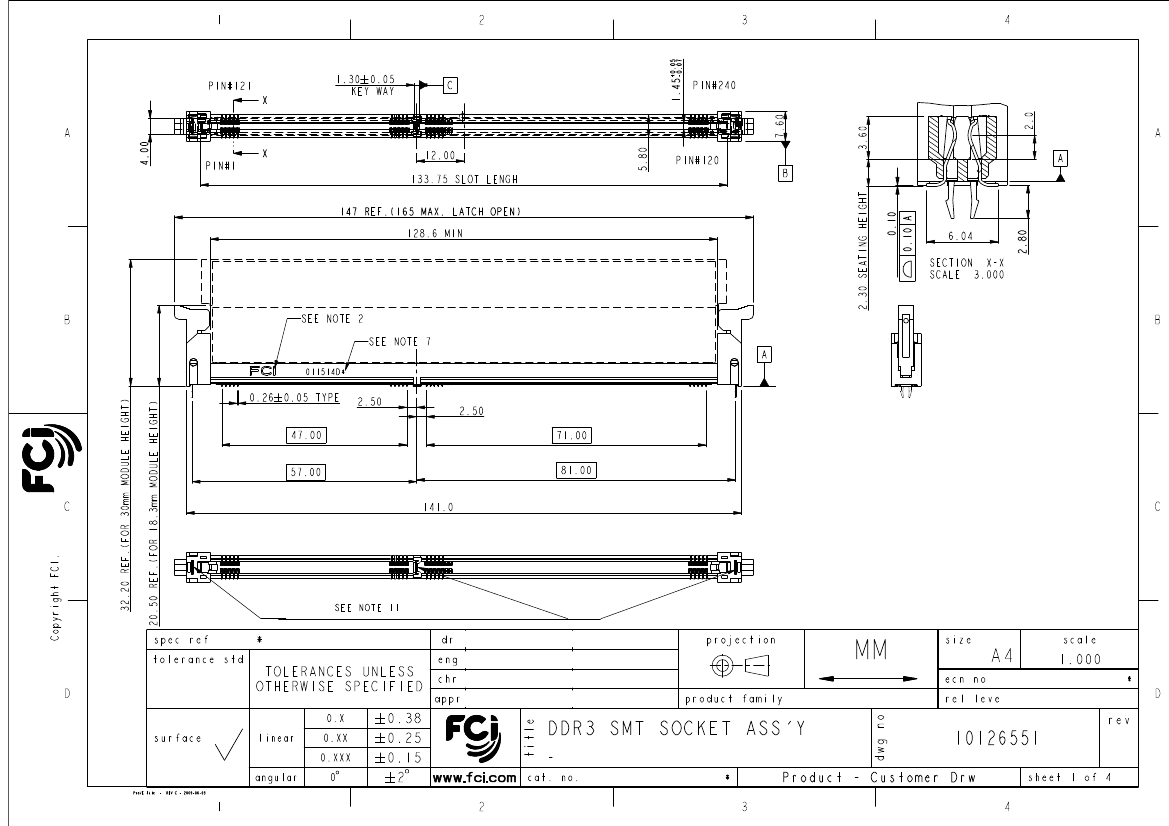

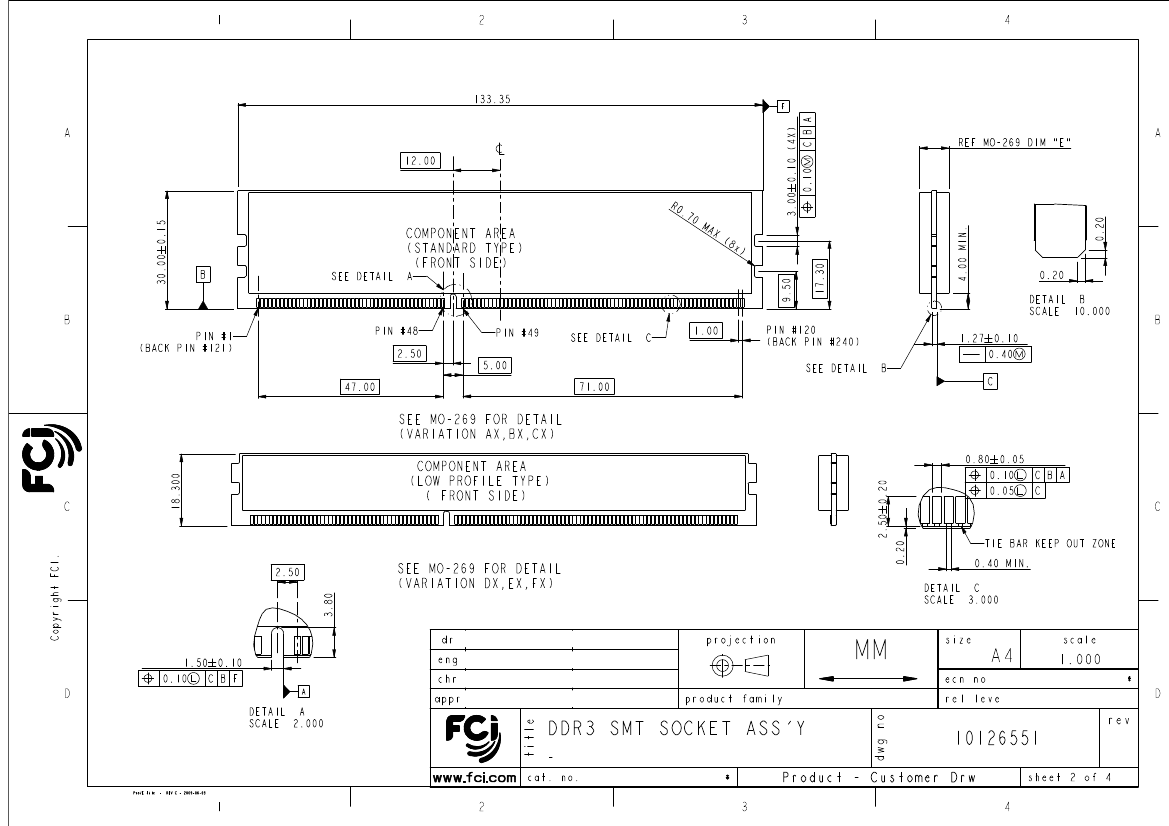

Terris Liu

-

Pei-Ming Zheng

2014/01/15

2014/01/20

-

2014/01/20

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Jan 24, 2014
