DDB-DZJS-PQ2-1: DescriptionSingle Color LED, Blue, Clear Tinted, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size942KB，12 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDB-DZJS-PQ2-1 Overview

Single Color LED, Blue, Clear Tinted, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DDB-DZJS-PQ2-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	BLUE
color@wavelength	Blue
Configuration	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.02 A
Maximum forward voltage	3.6 V
JESD-609 code	e3
Lens type	CLEAR TINTED
minimum luminous intensity	0.045 cd
Nominal luminous intensity	71.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
surface mount	YES
Terminal surface	Tin (Sn)
Terminal pitch	3 mm
perspective	120 deg

Preview

Download Datasheet

View All

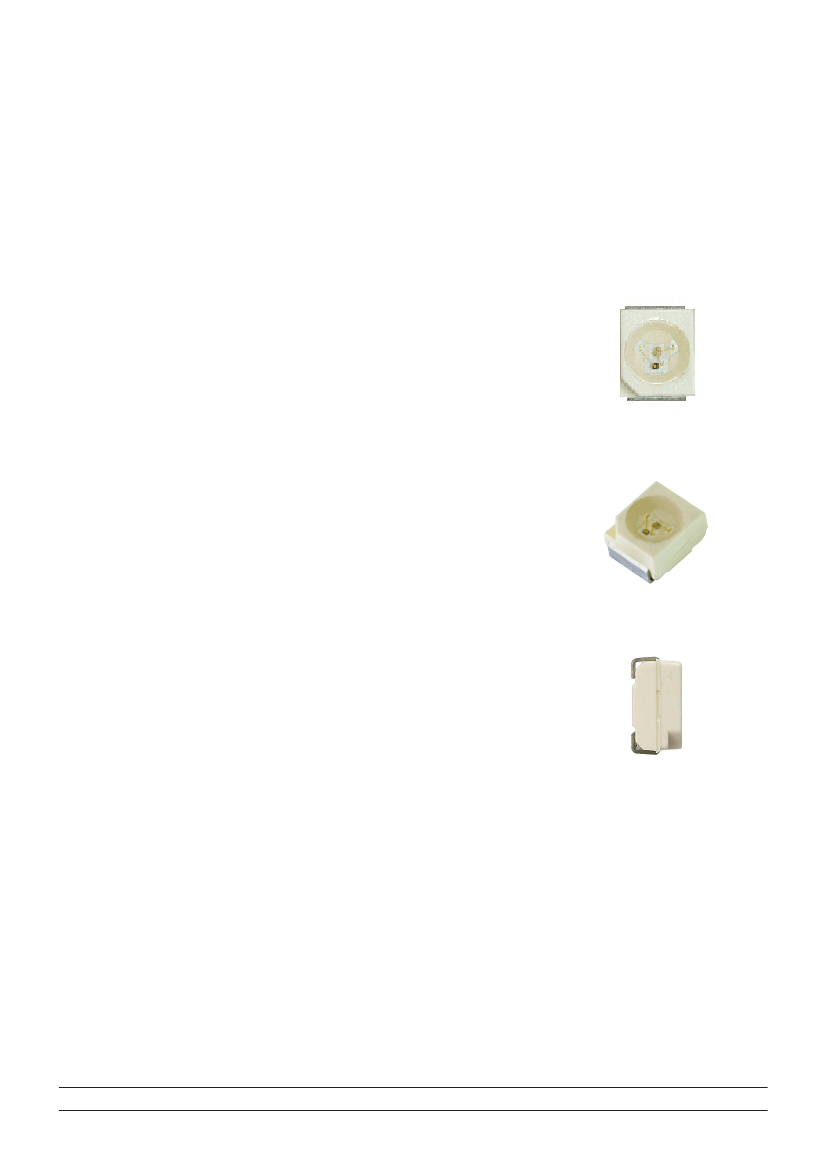

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

InGaN : DDx-DZJS

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

Based on InGaN / Sapphire technology.

120° viewing angle.

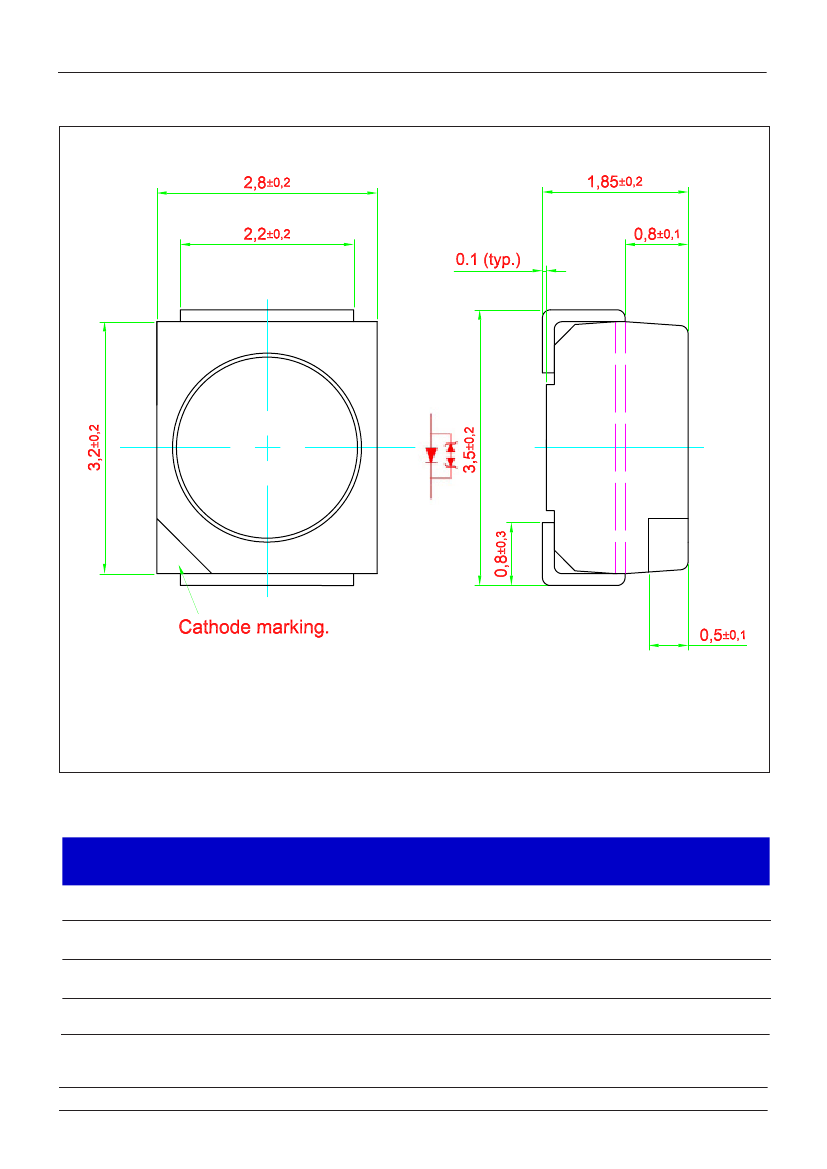

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Communication: indicator and backlight in mobile phone, flash light.

Signage: full colour display video notice board, signage, special

effect lighting.

Industrial: white goods (eg: Oven, microwave, etc.), light bar,

illuminated advertising.

06/09/2013 V7.0
