DDT-HRS-V2W-1

Description
Single Color LED, True Green, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
CategoryLED optoelectronic/LED    photoelectric
File Size967KB,12 Pages
ManufacturerDOMINANT
Websitehttp://www.dominant-semi.com/
Download Datasheet Parametric Compare View All

DDT-HRS-V2W-1 Overview

Single Color LED, True Green, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DDT-HRS-V2W-1 Parametric

Parameter NameAttribute value
MakerDOMINANT

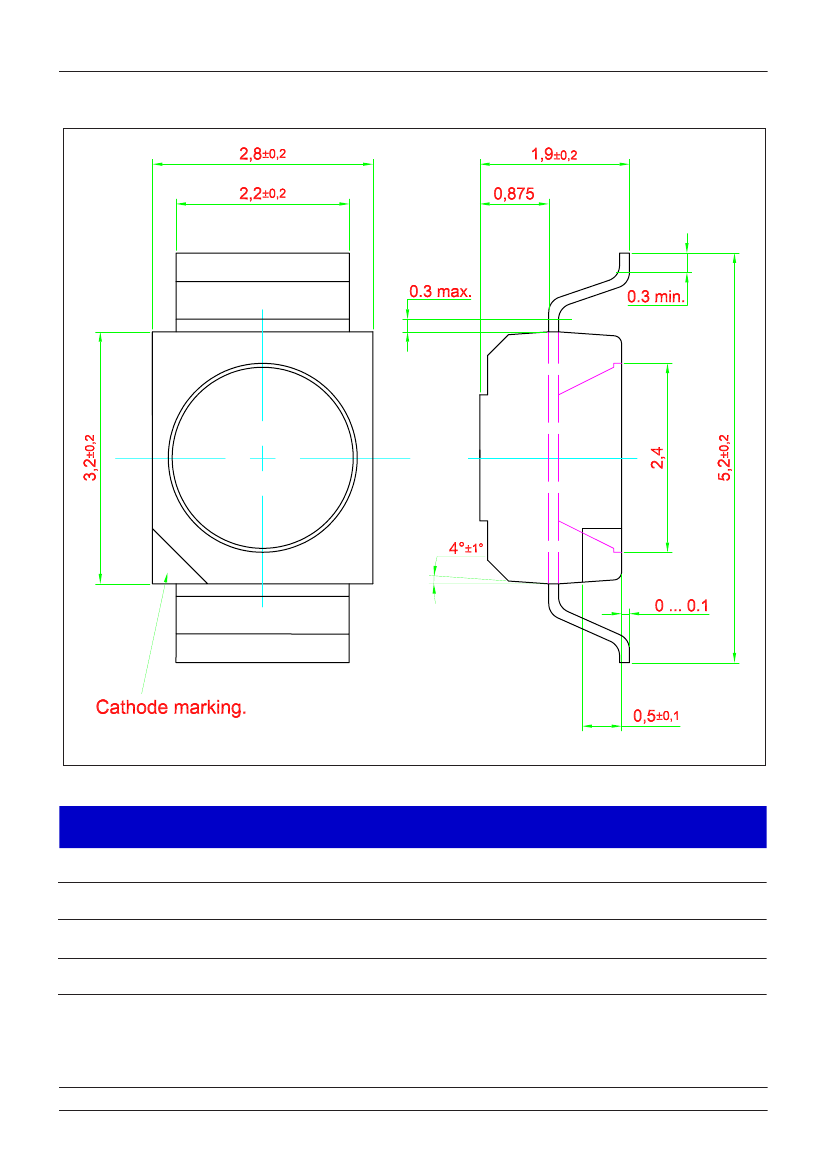

package instruction3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Codeunknown
colorTRUE GREEN
ConfigurationSINGLE
Maximum forward current0.02 A
JESD-609 codee3
Nominal luminous intensity1400.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.8 mm
method of packingTAPE AND REEL 7\"
shapeROUND
size2.4 mm
surface mountYES
Terminal surfaceTIN
Terminal pitch4.5 mm
perspective120 deg
DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
DomiLED
TM
InGaN : DDx-HRS
DomiLED
TM
TM
Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness surface mount LED.
120° viewing angle.

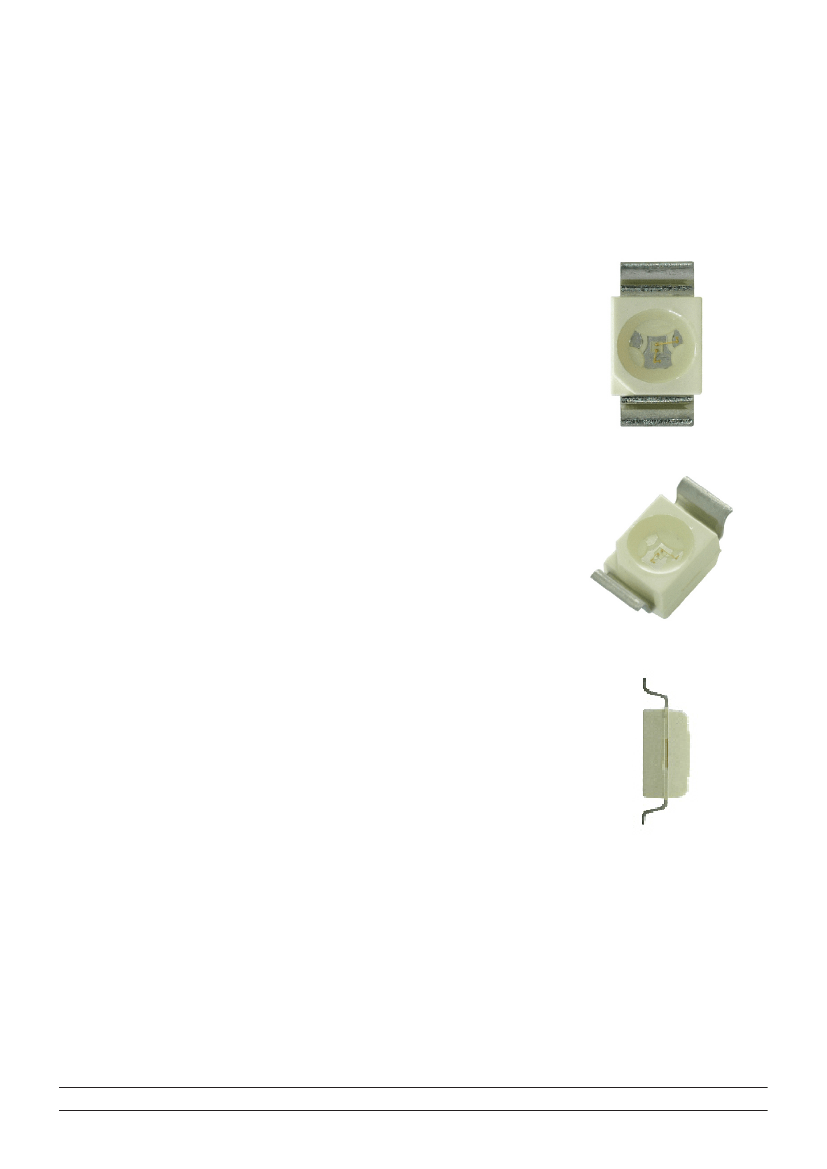

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Signage: full color display video notice board.
Industrial: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
22/06/2012 V3.0

DDT-HRS-V2W-1 Related Products

DDT-HRS-V2W-1 DDB-HRS-S2T-1
Description Single Color LED, True Green, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2 Single Color LED, Blue, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
package instruction 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code unknown unknown
color TRUE GREEN BLUE
Configuration SINGLE SINGLE
Maximum forward current 0.02 A 0.02 A
JESD-609 code e3 e3
Nominal luminous intensity 1400.0 mcd 355.0 mcd
Installation features SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1
Number of terminals 2 2
Maximum operating temperature 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED
total height 1.8 mm 1.8 mm
method of packing TAPE AND REEL 7\" TAPE AND REEL 7"
shape ROUND ROUND
size 2.4 mm 2.4 mm
surface mount YES YES
Terminal surface TIN TIN
Terminal pitch 4.5 mm 4.5 mm
perspective 120 deg 120 deg
