APA-422-G-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> APA-422-G-K

APA-422-G-K: DescriptionIC Socket, DIP22, 22 Contact(s); CategoryThe connector socket; File Size234KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

APA-422-G-K Overview

IC Socket, DIP22, 22 Contact(s)

APA-422-G-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (20) OVER NICKEL (50)
Contact completed and terminated	GOLD (20) OVER NICKEL (50)
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	DIP22
Shell material	POLYESTER
JESD-609 code	e4
Manufacturer's serial number	APA
Number of contacts	22

Preview

Download Datasheet

View All

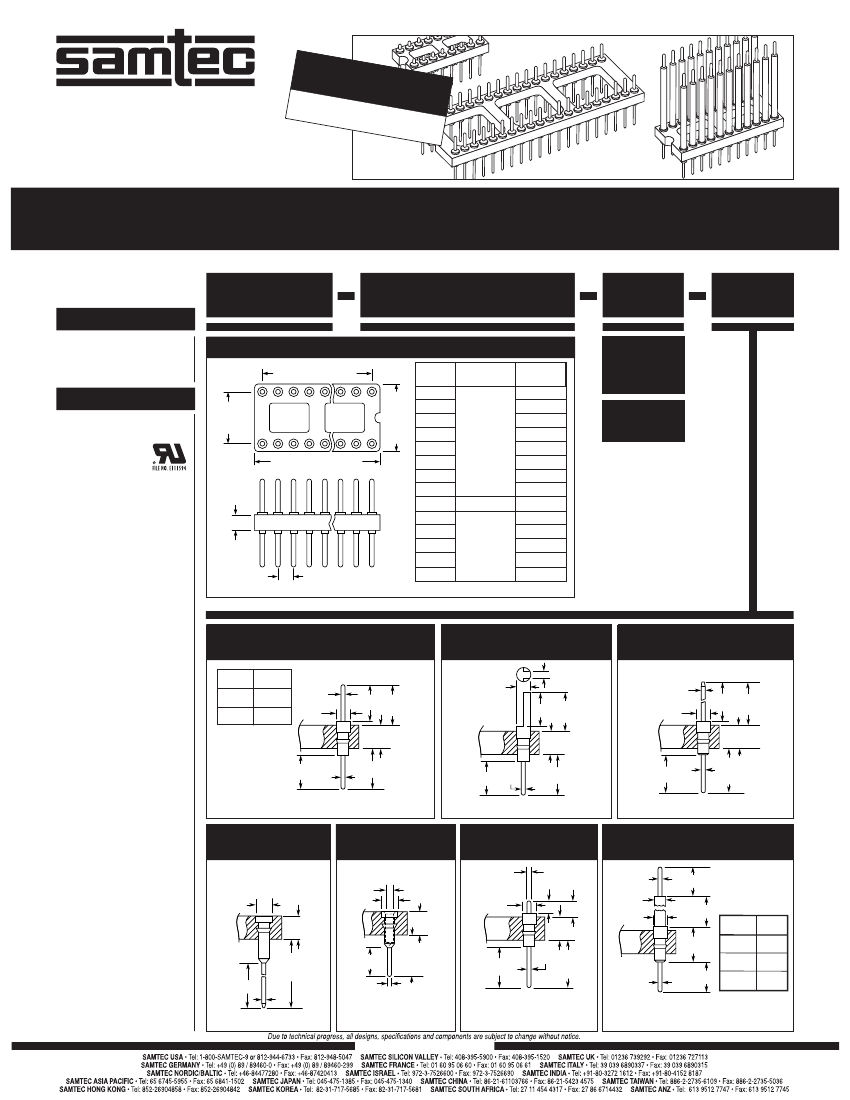

F-208 SUPPLEMENT

APA–316–G–K

MOLD

-TO-P

PROD OSITION

UCT

Minimu

may ap or set-up cha

ply. Ca

ll Samt ges

ec.

APA–640–G–A

APA–422–T–P

ADAPTOR PLUGS

APA SERIES

Mates with:

ICO, ICA, CIC

APA

ROW SPACING &

NO. OF PINS

Specify from chart below

PLATING

OPTION

LEAD

STYLE

FEATURES

• Side & end stackable

• Great for auto insertion

• Open body design

–G

No. of

Pins

= 20µ"

(0,58µm) Gold

(2,54) .100 X No. of Spaces

Row

Spacing

+(2,41)

.095

except

–H is

+ (2,54)

.100

(2,54) .100 X No. of Positions

Row

Space

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?APA

Insulator Material:

Black Glass Filled

Polyester

except -328 is LCP

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ min

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold.

Withstanding Voltage:

1000 VRMS

Terminal Material:

Brass except styles –M, –N,

–P and –Q are Phosphor

Bronze or Brass

Plating:

Au over 50µ" (1,27mm) Ni or

Sn over 100µ" (2,54mm) Cu

or 50µ" (1,27mm) Ni

Current Rating:

Terminal Retention in Body:

5 lbs (22,25N) against barb

(7,64) .300

(10,16) .400

(15,24) .600

(2,54)

.100

(2,54)

.100

–308

–314

–316

–318

.300 (7,62)

–320

–322

–324

–328

–422

.400 (10,16)

–624

–628

–632

.600 (15,24)

–640

–648

–T

= Tin

–322 has no cross bar on one end.

–A or –A1

= Round Pin

STYLE

–A

–A1

DIA

–C

= Slotted Head

(0,89)

.035

(0,64)

.025 SQ

(2,54) (3,18)

.125

.100

±.015

(2,54)

.100

(0,46)

(3,96) .018

DIA

.156

(1,78)

.070 DIA

(1,83)

.072 DIA

–D

= Wire-Wrap

(12,95) (13,46)

.530

.510

± .015

(2,54)

.100

(0,46)

(3,96) .018

.156 DIA

(4,85)

.191

± (0.38)

.015

(0,64)

.025

(0,46)

.018

(1,78)

.070

DIA

(4,22) (4,72)

.166 .186

±.015

(2,54)

.100

(3,96) (0,46)

.156 .018

DIA

(4,85) ± (0,38)

.191 .015

(4,85) ± (0,38)

.191 .015

Style A Component No. = T-1R0-

Style A1 Component No. = T-1R5-

Component No. = T-1R2-

Component No. = T-1S4-1-1

–F

= Flat-head W.W.

(1,83)

.072

DIA

(2,54)

.100

–J

= Solder Shell

(1,83)

.072 DIA

(1,07)

.042 DIA

(1,78)

.070DIA

(2,54)

.100

(5,08)

.200

± (0,38)

.015

–K

= Test Point

(0,64)

.025DIA

(1,40)

.055

(1,91)

.075

(2,54)

.100

(0,46)

.018 (4,85)

DIA .191

± (0,38

.015)

–M, –N or –P

= Interconnect Post

(0,46)

.018 DIA

(1,27)

.050 DIA

(1,78)

.070 DIA

(3,81)

.150

(3,18)

.125

Not available

with -328 body.

STYLE

–M

–N

(1,52)

.060

(4,69)

.185

(11,05)

.435

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(12,95)

.510

(15,32)

.603

± (0.38)

.015

(0,64)

.025

(3,18)

.125

(0,51)

.020 DIA

(3,96)

.156

(0,46)

.018

DIA

(3,18)

.125

–P

Component No. = T-1S2-

Component No. = S-1P1-

Component No. = T-1R15-

Component No. = T-1R14-

WWW.SAMTEC.COM
