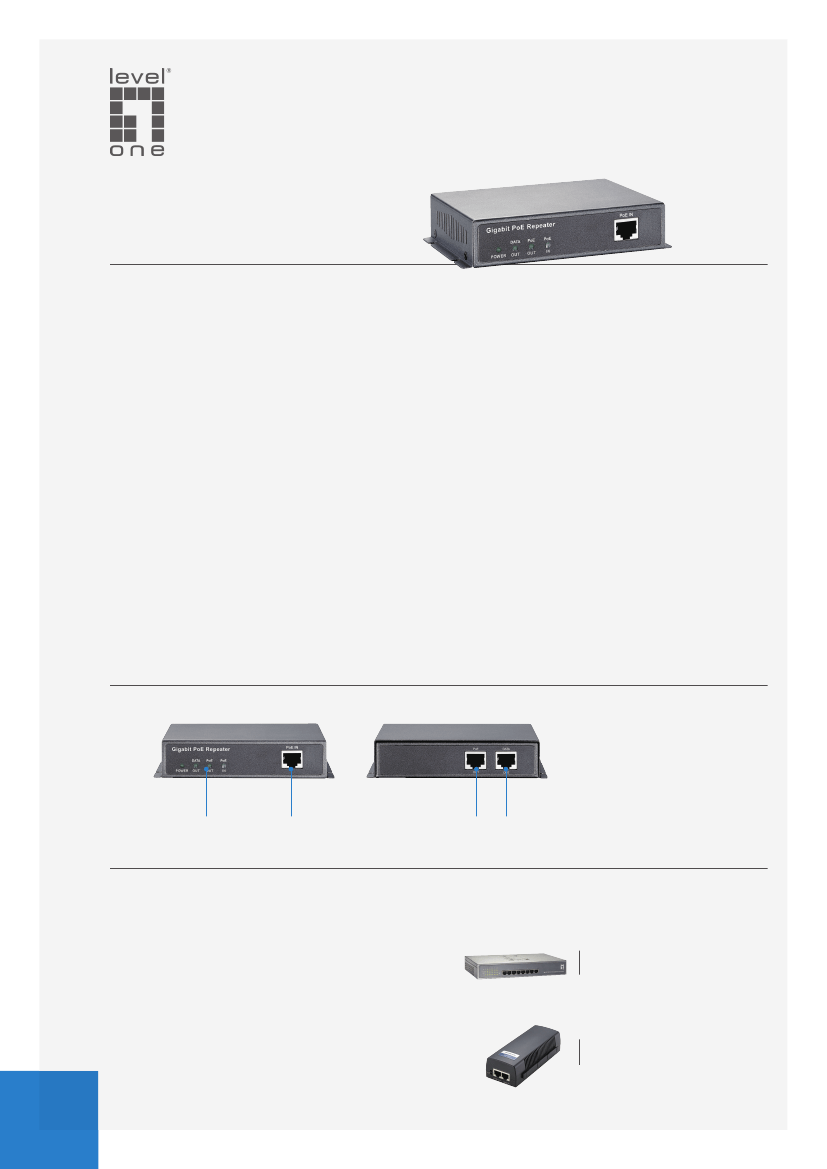

Gigabit PoE Repeater
H/W Version: 1
For system integrators looking for a professional
solution to help extend their PoE network, POR-
0120 is the perfect accessory to increase your Power
over Ethernet network performance. LevelOne POR-
0120, a 1-Port Gigabit PoE Repeater requiring neither
configuration nor electrical power, is an innovative
transmitter to pass on both data and power extend
to another100 meters. The delivery though one PoE
port and one non-PoE port are adequate to extend
network devices such as WLAN Access Points, Network
Cameras and other appliances with high-speed to the
network for greater deployment flexibility
PoE Compliance
Our device features PoE (Power-over-Ethernet)
capability, which carries electrical power along
with data in a safe way using Ethernet cabling. Thus
providing great cost savings by eliminating the need
for additional power cables and outlets. In addition,
it enhances flexibility, for instance, you can set up a
PoE wireless access point in close proximity where the
reception is better.
Easy Deployment
POR-0120
No software installation is required. Simply just plug
and play as no external power supply is needed, due
to all electrical power comes from the PSE (Power
Sending Equipment), for instance, it could be a PoE
Gigabit Ethernet Switch. Therefore the power source
is centrally managed from one location easily and
efficiently.
Scalable Design
LevelOne network devices are the perfect solution to
help you extend your existing PoE network. Normal
Ethernet cable, for example the cat5e standard, runs
up to 100 meters, but with the installation of a single
PoE repeater can increase the distance up to 200
meters. Furthermore, you can triple your range or
even more by daisy-chaining multiple PoE repeaters.
1. LED Indicators
2. RJ-45 Gigabit PoE In
3. RJ-45 Gigabit Data Out
4. RJ-45 Gigabit PoE Out
1
2
3
4
Key Features
- Extends Gigabit PoE connection for another 100
meters
- Forwards Power over Ethernet (PoE) to remote
device
- Built-in 2 output ports for 1 PoE and 1 non-PoE
devices
- No additional power supply required
- 10/100/1000Mbps wire speed transmission and
reception
- Simple Plug and Play installation
Works Well With
GEP-0822
8-Port Gigabit PoE Plus Switch
POI-3000
Gigabit PoE Plus Injector
2
www.level1.com
I
one world_one brand_one level_
PoE PD/PSE
3
Technical Specification
Ethernet Interface
IEEE 802.3x, Auto-Detection for 10/100/1000BaseT and full/half
duplex
Automatic MDI/MDIX function
PoE Input Port: RJ-45 Connector x 1
PoE Output Port: RJ-45 Connector x 1
Power Supply
Power over Ethernet
Maximum Power Dissipation: 2.5 Watts
Led Indicators
POWER: Power is ON
POE IN: Gigabit Port with PoE IN
POE OUT1: Gigabit Port
POE OUT2: Gigabit Port with PoE OUT
Product Diagram
Ethernet Cable (RJ-45)
PoE
Power Consumption
2.5 Watts (Max)
Dimensions
120 × 90 × 28 mm (L x D x H)
Weight
0.35 kg
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 90°C
Humidity
5 to 95% RH (non-condensing)
Certifications
FCC Rules Part 15, CE
100m
POR-0120
100m
10/100/1000M LAN
10/100/1000M LAN
PoE Device
(17.5W max)
PoE Gigabit Ethernet Switch
802.3at (30W)
100m
10/100/1000M LAN
Non-PoE Device
Order Information
Package Contents
POR-0120:
Gigabit PoE Repeater
POR-0120
Quick Installation Guide
