PBYR12040T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PBYR12040T

PBYR12040T: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 40V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size238KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

PBYR12040T Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 40V V(RRM), Silicon

PBYR12040T Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-XUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.96 V
JESD-30 code	R-XUFM-D4
Maximum non-repetitive peak forward current	720 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	60 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	SOLDER LUG
Terminal location	UPPER

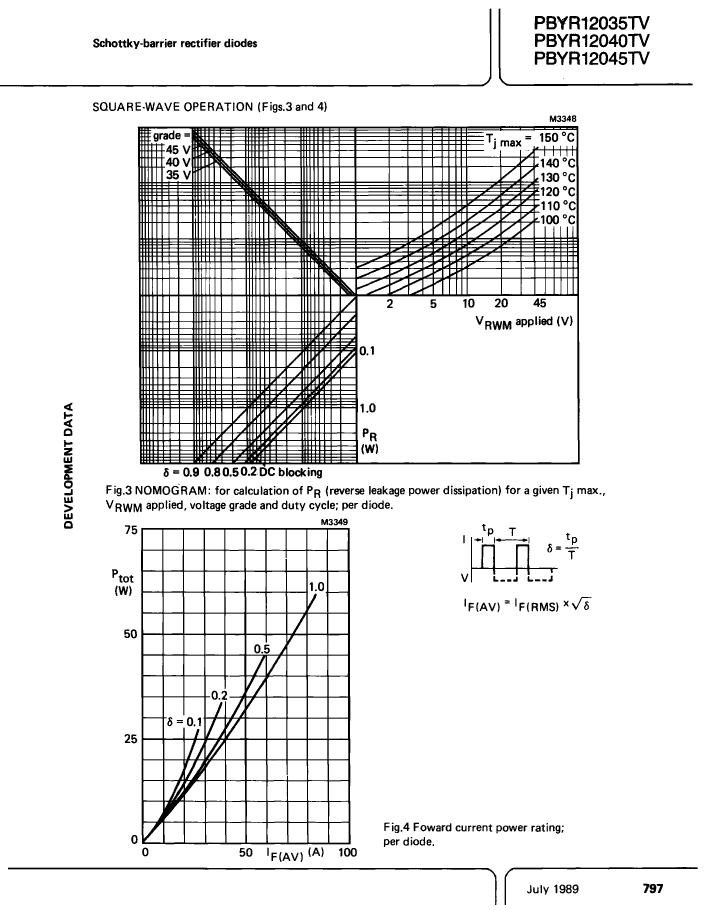

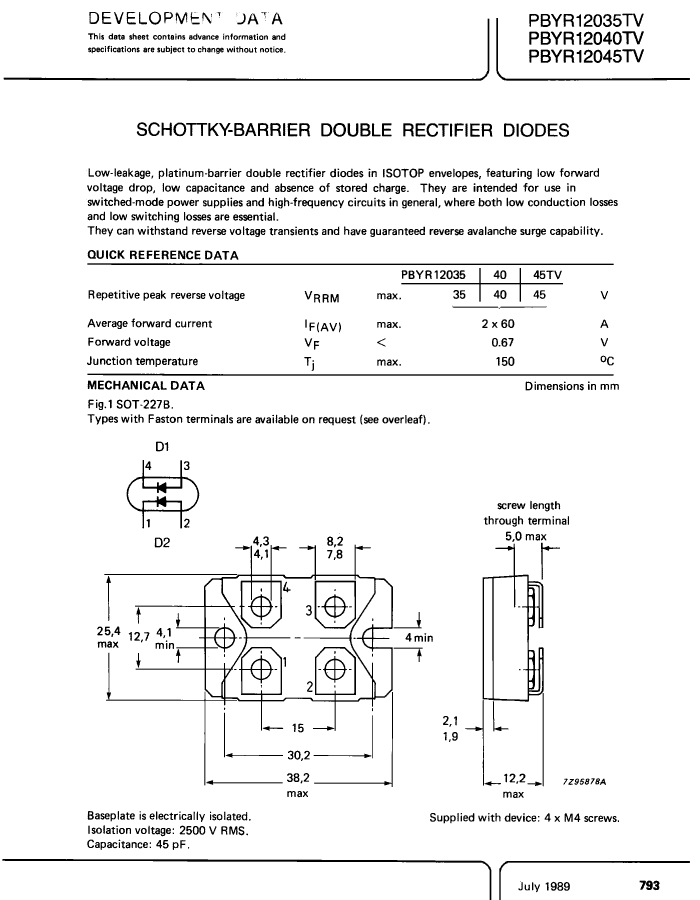

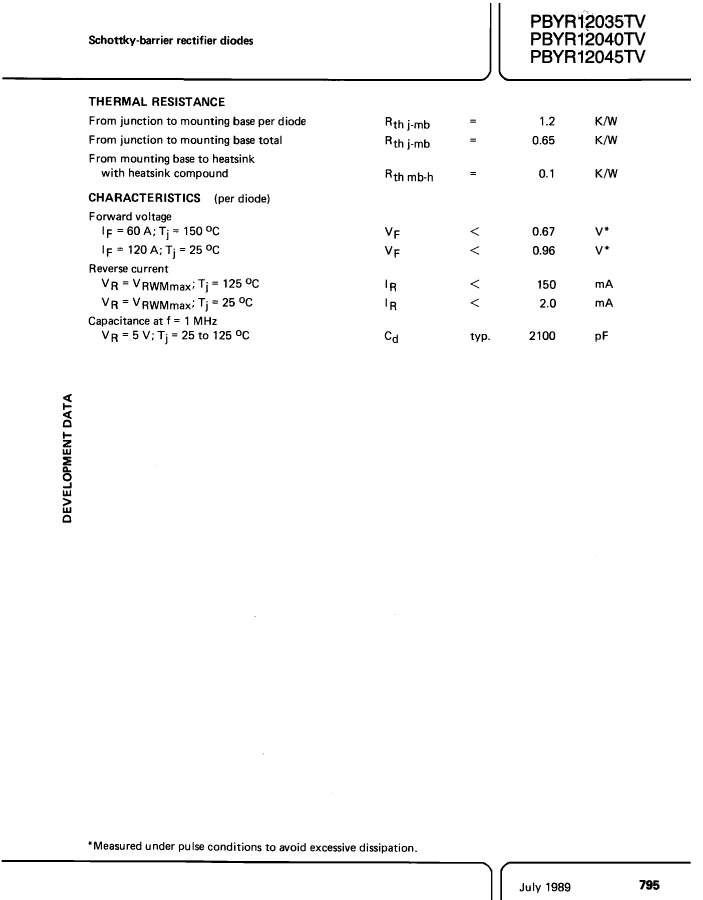

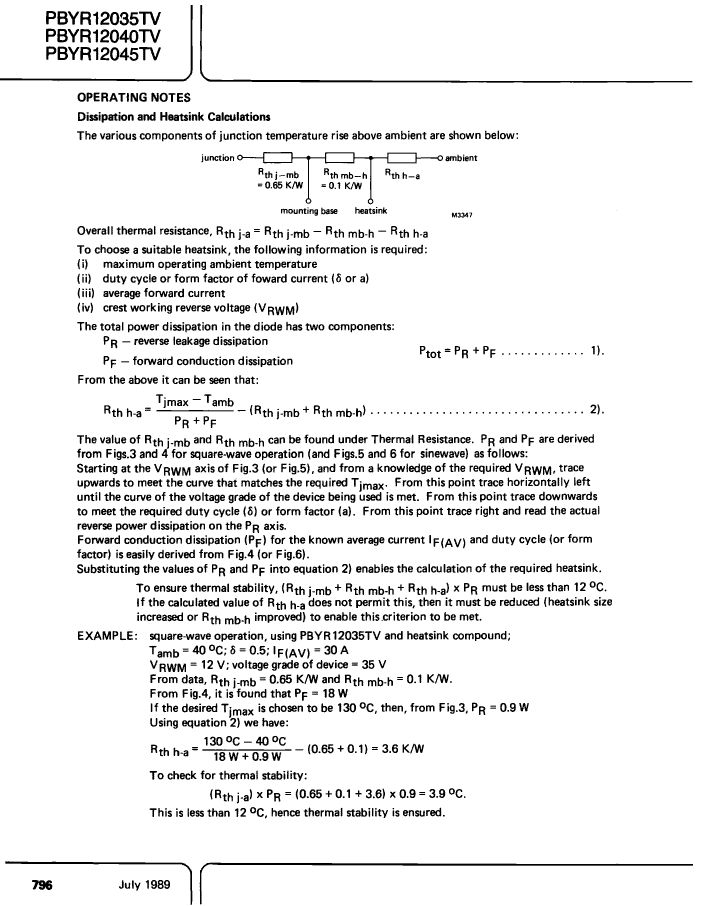

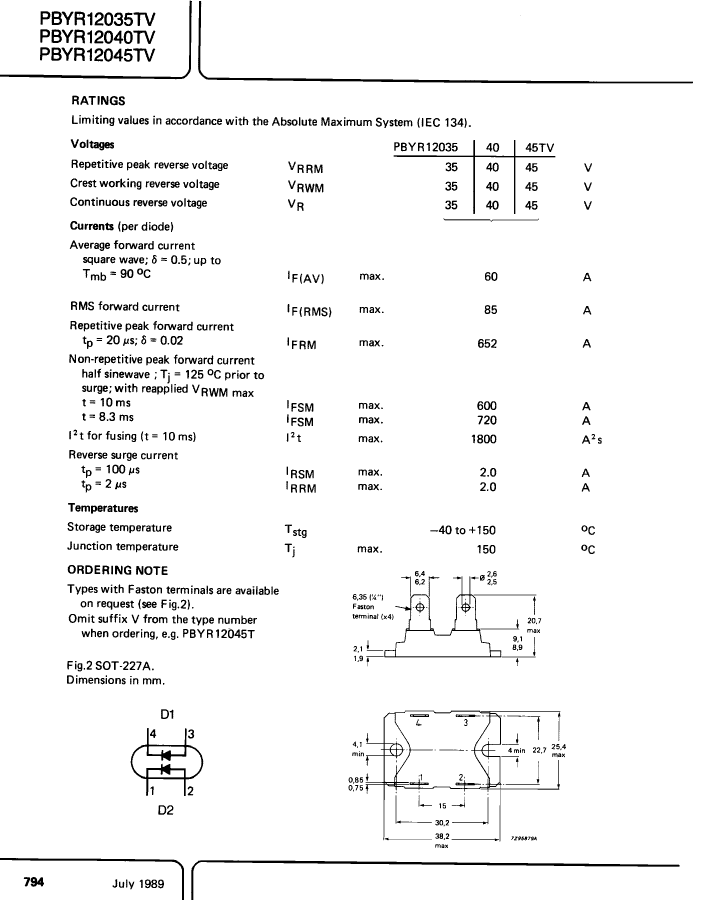

Preview

Download Datasheet

View All

PBYR12040T Related Products

	PBYR12040T	PBYR12045T	PBYR12045TV	PBYR12035TV	PBYR12035T	PBYR12040TV
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 40V V(RRM), Silicon
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V
JESD-30 code	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4
Maximum non-repetitive peak forward current	720 A	720 A	720 A	720 A	720 A	720 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	60 A	60 A	60 A	60 A	60 A	60 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	45 V	45 V	35 V	35 V	40 V
Maximum reverse current	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
